KD2X0 Series Forklift Controller
Integrated Traction Control Unit | Exclusively Built for Forklifts & Industrial Vehicles
KD2X0 Series Forklift Controller
Developed by Kinco, the KD2X0 series constitutes a new-generation DC sensorless traction drive platform. It is designed for battery-powered industrial applications, including unmanned transport vehicles, automated forklifts, aerial work platforms and tracked robotic drives.

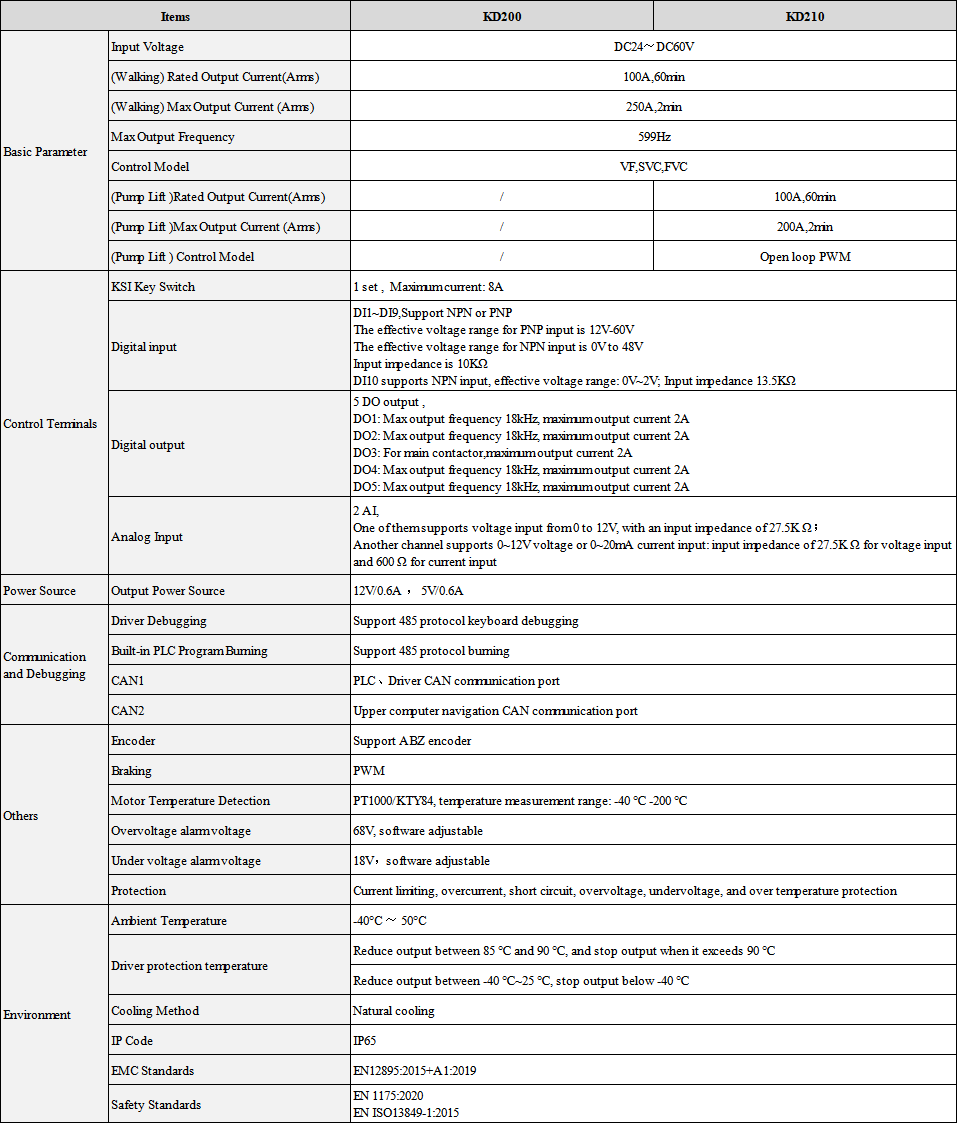

| Items | KD200 | KD210 | |
| Basic Parameter | Input Voltage | DC24～DC60V | |
| (Walking) Rated Output Current(Arms) | 100A,60min | ||
| (Walking) Max Output Current (Arms) | 250A,2min | ||
| Max Output Frequency | 599Hz | ||
| Control Model | VF,SVC,FVC | ||
| (Pump Lift )Rated Output Current(Arms) | / | 100A,60min | |
| (Pump Lift )Max Output Current (Arms) | / | 200A,2min | |
| (Pump Lift ) Control Model | / | Open loop PWM | |
| Control Terminals | KSI Key Switch | 1 set , Maximum current: 8A | |
| Digital input | DI1~DI9,Support NPN or PNP The effective voltage range for PNP input is 12V-60V The effective voltage range for NPN input is 0V to 48V Input impedance is 10KΩ DI10 supports NPN input, effective voltage range: 0V~2V; Input impedance 13.5KΩ |
||
| Digital output | 5 DO output , DO1: Max output frequency 18kHz, maximum output current 2A DO2: Max output frequency 18kHz, maximum output current 2A DO3: For main contactor,maximum output current 2A DO4: Max output frequency 18kHz, maximum output current 2A DO5: Max output frequency 18kHz, maximum output current 2A |
||
| Analog Input | 2 AI, One of them supports voltage input from 0 to 12V, with an input impedance of 27.5K Ω； Another channel supports 0~12V voltage or 0~20mA current input: input impedance of 27.5K Ω for voltage input and 600 Ω for current input |
||
| Power Source | Output Power Source | 12V/0.6A ， 5V/0.6A | |
| Communication and Debugging | Driver Debugging | Support 485 protocol keyboard debugging | |
| Built-in PLC Program Burning | Support 485 protocol burning | ||
| CAN1 | PLC、Driver CAN communication port | ||
| CAN2 | Upper computer navigation CAN communication port | ||
| Others | Encoder | Support ABZ encoder | |
| Braking | PWM | ||
| Motor Temperature Detection | PT1000/KTY84, temperature measurement range: -40 ℃ -200 ℃ | ||
| Overvoltage alarm voltage | 68V, software adjustable | ||
| Under voltage alarm voltage | 18V，software adjustable | ||
| Protection | Current limiting, overcurrent, short circuit, overvoltage, undervoltage, and over temperature protection | ||
| Environment | Ambient Temperature | -40°C ～ 50°C | |
| Driver protection temperature | Reduce output between 85 ℃ and 90 ℃, and stop output when it exceeds 90 ℃ | ||
| Reduce output between -40 ℃~25 ℃, stop output below -40 ℃ | |||
| Cooling Method | Natural cooling | ||
| IP Code | IP65 | ||
| EMC Standards | EN12895:2015+A1:2019 | ||
| Safety Standards | EN 1175:2020 EN ISO13849-1:2015 |
||
