JD Series AC Servo Drive
EU-Standard Terminal Architecture | No Pre-Welding Required, Simplified Field Wiring
JD Series AC Servo Drive
The JD Series AC servo drive adopts an EU-standard terminal architecture that eliminates wire pre-welding and simplifies on-site wiring.
Designed for precise and responsive motion control, this high-performance servo motor driver supports a wide range of industrial automation equipment, including packaging machinery, CNC machine tools, textile equipment, industrial robots, laser processing equipment, electronics production equipment, and plastic molding machinery.

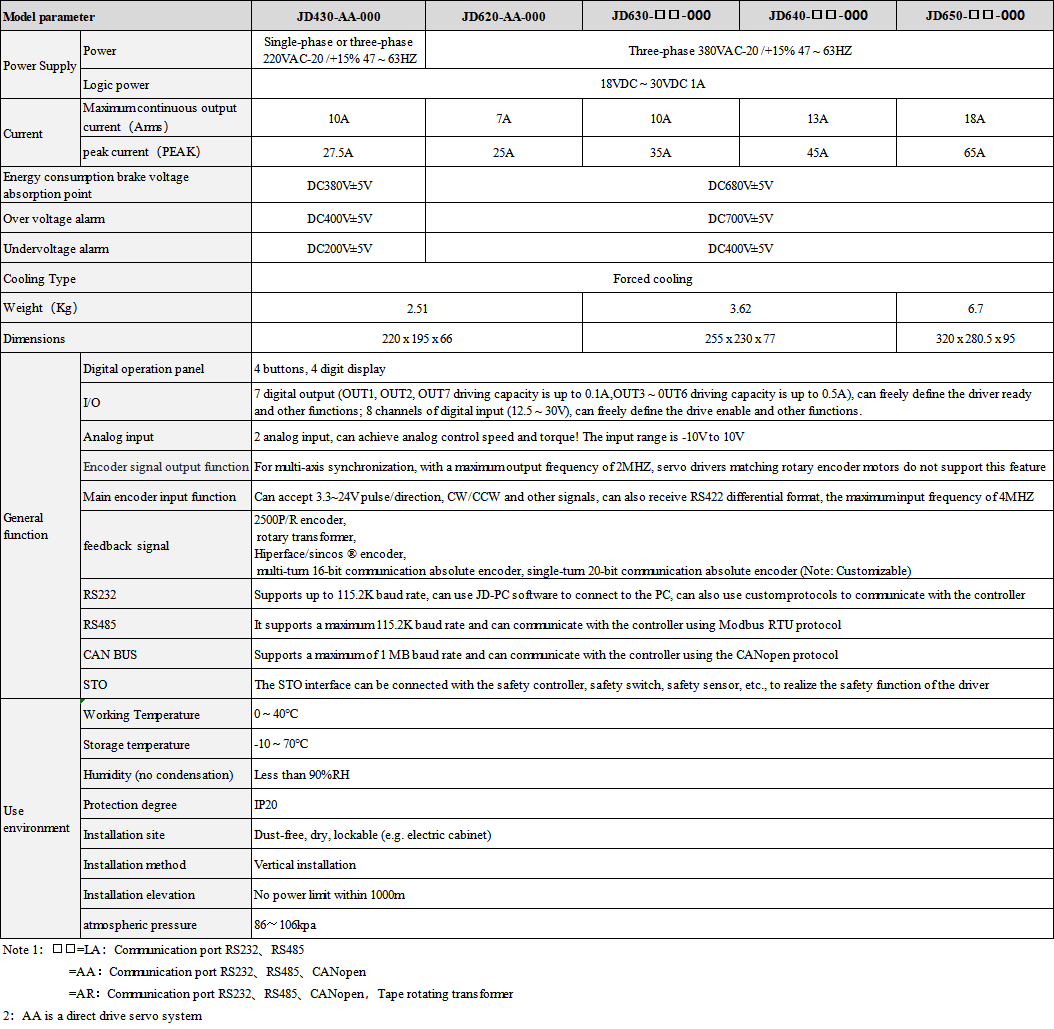

| Model parameter | JD430-AA-000 | JD620-AA-000 | JD630-□□-000 | JD640-□□-000 | JD650-□□-000 | |
| Power Supply | Power | Single-phase or three-phase 220VAC-20 /+15% 47 ~ 63HZ |
Three-phase 380VAC-20 /+15% 47 ~ 63HZ | |||
| Logic power | 18VDC～30VDC 1A | |||||
| Current | Maximum continuous output current（Arms） | 10A | 7A | 10A | 13A | 18A |
| Peak current（PEAK） | 27.5AP | 25AP | 35AP | 45AP | 65AP | |
| Energy consumption brake voltage absorption point | DC380V±5V | DC680V±5V | ||||
| Over voltage alarm | DC400V±5V | DC700V±5V | ||||
| Undervoltage alarm | DC200V±5V | DC400V±5V | ||||
| Cooling Type | Forced cooling | |||||
| Weight（Kg） | 2.51 | 3.62 | 6.7 | |||
| Dimension | 220*195*66 mm | 255*230*77mm | 320*280.5*95 mm | |||
| General function | Digital operation panel | 4 buttons, 4 digit display | ||||
| I/O | 7 digital output (OUT1, OUT2, OUT7 driving capacity is up to 0.1A,OUT3 ~ 0UT6 driving capacity is up to 0.5A), can freely define the driver ready and other functions; 8 channels of digital input (12.5 ~ 30V), can freely define the drive enable and other functions. | |||||
| Analog input | 2 analog input, can achieve analog control speed and torque! The input range is -10V to 10V | |||||
| Encoder signal output function | For multi-axis synchronization, with a maximum output frequency of 2MHZ, servo drivers matching rotary encoder motors do not support this feature | |||||
| Main encoder input function | Can accept 3.3~24V pulse/direction, CW/CCW and other signals, can also receive RS422 differential format, the maximum input frequency of 4MHZ | |||||
| Feedback signal | 2500P/R encoder, rotary transformer, Hiperface/sincos ® encoder, multi-turn 16-bit communication absolute encoder, single-turn 20-bit communication absolute encoder (Note: Customizable) |
|||||
| RS232 | Supports up to 115.2K baud rate, can use JD-PC software to connect to the PC, can also use custom protocols to communicate with the controller | |||||
| RS485 | It supports a maximum 115.2K baud rate and can communicate with the controller using Modbus RTU protocol | |||||
| CANopen | Supports a maximum of 1 MB baud rate and can communicate with the controller using the CANopen protocol | |||||
| STO | The STO interface can be connected with the safety controller, safety switch, safety sensor, etc., to realize the safety function of the drive | |||||
| Use environment | Working temperature | 0℃～40℃ | ||||
| Storage temperature | -10℃～70℃ | |||||
| Humidity (no condensation) | Less than 90%RH | |||||
| Protection degree | IP20 | |||||
| Installation site | Dust-free, dry, lockable (e.g. electric cabinet) | |||||
| Installation method | Vertical installation | |||||
| Installation elevation | No power limit within 1000m | |||||
| Atmospheric pressure | 86～106kpa | |||||

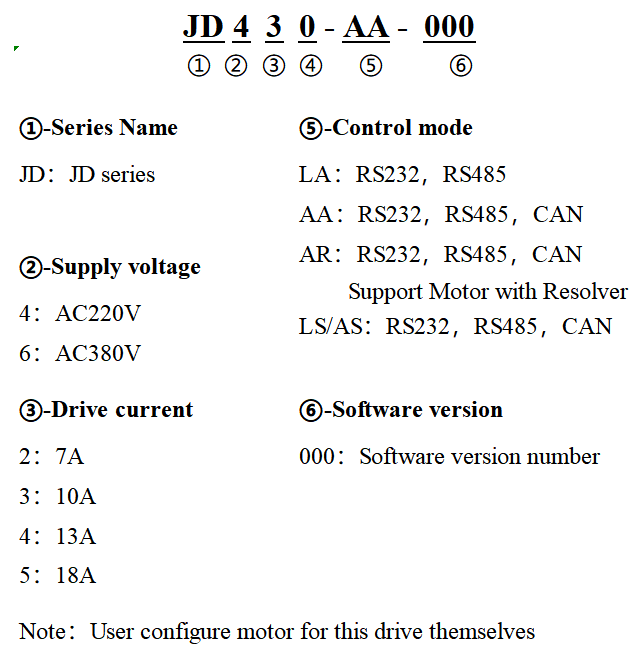

| Note1：□□ =LA：Communication port RS232、RS485 =AA：Communication port RS232、RS485、CANopen =AR：Communication port RS232、RS485、CANopen，Tape rotating transformer Note2：AA is a direct drive servo system |
||||||
