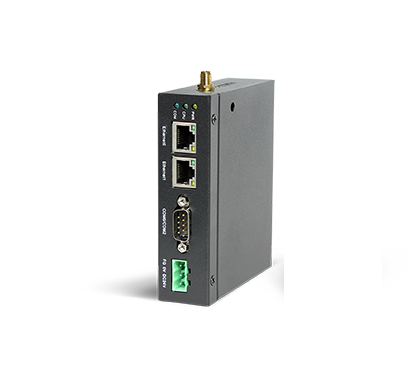

IoT Gateway Series (GW)
IoT Gateway Series (GW)
Product Model
GW01-WIFI
Add comparison
Cancel comparison
GW01-4G
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
-
-
Display Area (W x H)
-
-
Resolution
-
-
Colors
-
-
Viewing Angle (T/B/L/R)
-
-
Contrast Ratio
-
-
Backlight
-
-
Brightness
-
-
Backlight Life Time
-
-
Touch Panel
Fold up
Expand
Touch Panel
-
-
Processor
Fold up
Expand
CPU
ARM RISC32Bit 800MHz
ARM RISC32Bit 800MHz
GPU
-
-
NPU
-
-
Memory
Fold up
Expand
RAM
128M
128M
Flash Memory
256M
256M
Interfaces
Fold up
Expand
USB Host
-
-
USB Slave
1
1
Ethernet
2
2
Communication Port
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
4G
-
LTE-FDD Band 1/3/5/8,
LTE-TDD Band 34/38/39/40/41
UMTS Band 1/8
GSM Band 3/8
Wi-Fi
IEE802.11 b/g/n
-
Audio Interface
-
-
Other Interfaces
-
-
HDMI
-
-
RFID
-
-
Programmable Keys
-
-
Selector Switch
-
-
Emergenccy Stop
-
-
Grip Switch
-
-
LED Indicator
-
-
Electrical
Fold up
Expand
Input Power
DC12V-28V
DC12V-28V
Power Consumption
1.5W@24VDC
1.5W@24VDC
Voltage Interruption Immunity
<3ms
<3ms
Insulation Resistance
Over 50MΩ@500V DC500
Over 50MΩ@500V DC500
Dielectric Resistance
500 VAC 1 minute
500 VAC 1 minute
Mechanical
Fold up
Expand
Enclosure
Metal
Metal
Dimensions (W x H x D)
112 x 94 x 30 mm
112 x 94 x 30 mm
Cut-out Dimensions
-
-
Mounting
DIN rail mounting (35 mm)
DIN rail mounting (35 mm)
Cable
-
-
Mounting Accessories
-
-
Environmental
Fold up
Expand
Operating Temperature
-10~55°C
-10~55°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Natural air circulation
Protection
Fold up
Expand
Power Isolation
Yes
Yes
Serial Port Isolation
-
-
PCB Coating
-
-
Protection Grade
IP20
IP20
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
UL Certificate
-
-
Software
Fold up
Expand
Configuration Software
Kinco DTools
Kinco DTools
Remote Maintenance Platform
EdgeAccess1.0
EdgeAccess1.0
