Industrial WEB Panels

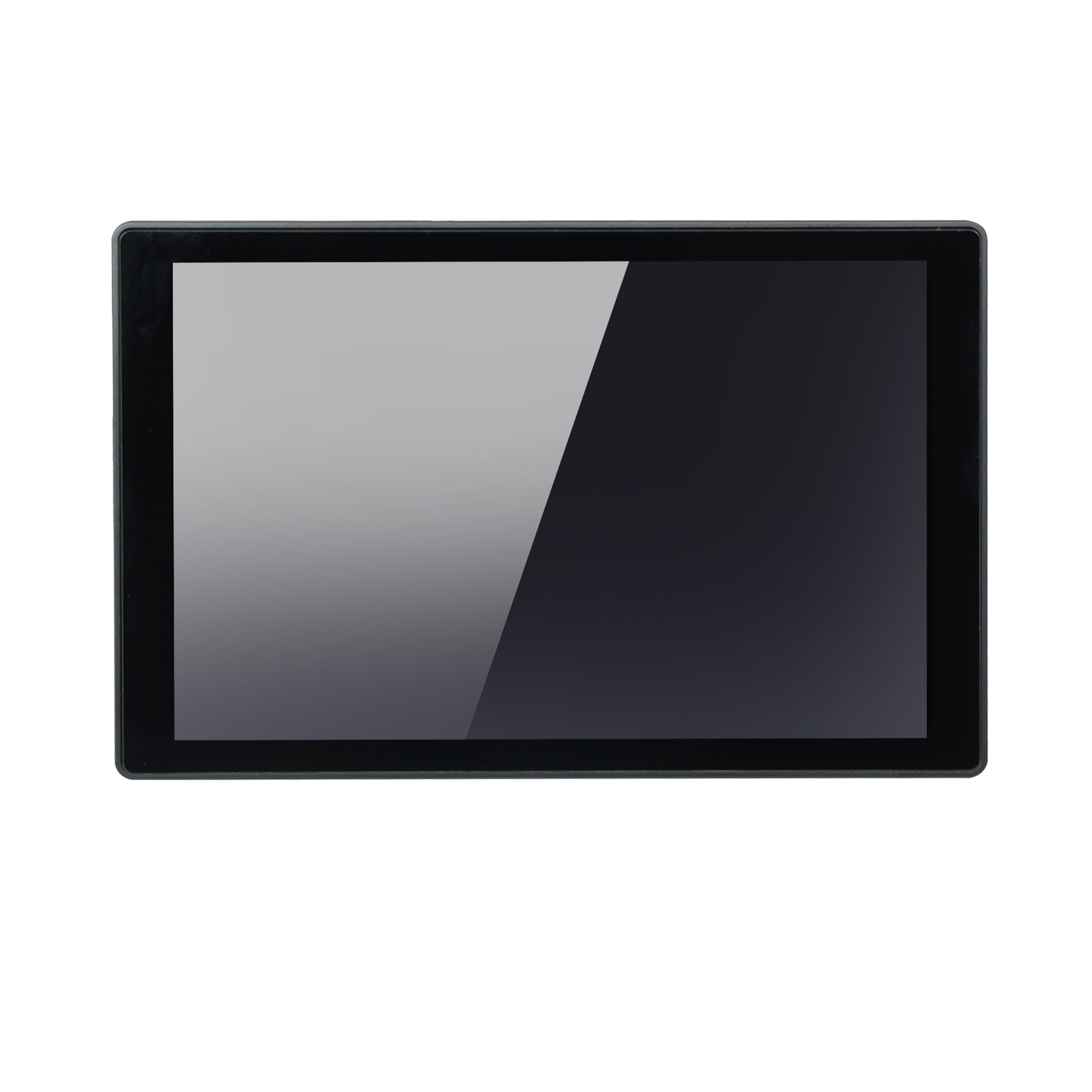

15.6-inch high-definition capacitive touch screen octa-core powerfulindustrial terminal, built exclusively for self-developed WEB browser
Future Series II Enhanced Capacitive Touch Screen
15.6-inch HD capacitive touch screen with 16.77 million true colors.
Octa-core processor up to 2.2GHz with built-in GPU and NPU, supporting 3D complex scenes.
Equipped with 3 serial ports, dual Ethernet ports, metal body, three-proof design and power isolation.
Built-in browser supports 3D display, virtual keyboard, full screen and gesture operation.
Supports security certificate import, multi-server preset and custom boot screen.
Product Model
IWP100 Pro
Add comparison
Cancel comparison
IWP156 Ultra
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
10.1"
15.6"
Display Area (W x H)
216.58 x 135.36 mm
344.16 x 193.59 mm
Resolution
1280*800
1920*1080
Colors
16.7 million
16.7 million
Viewing Angle (T/B/L/R)
80/80/80/80
89/89/89/89
Contrast Ratio
800:1
1000:1
Backlight
LED
LED
Brightness
350 cd/m²
300 cd/m²
Backlight Life Time
50000 hours
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
Tempered glass, capacitive type
Tempered glass, capacitive type
Processor
Fold up
Expand
CPU
ARM Cortex-A55 Quad-core 1.8GHz
Octa-core (Quad-core Cortex-A72 + Quad-core Cortex-A53) with a maximum frequency of 2.2 GHz
GPU
-
ARM G52 MC3
NPU
-
6TOPS
Memory
Fold up
Expand
RAM
1GB
4GB
Flash Memory
8GB
32GB
Interfaces
Fold up
Expand
USB Host
1
1
USB Slave
-
1
Ethernet
2
2
Communication Port
COM0:RS232/RS485/RS422;COM1:RS485
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
4G
-
-
Wi-Fi
-
-
Audio Interface
1
-
Other Interfaces
-
-
HDMI
-
-
RFID
-
-
Programmable Keys
-
-
Selector Switch
-
-
Emergenccy Stop
-
-
Grip Switch
-
-
LED Indicator
-
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
DC18V-28V
Power Consumption
7W@24VDC
15W@24VDC
Voltage Interruption Immunity
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Metal
Metal
Dimensions (W x H x D)
249 x 159 x 32.5 mm
395 x 259 x 25.5 mm
Cut-out Dimensions
192 x 138 mm
382 x 246 mm
Mounting
Panel mounting & VESA mounting（75 x 75 mm）
Panel mounting & VESA mounting (100 x 100 mm)
Cable
-
-
Mounting Accessories
-
-
Environmental
Fold up
Expand
Operating Temperature
-10~60°C
-10~60°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Natural air circulation
Protection
Fold up
Expand
Power Isolation
Yes
Yes
Serial Port Isolation
-
-
PCB Coating
Yes
Yes
Protection Grade
Front panel: IP65
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
-
Software
Fold up
Expand
Configuration Software
WEB
WEB
Remote Maintenance Platform
-
-
