Handheld Terminal Series
For various harsh industrial environments
Product Introduction
Kinco handheld HMIs are intelligent terminals engineered for mobile operation, on-site commissioning, and safe interaction in industrial environments. Featuring robust industrial design, tactile physical buttons, dedicated safety interfaces, versatile communication protocols, and powerful configuration software, they deliver ergonomic and efficient control for robotics, advanced machinery, and automated production lines.
Product Model

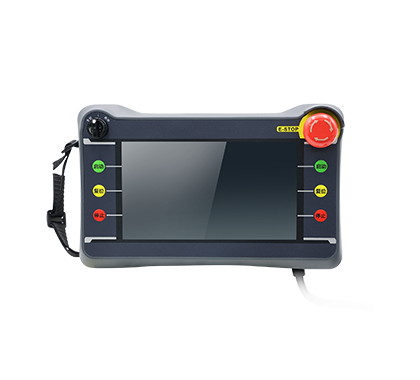

SZ7PE
Add comparison
Cancel comparison

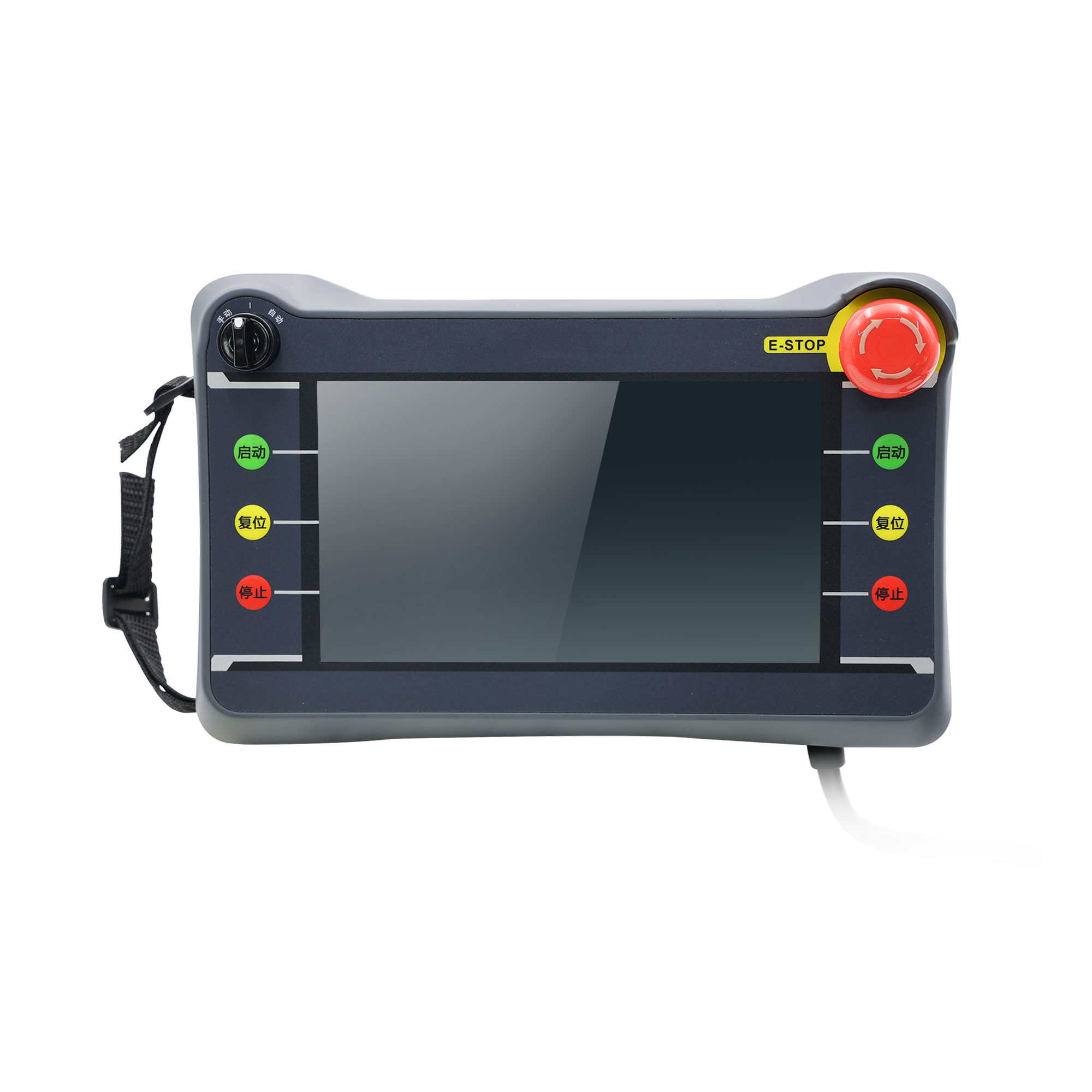

SZ7PES
Add comparison
Cancel comparison

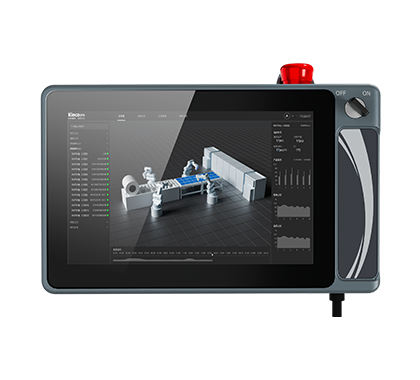

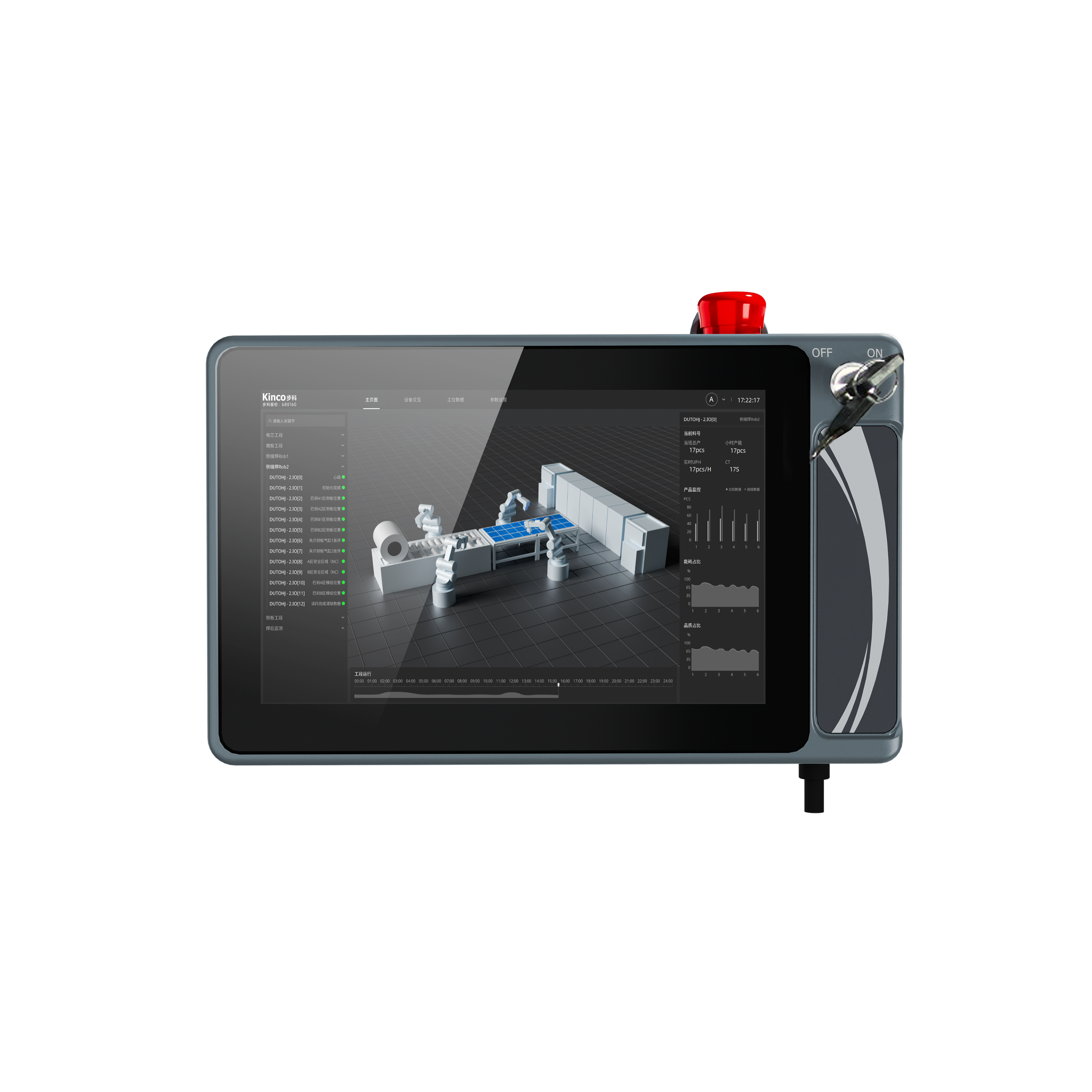

SZ10PES
Add comparison
Cancel comparison

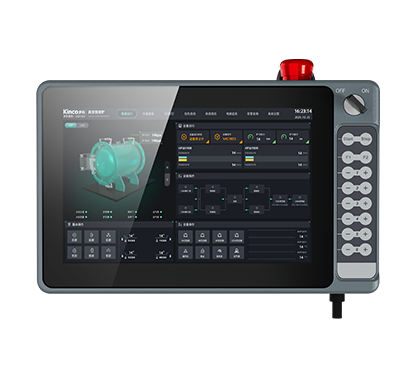

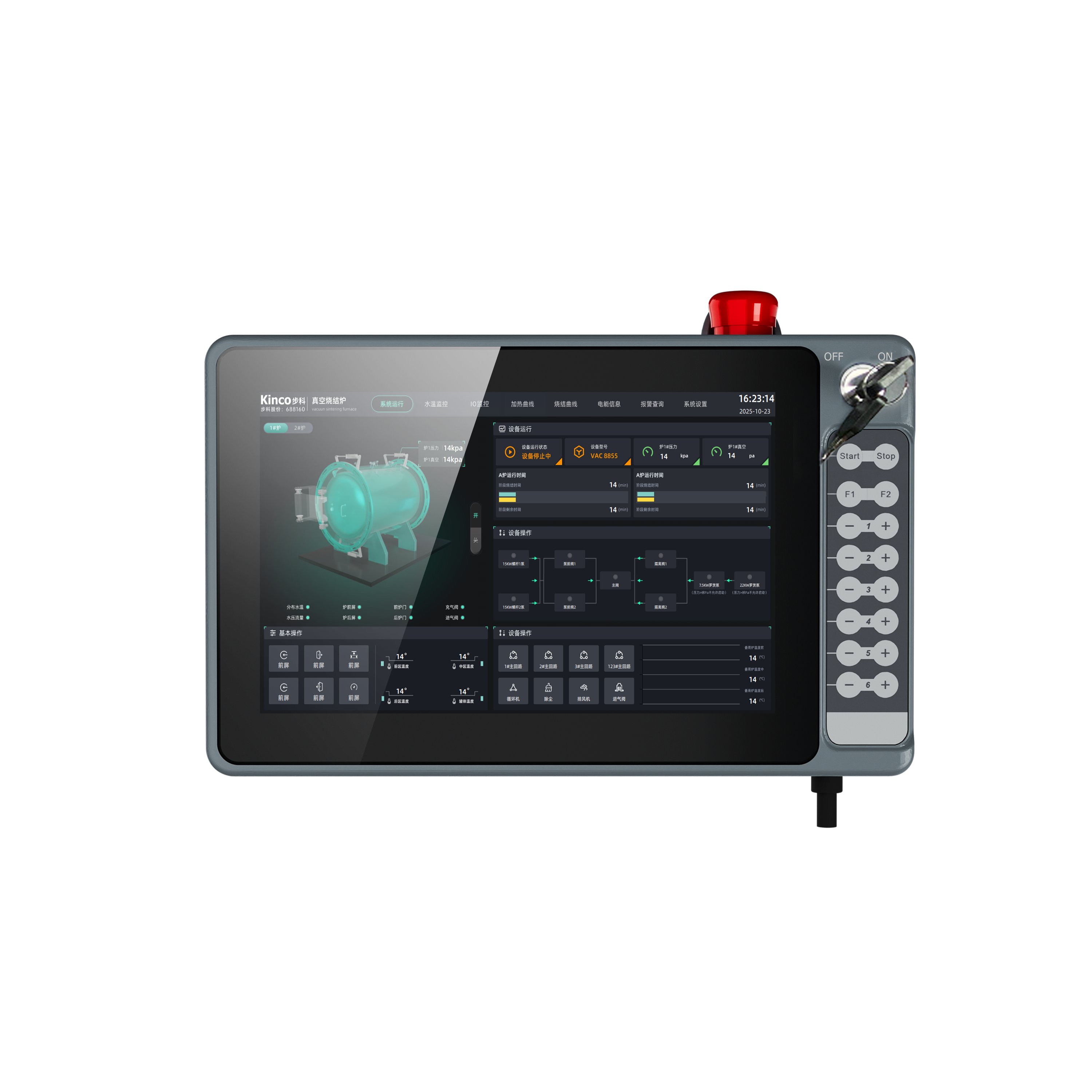

SZ10PES-K
Add comparison
Cancel comparison
SZ10PES-T
Add comparison
Cancel comparison

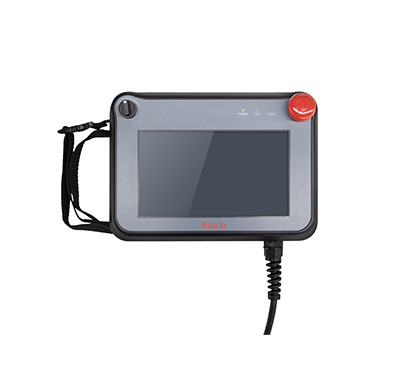

RT070
Add comparison
Cancel comparison
RT070E
Add comparison
Cancel comparison

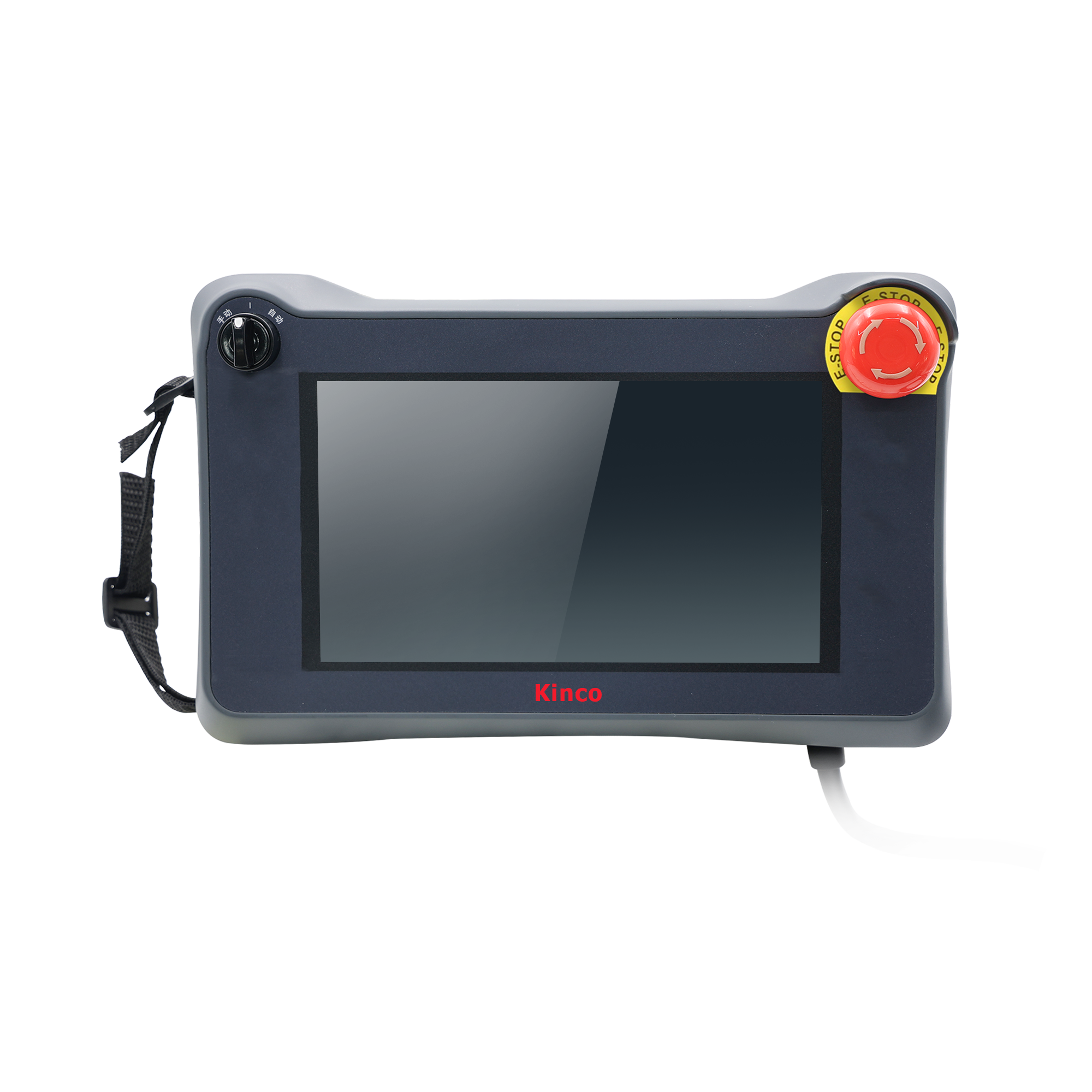

RT070ME
Add comparison
Cancel comparison
SZ7G
Add comparison
Cancel comparison
SZ7GS
Add comparison
Cancel comparison

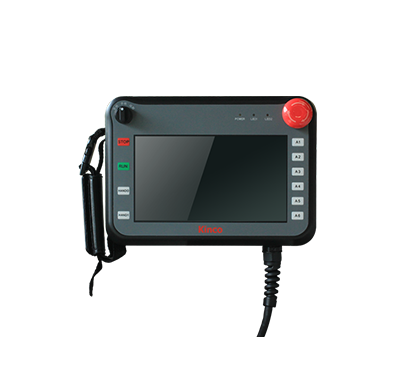

SZ7GE
Add comparison
Cancel comparison
SZ7GES
Add comparison
Cancel comparison

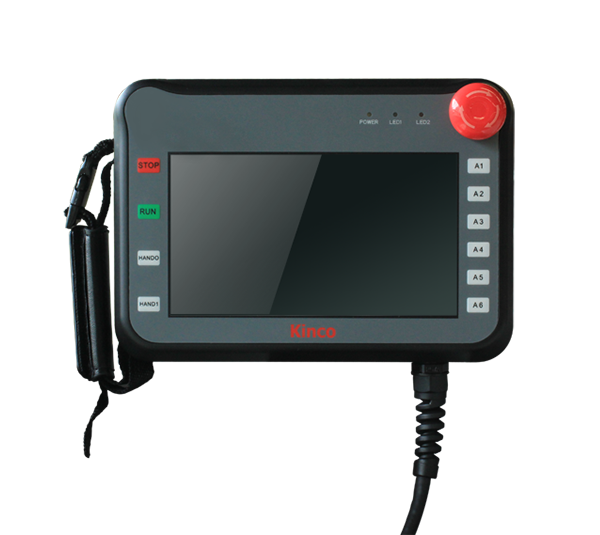

SZ7GES(UL)
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
7
7
10.1
10.1
10.1
7
7
7
7
7
7
7
7
Display Area (W x H)
154.21 x 85.92 mm
154.21 x 85.92 mm
133 x 215 mm
133 x 215 mm
133 x 215 mm
-
-
154.21 x 85.92 mm
-
-
-
-
-
Resolution
1024*600
1024*600
1920*1200
1920*1200
1920*1200
800*480
800*480
800*480
800*480
800*480
800*480
800*480
800*480
Colors
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
Viewing Angle (T/B/L/R)
85/85/85/85
85/85/85/85
85/85/85/85
85/85/85/85
85/85/85/85
-
-
50/40/50/50
-
-
-
-
-
Contrast Ratio
800:1
800:1
600:1
600:1
600:1
-
-
800:1
-
-
-
-
-
Backlight
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
Brightness
450 cd/m²
450 cd/m²
350 cd/m²
350 cd/m²
350 cd/m²
250 cd/m²
250 cd/m²
220 cd/m²
250 cd/m²
250 cd/m²
250 cd/m²
250 cd/m²
250 cd/m²
Backlight Life Time
>30000 hours
>30000 hours
50000 hours
50000 hours
50000 hours
50000 hours
50000 hours
>30000 hours
50000 hours
50000 hours
50000 hours
50000 hours
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire resistive type
4-wire resistive type
Tempered glass, capacitive type
Tempered glass, capacitive type
Tempered glass, capacitive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
Processor
Fold up
Expand
CPU
Dual-core ARM 1GHz
Dual-core ARM 1GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
Dual-core ARM 1GHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
ARM RISC32Bit 792MHz
--
--
GPU
-
-
-
-
-
-
-
-
-
-
-
-
-
NPU
-
-
-
-
-
-
-
-
-
-
-
-
-
Memory
Fold up
Expand
RAM
256M
256M
1GB
1GB
1GB
128M
128M
128M
128M
128M
128M
128M
128M
Flash Memory
4G
4G
8GB
8GB
8GB
256M
256M
256M
256M
256M
256M
256M
128M
Interfaces
Fold up
Expand
USB Host
1
1
1
1
1
1
1
1
1
1
1
1
1
USB Slave
0
0
0
0
0
-
-
-
-
-
-
-
-
Ethernet
1
1
1
1
1
-
1
1
-
-
1
1
1
Communication Port
COM0:RS485；
COM0:RS485；
COM0:RS485/RS422;
COM2:RS232
COM0:RS485/RS422;
COM2:RS232
COM0:RS485/RS422;
COM2:RS232
RS485/RS232
-
-
RS485/RS232
RS485/RS232
-
-
-
4G
-
-
-
-
-
-
-
-
-
-
-
-
-
Wi-Fi
-
-
-
-
-
-
-
-
-
-
-
-
-
Audio Interface
-
-
-
-
-
-
-
-
-
-
-
-
-
Other Interfaces
-
-
-
-
-
-
-
-
-
-
-
-
-
HDMI
-
-
-
-
-
-
-
-
-
-
-
-
--
RFID
-
-
Built-in
Built-in
Built-in
-
-
-
-
-
-
-
--
Programmable Keys
6
6
-
16
-
-
-
-
10
10
10
10
10
Selector Switch
1
1
1
1
1
1
1
1
1
1
1
1
-
Emergenccy Stop
1
1
1
1
1
1
1
1
1
1
1
1
1
Grip Switch
-
1
1
1
1
-
-
-
-
1
-
1
1
LED Indicator
-
-
-
-
-
2*Programmable LED
2*Programmable LED
-
2*Programmable LED
2*Programmable LED
2*Programmable LED
2*Programmable LED
2*Programmable LED
Electrical
Fold up
Expand
Input Power
DC10V-28V
DC10V-28V
DC23.2V-26.4V
DC23.2V-26.4V
DC23.2V-26.4V
DC16V-32V
DC16V-32V
DC18V-28V
DC16V-32V
DC16V-32V
DC16V-32V
DC16V-32V
DC16V-32V
Power Consumption
7W@24VDC
7W@24VDC
20W@24VDC
20W@24VDC
20W@24VDC
8W@24VDC
8W@24VDC
7W@24VDC
8W@24VDC
8W@24VDC
8W@24VDC
8W@24VDC
7W@24VDC
Voltage Interruption Immunity
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Dimensions (W x H x D)
204 x 150 x 44 mm
204 x 150 x 44 mm
301x188x70(mm)
301 x 188 x 70 mm
301 x 188 x 70 mm
220 x 156 x 45 mm
220 x 156 x 45 mm
204 x 150 x 44 mm
220 x 156 x 45 mm
220 x 156 x 45 mm
220 x 156 x 45 mm
220 x 156 x 45 mm
220 x 156 x 45 mm
Cut-out Dimensions
-
-
-
-
-
-
-
-
-
-
-
-
-
Mounting
Suspended mounting & bracket mounting (75 x 75 mm)
Suspended mounting & bracket mounting (75 x 75 mm)
Suspended mounting & Handheld
Suspended mounting & Handheld
Suspended mounting & Handheld
Suspended mounting & bracket mounting (75 x 75 mm)
Suspended mounting & bracket mounting (75 x 75 mm)
Suspended mounting & bracket mounting (75 x 75 mm)
Suspended mounting & bracket mounting (75 x 75 mm)
Suspended mounting & bracket mounting (75 x 75 mm)
Suspended mounting & bracket mounting (75 x 75 mm)
Suspended mounting & bracket mounting (75 x 75 mm)
Suspended mounting & bracket mounting (75 x 75 mm)
Cable
5-meter or 10-meter 14-core flexible cable
5-meter or 10-meter 14-core flexible cable
10-meter 24-core flexible cable
10-meter 24-core flexible cable
7-meter 24-core coiled cable
5-meter cable
5-meter cable
5-meter 14-core flexible cable
5-meter or 10-meter cable
5-meter or 10-meter cable
5-meter or 10-meter cable
5-meter or 10-meter cable
10-meter 14-core aviation coiled cable
Mounting Accessories
-
-
SZ10-BOX
SZ10-BOX
SZ10-BOX
-
-
-
-
-
-
-
-
Environmental
Fold up
Expand
Operating Temperature
0~50°C
0~50°C
-10~60°C
-10~60°C
-10~60°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
0~50°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-10~60°C
-10~60°C
-20~60°C
-10~60°C
-10~60°C
-10~60°C
-10~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Protection
Fold up
Expand
Power Isolation
-
-
Yes
Yes
Yes
Yes
Yes
-
Yes
Yes
Yes
Yes
Yes
Serial Port Isolation
-
-
-
-
-
-
-
-
-
-
-
-
--
PCB Coating
-
-
Yes
Yes
Yes
-
-
-
-
-
-
-
--
Protection Grade
Whole unit: IP54
Whole unit: IP54
Whole unit: IP54
Whole unit: IP54
Whole unit: IP54
Whole unit: IP62
Whole unit: IP62
Whole unit: IP54
Whole unit: IP62
Whole unit: IP62
Whole unit: IP62
Whole unit: IP62
Whole unit: IP54
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2007+1：2011，EN61000-6-2:2005
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
-
-
-
-
-
-
-
-
-
-
-
UL61010-1, CAN/CSA-C22.2 No.61010-1;UL61010-2-201, CAN/CSA-C22. 2 No. 61010-2-201
Software
Fold up
Expand
Configuration Software
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Kinco DTools
Remote Maintenance Platform
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
-
-
-
-
-
-
-
-
