FUTURE Series 2 - Capacitive Touch Screen (F2 X)
Intuitive Operation. Robust Performance. Precision Design.
Future Series II Capacitive Touch Panel
The Kinco Future Series II industrial capacitive touch screen is designed for advanced manufacturing and demanding HMI applications. Powered by a quad-core 1.8GHz processor with 1GB RAM and 8GB storage, it is available in 10-inch and 15.6-inch models. Its HD high-brightness display and projected capacitive touch panel deliver millisecond response, multi-touch gesture control, and reliable wet-hand operation. Built for harsh industrial environments, this panel is UL certified and features conformal coating and power isolation to resist EMI, water, and dust, supporting stable 24/7 operation from -20°C to 60°C. Dual Ethernet ports, dual serial ports, and versatile I/O enable seamless integration with PLCs, MES, and third-party devices. End-to-end encryption and customizable dashboards further support secure, efficient data visualization for lithium battery, solar PV, electronics, and semiconductor applications.
Product Model

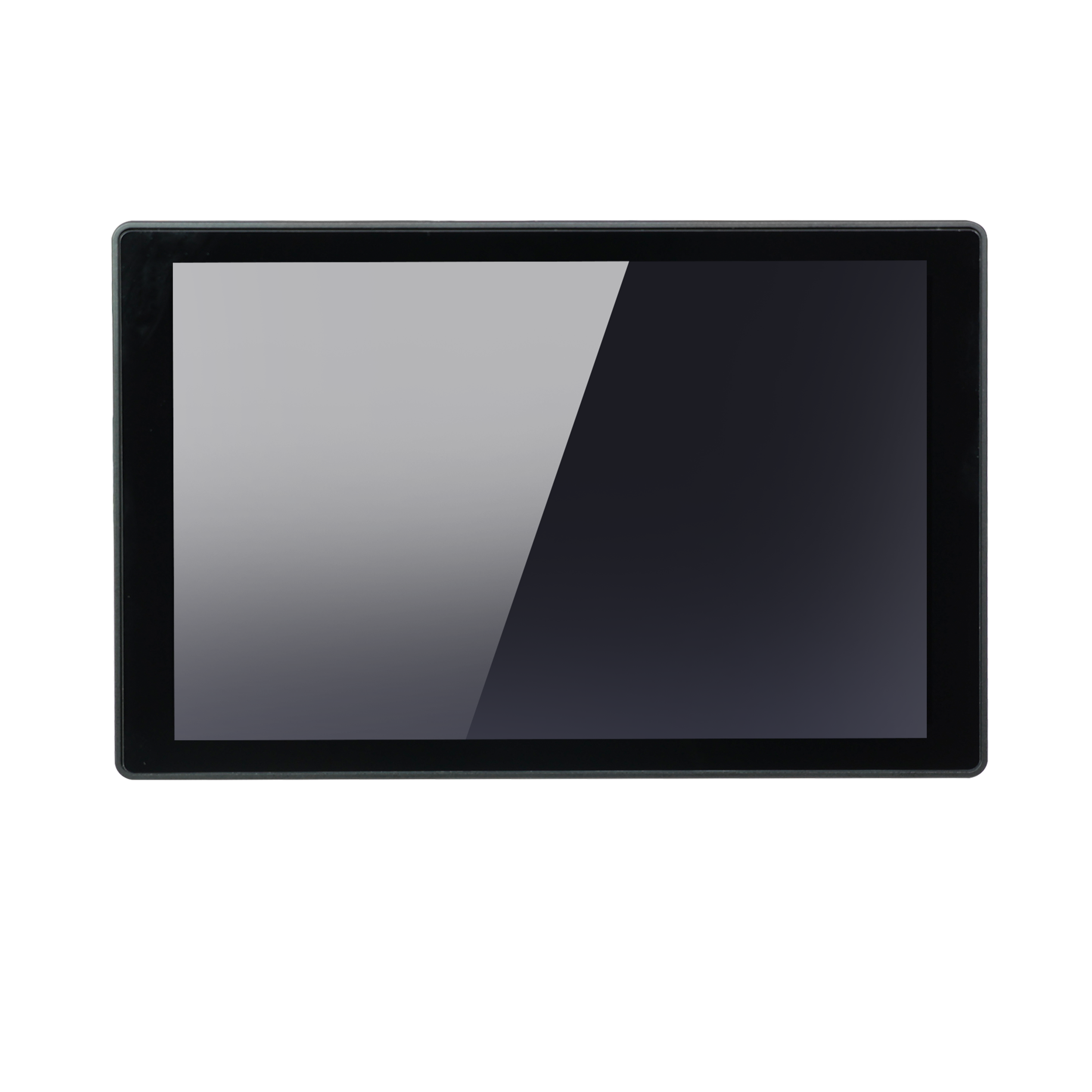

F2100HE2-PX
Add comparison
Cancel comparison
F2156E2-PX
Add comparison
Cancel comparison
F2156E2-PX(UL)
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
10.1"
15.6"
15.6"
Display Area (W x H)
216.58 x 135.36 mm
344.16 x 193.59 mm
344.16 x 193.59 mm
Resolution
1280*800
1920*1080
1920*1080
Colors
16.7 million
16.7 million
16.7 million
Viewing Angle (T/B/L/R)
85/85/85/85
89/89/89/89
89/89/89/89
Contrast Ratio
800:1
1000:1
1000:1
Backlight
LED
LED
LED
Brightness
350 cd/m²
300 cd/m²
300 cd/m²
Backlight Life Time
50000 hours
50000 hours
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
Tempered glass, capacitive type
Tempered glass, capacitive type
Tempered glass, capacitive type
Processor
Fold up
Expand
CPU
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
GPU
-
-
-
NPU
-
-
-
Memory
Fold up
Expand
RAM
1GB
1GB
1GB
Flash Memory
8GB
8GB
8GB
Interfaces
Fold up
Expand
USB Host
1
1
1
USB Slave
1
1
1
Ethernet
2
2
2
Communication Port
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232;
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
4G
-
-
-
Wi-Fi
-
-
-
Audio Interface
1
-
-
Other Interfaces
-
-
-
HDMI
-
-
-
RFID
-
-
-
Programmable Keys
-
-
-
Selector Switch
-
-
-
Emergenccy Stop
-
-
-
Grip Switch
-
-
-
LED Indicator
-
-
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
DC18V-28V
DC18V-28V
Power Consumption
7W@24VDC
15W@24VDC
15W@24VDC
Voltage Interruption Immunity
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Metal
Metal
Metal
Dimensions (W x H x D)
249 x 159 x 33 mm
395 x 259 x 25.5 mm
395 x 259 x 25.5 mm
Cut-out Dimensions
192 x 138 mm
382 x 246 mm
382 x 246 mm
Mounting
Panel mounting & Bracket mounting (75*75)
Panel mounting & Bracket mounting (100*100)
Panel mounting & Bracket mounting (100*100)
Cable
-
-
-
Mounting Accessories
-
-
-
Environmental
Fold up
Expand
Operating Temperature
-10~60°C
-10~60°C
-10~60°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Natural air circulation
Natural air circulation
Protection
Fold up
Expand
Power Isolation
Yes
Yes
Yes
Serial Port Isolation
-
-
-
PCB Coating
Yes
Yes
Yes
Protection Grade
Front panel: IP65
Front panel: IP65
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
-
UL 61010-1
Software
Fold up
Expand
Configuration Software
Kinco DToolsPro
Kinco DToolsPro
Kinco DToolsPro
Remote Maintenance Platform
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
