FUTURE MAX Series 2
Equipped with a 1.8 GHz quad-core Arm Cortex‑A55 processor, the unit ships with 2 GB DDR4 RAM and 64 GB eMMC flash memory as standard factory configuration. This hardware foundation guarantees fluid system operation and reliable long-term data retention.
FUTURE MAX Series 2
Engineered specifically for sophisticated lithium-ion battery production lines, the Kinco F2 MAX Series constitutes a next-generation industrial HMI platform. Tuned through deep hardware and software co-optimization, it eliminates latency and screen stutter common to legacy HMIs running under heavy data throughput and graphics-heavy workloads. Available in both panel-mount and portable handheld form factors, the F2 MAX features 64 GB onboard storage and delivers steady round-the-clock operation supported by field-validated system stability. When paired with the newly launched Kinco DToolsPro V1.10 programming software, it boosts engineering productivity by up to 40%. This unified platform fully meets all full-lifecycle HMI management requirements across every core lithium battery production stage — covering key workflows: coating, winding, cell formation and grading.
Product Model

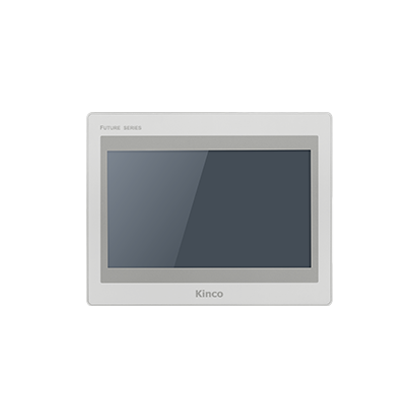

F2100E2 MAX
Add comparison
Cancel comparison

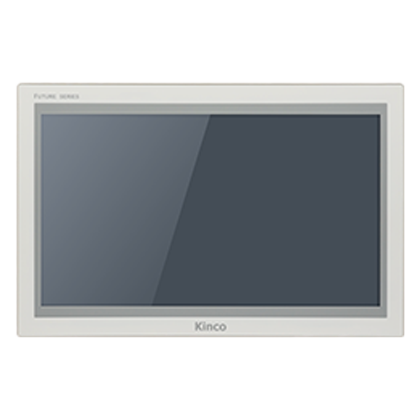

F2156E2 MAX
Add comparison
Cancel comparison

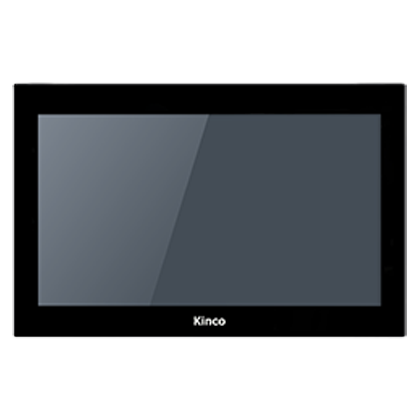

F2156E2-PX MAX
Add comparison
Cancel comparison

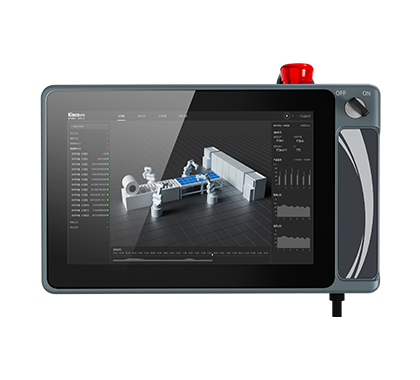

SZ10PES MAX
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
10.1
15.6
15.6
10.1
Display Area (W x H)
222.72 x 125.28 mm
344.16 x 193.59 mm
344.16 x 193.59 mm
133mm x 215 mm
Resolution
1024*600
1920*1080
1920*1080
1920*1200
Colors
16.7 million
16.7 million
16.7 million
16.7 million
Viewing Angle (T/B/L/R)
89/89/89/89
85/85/89/89
85/85/89/89
85/85/85/85
Contrast Ratio
1000:1
1000:1
1000:1
600:1
Backlight
LED
LED
LED
LED
Brightness
350cd/m²
250cd/m²
250cd/m²
350cd/m²
Backlight Life Time
50000 hours
50000 hours
50000 hours
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire resistive type
4-wire resistive type
Tempered glass, capacitive type
Tempered glass, capacitive type
Processor
Fold up
Expand
CPU
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
GPU
-
-
-
-
NPU
-
-
-
-
Memory
Fold up
Expand
RAM
2GB
2GB
2GB
2GB
Flash Memory
64GB
64GB
64GB
64GB
Interfaces
Fold up
Expand
USB Host
1
2
2
1
USB Slave
1
0
0
0
Ethernet
2
2
2
1
Communication Port
COM0:RS232/RS485/RS422;
COM1:RS485/RS422
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS232/RS485/RS422;
COM2:RS232
COM0:RS485/RS422;
COM2:RS232
4G
-
--
--
--
Wi-Fi
-
--
--
--
Audio Interface
-
--
--
--
Other Interfaces
-
--
--
--
HDMI
-
--
--
--
RFID
-
-
-
Built-in
Programmable Keys
-
-
-
-
Selector Switch
-
-
-
1
Emergenccy Stop
-
-
-
1
Grip Switch
-
-
-
1
LED Indicator
-
-
-
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
DC18V-28V
DC18V-28V
DC12V-28V
Power Consumption
7W@24VDC
15W@24VDC
15W@24VDC
20W@24VDC
Voltage Interruption Immunity
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Metal
Metal
Engineering plastic
Dimensions (W x H x D)
271 x 213 x 38 mm
395 x 259 x 25.5 mm
395 x 259 x 25.5 mm
301 x 188 x 70 mm
Cut-out Dimensions
260 x 202 mm
382 x 246 mm
382 x 246 mm
-
Mounting
Panel mounting
Panel mounting & bracket mounting (100 x 100 mm)
Panel mounting & bracket mounting (100 x 100 mm)
Suspension mounting & Handheld
Cable
-
-
-
10-meter 24-core flexible cable
Mounting Accessories
-
-
-
SZ10-BOX
Environmental
Fold up
Expand
Operating Temperature
-10~60°C
-10~60°C
-10~60°C
-10~60°C
Operating Humidity
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
-20~60°C
Storage Humidity
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
0~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Protection
Fold up
Expand
Power Isolation
Yes
Yes
Yes
Yes
Serial Port Isolation
-
-
-
-
PCB Coating
Yes
Yes
Yes
Yes
Protection Grade
Front panel: IP65
Front panel: IP65
Front panel: IP65
Whole unit: IP54
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
-
-
-
Software
Fold up
Expand
Configuration Software
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Remote Maintenance Platform
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
