FD2S Series AC Servo Drive
Built on a next-generation proprietary hardware platform, this high-performance AC servo drive delivers stable, precise motion control
FD2S Series AC Servo Drive
Built on Kinco’s next-generation proprietary hardware platform, the FD2S high-performance AC servo drive covers a power range of 50 W – 3 kW, supporting single/three-phase 220 V and three-phase 380 V power supply variants. This servo drive integrates three core control modes: position, speed and torque. It supports multiple communication interfaces including pulse, Modbus, CANopen and EtherCAT, enabling seamless compatibility with photoelectric encoder and resolver motors across all precision grades. Equipped with comprehensive built-in digital I/O terminals and advanced control algorithms, the FD2S delivers ultra-fast response and high-precision dynamic motion performance. It is widely deployed across CNC machine tools, packaging equipment, industrial robots, 3C electronics production lines, lithium battery and new energy machinery.

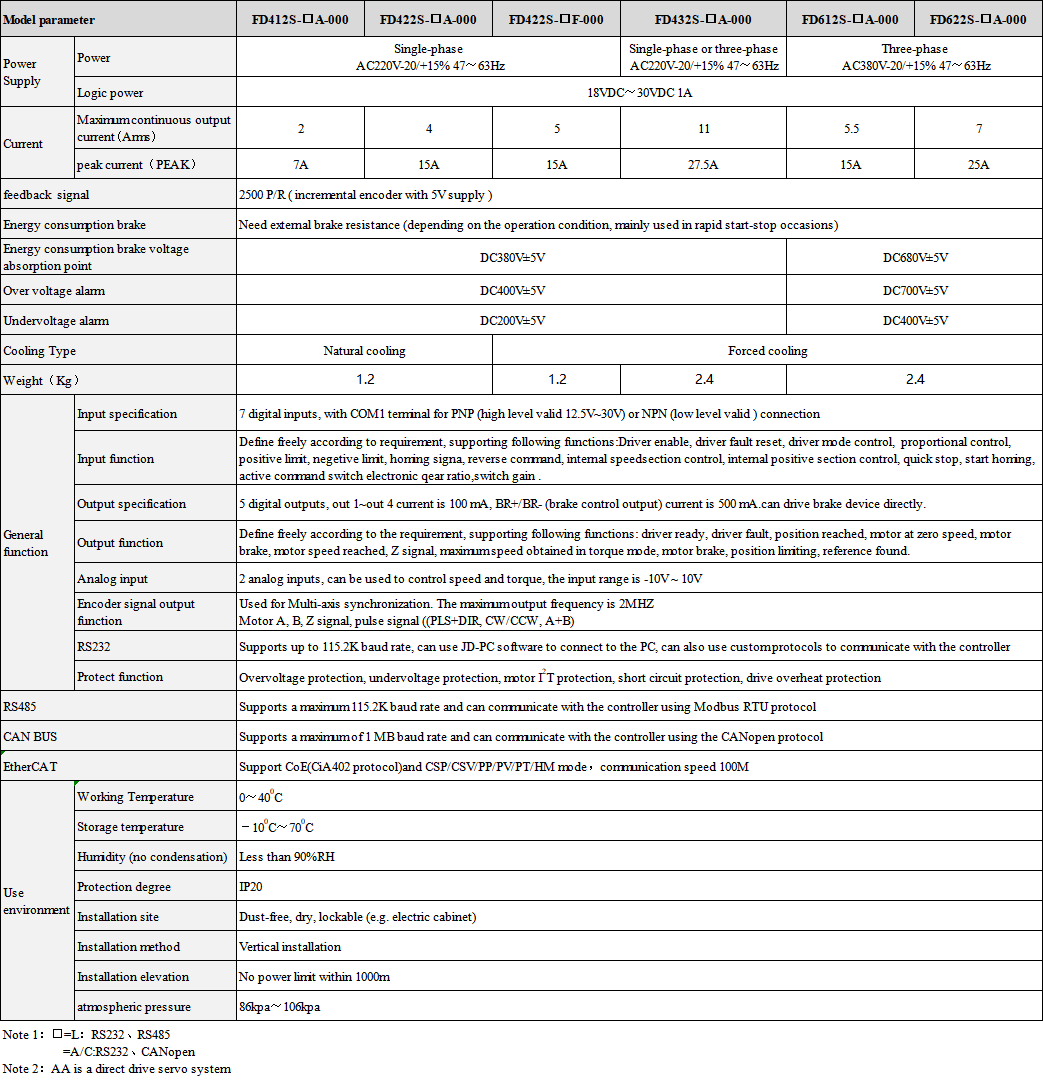

| Model parameter | FD412S-□A-000 | FD422S-□A-000 | FD422S-□F-000 | FD432S-□A-000 | FD612S-□A-000 | FD622S-□A-000 | |
| Power Supply | Power | Single-phase AC220V-20/+15% 47～63Hz |
Single-phase or three-phase AC220V-20/+15% 47～63Hz | Three-phase AC380V-20/+15% 47～63Hz |
|||
| Logic power | 18VDC～30VDC 1A | ||||||
| Current | Maximum continuous output current(Arms) | 2A | 4A | 5A | 11A | 5.5A | 7A |
| peak current（PEAK） | 7AP | 15AP | 15AP | 27.5AP | 15AP | 25AP | |
| Feedback signal | 2500 P/R ( incremental encoder with 5V supply ) | ||||||
| Energy consumption brake | Need external brake resistance (depending on the operation condition, mainly used in rapid start-stop occasions) | ||||||
| Energy consumption brake voltage absorption point | DC380V±5V | DC680V±5V | |||||
| Over voltage alarm | DC400V±5V | DC700V±5V | |||||
| Undervoltage alarm | DC200V±5V | DC400V±5V | |||||
| Cooling Type | Natural cooling | Forced cooling | |||||
| Weight（Kg） | 1.2 | 1.2 | 2.4 | 2.4 | |||
| General function | Input specification | 7 digital inputs, with COM1 terminal for PNP (high level valid 12.5V~30V) or NPN (low level valid ) connection | |||||
| Input function | Define freely according to requirement, supporting following functions:Driver enable, driver fault reset, driver mode control, proportional control, positive limit, negetive limit, homing signa, reverse command, internal speedsection control, internal positive section control, quick stop, start homing, active command switch electronic qear ratio,switch gain . | ||||||
| Output specification | 5 digital outputs, out 1~out 4 current is 100 mA, BR+/BR- (brake control output) current is 500 mA.can drive brake device directly. | ||||||
| Output function | Define freely according to the requirement, supporting following functions: driver ready, driver fault, position reached, motor at zero speed, motor brake, motor speed reached, Z signal, maximum speed obtained in torque mode, motor brake, position limiting, reference found. | ||||||
| Analog input | 2 analog inputs, can be used to control speed and torque, the input range is -10V ~ 10V | ||||||
| Encoder signal output function | Used for Multi-axis synchronization. The maximum output frequency is 2MHZ Motor A, B, Z signal, pulse signal ((PLS+DIR, CW/CCW, A+B) |
||||||
| RS232 | Support up to 115.2K baud rate, can use JD-PC software to connect to the PC, can also use custom protocols to communicate with the controller | ||||||
| Protect function | Overvoltage protection, undervoltage protection, motor I2T protection, short circuit protection, drive overheat protection | ||||||
| RS485 | Supports a maximum 115.2K baud rate and can communicate with the controller using Modbus RTU protocol | ||||||
| CAN BUS | Support a maximum of 1 MB baud rate and can communicate with the controller using the CANopen protocol | ||||||
| EtherCAT | Support CoE(CiA402 protocol)and CSP/CSV/PP/PV/PT/HM mode，communication speed 100M | ||||||
| Use environment | Working Temperature | 0～40℃ | |||||
| Storage temperature | ﹣10℃～70℃ | ||||||
| Humidity (no condensation) | Less than 90%RH | ||||||
| Protection degree | IP20 | ||||||
| Installation site | Dust-free, dry, lockable (e.g. electric cabinet) | ||||||
| Installation method | Vertical installation | ||||||
| Installation elevation | No power limit within 1000m | ||||||
| Atmospheric pressure | 86kpa～106kpa | ||||||

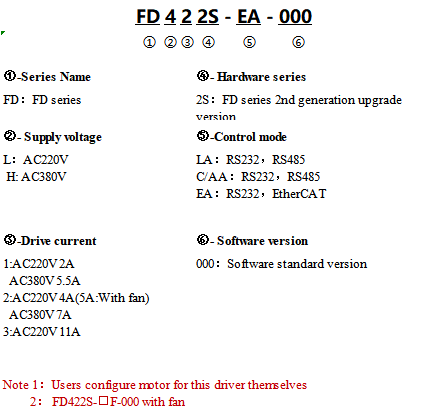

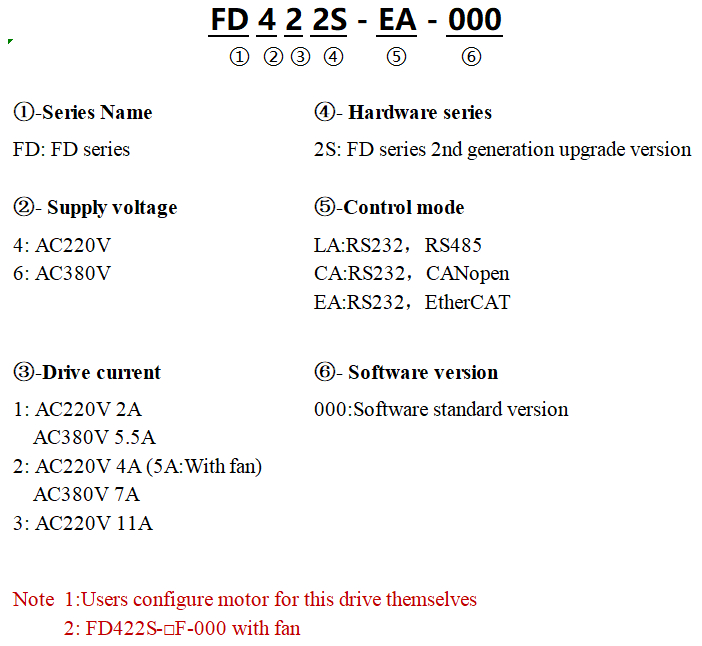

| Note 1： □=L:RS232,RS485 =C:RS232,CANopen =E:RS232,EtherCAT |
|||||||
