FM Series Stepper Driver
Multi-bus control support: Modbus, CANopen and EtherCAT industrial fieldbus protocols
FM Series Stepper Driver
Built on a mature servo control technology platform, FM series fieldbus stepper drivers support abundant home position control modes, analog input control, plus communication functions over CANopen, Modbus and RS232. Featuring a redesigned compact interface layout, they deliver improved overall performance. These drives are widely applied across electronic manufacturing, special machine tools, industrial robots, inkjet printing, textile & garment machinery, logistics equipment, medical AGVs and packaging equipment.

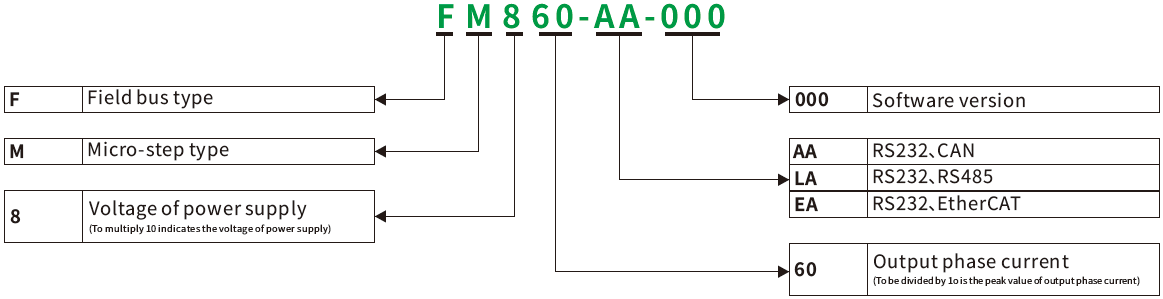

Product Model
FM560-EA-000
Add comparison
Cancel comparison
FM860-LA-000
Add comparison
Cancel comparison
FM860-AA-000
Add comparison
Cancel comparison
FM880-EA-000
Add comparison
Cancel comparison
Slide to display more
Basic Specifications
Fold up
Expand
Input voltage
24VDC～50VDC
24VDC～70VDC
24VDC～70VDC
24VDC～70VDC
Output current
0.1～6A
0.15～8A （Peak）
0.15～8A （Peak）
0.1～10A
Micro step
KincoStep setting of upper computer software
KincoStep setting of upper computer software
KincoStep setting of upper computer software
KincoStep setting of upper computer software
Adaptive motor
42/57/86 series 2-phase hybrid stepper motor
42/57/86 series 2-phase or57/85 series
3-phase hybrid stepper motor
42/57/86 series 2-phase or57/85 series
3-phase hybrid stepper motor
86 series 2-phase or57/85 series
3-phase hybrid stepper motor
ControlMethod
EtherCAT bus protocol control,l0 control,analog
controlPulse control: pulse + direction
(PLS+DlR, positive and negative pulse (CW/CCW), A+B phase
Modbus bus protocol control,l0 control,analog
controlPulse control: pulse + direction
(PLS+DlR, positive and negative pulse (CW/CCW), A+B phase
CANopen bus protocol control,l0 control,analog
controlPulse control: pulse + direction
(PLS+DlR, positive and negative pulse (CW/CCW), A+B phase
EtherCAT bus protocol control,l0 control,analog
controlPulse control: pulse + direction
(PLS+DlR, positive and negative pulse (CW/CCW), A+B phase
Cooling method
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Weight (net weight)
0.363Kg
0.36Kg
0.36Kg
0.363Kg
Dimensions
134.5x 75.5 x 34mm
134.5x 75.5 x 34mm
134.5x 75.5 x 34mm
134.5x 75.5 x 34mm
Ingress protection
IP20
IP20
IP20
IP20
Alarm Voltage Point
Fold up
Expand
Over-voltage protection
>85VDC
>85VDC
>85VDC
>85VDC
Under-voltage protection
<15VDC
<15VDC
<15VDC
<15VDC
Environment Of Use
Fold up
Expand
Operation environment
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Operation humidity
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
Operation temperature
0℃～+40℃
0℃～+40℃
0℃～+40℃
0℃～+40℃
Storage temperature
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
