FMC Series Frameless Torque Motor
Adopting advanced frameless encapsulation technology, this motor boasts a slim, lightweight design with superior torque density and ultra-low cogging torque, enabling seamless embedding within cobot joints.
FMC Series Frameless Torque Motor
The FMC series adopts a fully lightweight, low-profile stator stack design. Optimized for reduced thickness, it delivers drastically improved dynamic response while maintaining consistent operational stability, balancing fast agility with long-term reliability. Its innovative multi-slot & multi-pole magnetic topology redefines conventional servo motor architectures, going far beyond minor refinements to standard 8-pole and 10-pole motors. This design fundamentally suppresses cogging torque at the structural source, eliminates dynamic control lag, and enables ultra-precise micro-positioning for high-end automation equipment.

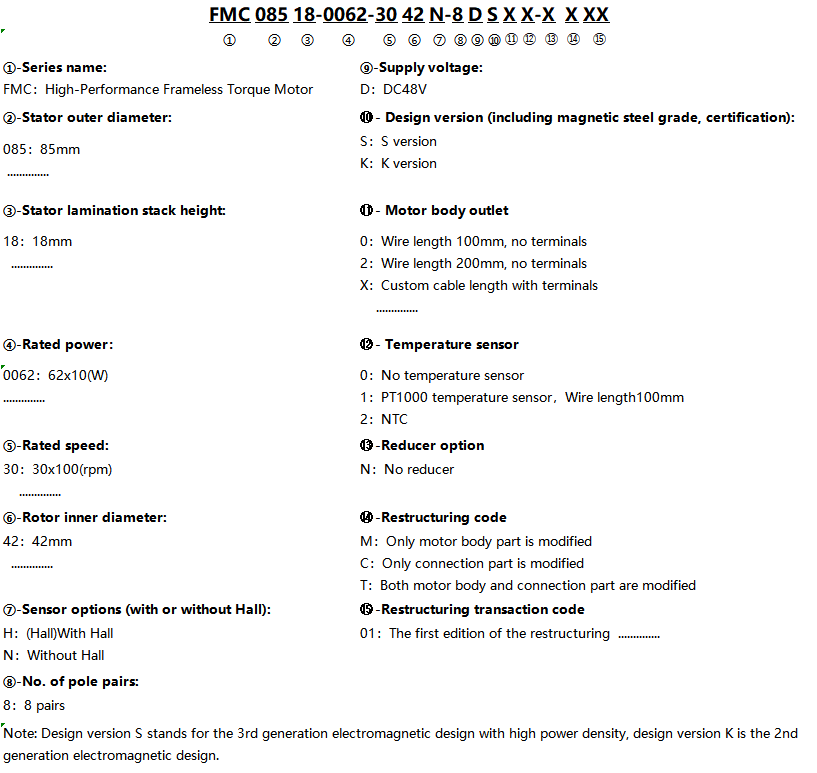

Product Model
FMC05705-0007-3028N-8DS00
Add comparison
Cancel comparison
FMC05707-0011-3528N-8DS00
Add comparison
Cancel comparison
FMC05714-0020-3027N-8DS00
Add comparison
Cancel comparison
FMC06012-0014-3128N-8DK00
Add comparison
Cancel comparison
FMC06805-0010-3034N-8DS00
Add comparison
Cancel comparison
FMC06808-0015-3034N-8DS00
Add comparison
Cancel comparison
FMC06813-0025-3034N-8DS00
Add comparison
Cancel comparison
FMC07605-0012-3038N-8DS00
Add comparison
Cancel comparison
FMC07712-0031-3033N-8DS00
Add comparison
Cancel comparison
FMC07730-0075-3035N-8DS00
Add comparison
Cancel comparison
FMC08505-0015-3042N-8DS00
Add comparison
Cancel comparison
FMC08508-0031-3042N-8DS00
Add comparison
Cancel comparison
FMC08518-0062-3042N-8DS00
Add comparison
Cancel comparison
FMC09114-0063-3046N-8DS01
Add comparison
Cancel comparison
FMC10414-0072-3055N-8DS01
Add comparison
Cancel comparison
FMC10422-0100-3047N-8DS00
Add comparison
Cancel comparison
FMC10429-0100-2543N-8DS00
Add comparison
Cancel comparison
FMC12330-0100-2060N-5DS00
Add comparison
Cancel comparison
FMC12718-0090-2465N-8DS00
Add comparison
Cancel comparison
FMC12730-0160-2457N-8DS00
Add comparison
Cancel comparison
FMC13224-0118-3243N-8DK00
Add comparison
Cancel comparison
Slide to display more
Electrical Specifications
Fold up
Expand
Rated voltage(VDC)
48
48
48
48
48
48
48
48
48
48
48
48
48
--
--
--
--
--
--
--
--
Rated power Pn(W)
75
117
200
146
101
157
251
117
314
750
157
314
628
--
--
--
--
--
--
--
--
Rated torque Tn(Nm)
0.24
0.32
0.64
0.45
0.32
0.5
0.8
0.32
1
2.39
0.5
1
2
--
--
--
--
--
--
--
--
Max torqueTm(Nm)
0.72
0.96
1.92
1.25
0.96
1.5
2.4
0.96
3
7.17
1.5
3
6
--
--
--
--
--
--
--
--
Rated current In(A)
1.91
3.2
5.1
3.4
2.8
4.5
7
3.2
7.65
18.6
5
8.8
21.3
--
--
--
--
--
--
--
--
Max currentIm(A)
5.9
10.5
15.6
10.88
8.4
13.5
21
10.5
24
61
16.3
26.4
63.9
--
--
--
--
--
--
--
--
Rated speed nN(rpm)
3000
3500
3000
3100
3000
3000
3000
3000
3000
3000
3000
3000
3000
--
--
--
--
--
--
--
--
Max speednM(rpm)
3800
4300
4000
3400
3900
3900
3900
4300
4000
3800
3900
4100
5000
--
--
--
--
--
--
--
--
Torque constant Kt(Nm/A)
0.12
0.107
0.137
0.124
0.127
0.127
0.129
0.126
0.1
0.131
0.126(ref)
0.123
0.105
--
--
--
--
--
--
--
--
Mechanical time constant τm(ms)
2.75
1.93
1.44
1.06
0.99
0.77
0.52
1.7
1.45
1.21
1.51(ref)
1.25
0.76
--
--
--
--
--
--
--
--
