Product Model

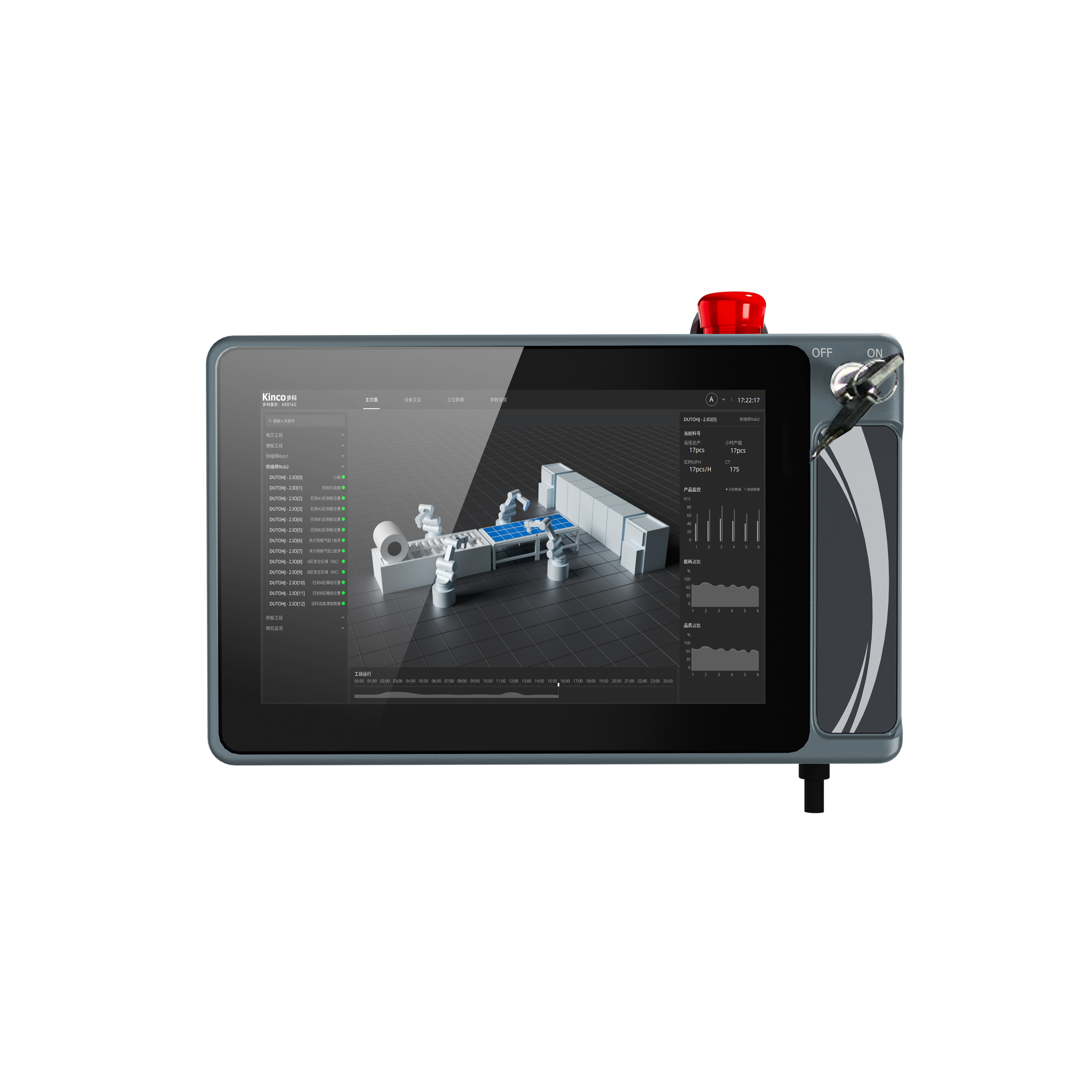

SZ10DES
Add comparison
Cancel comparison
F2121E2-PX-WIFI
Add comparison
Cancel comparison
GR2104E-PX
Add comparison
Cancel comparison
GR2121E-PX
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
10.1"
12.1"
10.4"
12.1"
Display Area (W x H)
215 x 133 mm
261.12 x 163.20 mm
210.43 x 157.82 mm
245.76 x 184.32 mm
Resolution
1920*1200
1280*800
1024*768
1024*768
Colors
16.7 million
16.7 million
16.7 million
16.7 million
Viewing Angle (T/B/L/R)
85/85/85/85
85/85/85/85
80/80/80/80
85/85/85/85
Contrast Ratio
600:1
1200:1
1000:1
1000:1
Backlight
LED
LED
LED
LED
Brightness
350 cd/m²
500 cd/m²
600 cd/m²
500 cd/m²
Backlight Life Time
50000 hours
50000 hours
50000 hours
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
Tempered glass, capacitive type
Tempered glass, capacitive type
Tempered glass, capacitive type
Tempered glass, capacitive type
Processor
Fold up
Expand
CPU
Octa-core CPU (quad-core ARM Cortex-A72 + quad-core Cortex-A53)
Quad-core ARM 1.8GHz
Quad-core ARM 1.5GHz
Quad-core ARM 1.5GHz
GPU
Mali‑G52
Mali-G52
-
-
AI Capabilities
6 TOPS (INT8) AI computing power; supports TensorFlow, Caffe, TFLite, PyTorch, ONNX NN, Android NN, and other deep learning frameworks
1 TOPS (INT8) AI computing power; supports the RKNN inference framework and mainstream deep learning models, enabling lightweight local AI inference for industrial edge applications, including object detection, image classification, and OCR
Built-in camera for native on-site image capture; supports lightweight image analysis and AI vision application integration, enabling an integrated HMI solution for image capture and recognition result display
Built-in camera for native on-site image capture; supports lightweight image analysis and AI vision application integration, enabling an integrated HMI solution for image capture and recognition result display
Memory
Fold up
Expand
RAM
4GB
8GB
512M
512M
Flash Memory
8GB
64GB
8GB
8GB
Interfaces
Fold up
Expand
USB Host
1
4
1
1
USB Slave
0
1
1
1
Ethernet
1
2
1
1
Communication Port
COM0:RS485/RS422;
COM2:RS232
1*DB9 (COM0:RS232/RS485/RS422;
COM2:RS232)
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232;
COM0:RS232/RS485/RS422;
COM1:RS485/RS422;
COM2:RS232;
4G
-
-
-
-
Wi-Fi
-
IEEE 802.11 b/g/n
-
-
Audio Interface
-
1
1
1
Other Interfaces
-
-
-
-
HDMI
-
1
-
-
RFID
-
-
-
-
Programmable Keys
-
-
-
-
Selector Switch
1
-
-
-
Emergenccy Stop
1
-
-
-
Grip Switch
1
-
-
-
LED Indicator
-
-
-
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
DC12V-28V
DC18V-28V
DC18V-28V
Power Consumption
20W@24VDC
15W@24VDC
15W@24VDC
15W@24VDC
Voltage Interruption Immunity
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Metal
Metal
Metal
Dimensions (W x H x D)
301 x 188 x 70 mm
314 x 240 x 36 mm
395 x 259 x 25.5 mm
204 x 150 x 37 mm
Cut-out Dimensions
-
303 x 229 mm
382 x 246 mm
192 x 138 mm
Mounting
Suspended mounting / Handheld
Panel mounting / Bracket mounting
Rear mounting
Rear mounting
Cable
10-meterm 24-core flexible aviation connector cable
-
-
-
Mounting Accessories
SZ10-BOX
Built-in GW01
-
-
Environmental
Fold up
Expand
Operating Temperature
-10~60°C
-20~60°C
0~50°C
0~50°C
Operating Humidity
0~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-30~70°C
-20~60°C
-20~60°C
Storage Humidity
0~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour each for X, Y, Z directions
Cooling Method
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Protection
Fold up
Expand
Power Isolation
Yes
Yes
-
-
Serial Port Isolation
-
-
-
-
PCB Coating
Yes
Yes
-
-
Protection Grade
Front panel: IP65
Front panel: IP65
Front panel: IP65
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
Passed
Passed
Passed
Passed
UL Certificate
-
-
-
-
Software
Fold up
Expand
Configuration Software
Debian 12
Kinco DToolsPro
Kinco DToolsPro
Kinco DToolsPro
Remote Maintenance Platform
-
-
EdgeAccess2.0
EdgeAccess2.0
