Mシリーズ ステッピングドライバ
Mシリーズ ステッピングドライバ
製品モデル
2M1180N
比較に追加
比較を解除
2M2280N
比較に追加
比較を解除

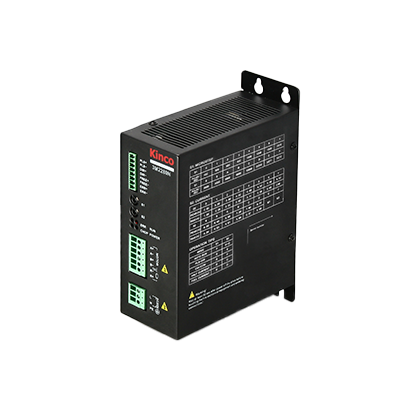

3M2280N
比較に追加
比較を解除

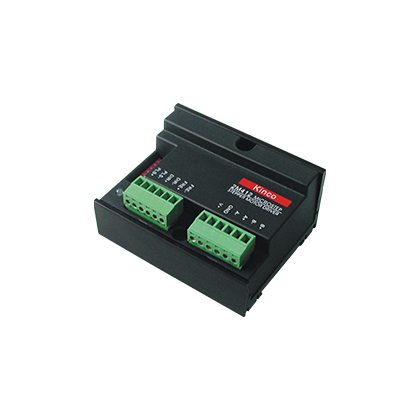

2M412
比較に追加
比較を解除

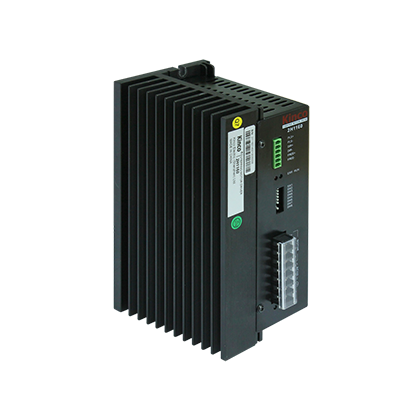

2H1160
比較に追加
比較を解除
スライドしてさらに表示
折りたたむ
展開する
入力電圧
Single-phase 77V AC~123VAC(50Hz)
Single-phase 220VAC~253VAC(50Hz)
Single-phase 220VAC~253VAC(50Hz)
DC12V~40V
Single-phase 60VAC~123VAC(50Hz)
Phase current(Peak)
4.5/5/5.5/6A/6.5/7/7.5/8,.Total of 8 setting values（unit：A）
4.5/5/5.5/6A/6.5/7/7.5/8，.Total of 8 setting values（unit：A）
2.8/3.213.6/4.0/4.4/4.8/5.215.6/6.0/6.4/6.8/
7.2/7.6/8.0.Total of 14 setting values（unit：A）
0.2~1.2A
2.5~6.5A
マイクロステップ
2/4/5/8/10/16/20/32/50/64/100/128，Total of 12
2/4/5/8/10/16/20/32/50/64/100/128，Total of 12
400~30000pulse/rev，Total of 14
/
/
適応可能なモーター
57/86/110 series 2-phase bipolarhybrid steppermotors
110/130 series 2-phase bipolarhybrid steppermotors
110/130 series 2-phase bipolarhybrid steppermotors
42 series 2-phase bipolarhybrid steppermotors
86/110 series 2-phase bipolarhybrid steppermotors
入力信号
PLS(CW)、DIR(CCW)、A/B、FREE signal; current range: 6~16 mA
PLS(CW)、DIR(CCW)、AVB、FREEsignal; current range: 6~16 mA
PLS(CW)、DIR(CCW)、AVB、FREEsignal; current range: 6~16 mA
The input circuit of the control signal is isolated by optocoupler devices,Input current of control signal 6~16mA
The input circuit of the control signal is isolated by optocoupler devices,Input current of control signal 6~16mA
制御モード
Pulse control:PLS+DIR,CW/CCW、A+B
Pulse control:PLS+DIR,CW/CCW、A+B
Pulse control:PLS+DIR,CW/CCW、A+B
/
/
出力信号
ERR, open collectoroutput, maximum current:100mA
ERR, open collectoroutput, maximum current:100mA
ERR, open collectoroutput, maximum current:100mA
/
/
自動半電流
The driver will reduce phase current of the
motor by a halfin 1.5 seconds
The driver will reduce phase current of the
motor by a halfin 1.5 seconds
The driver will reduce phase current of the
motor by a halfin 1.5 seconds
/
/
Protection circuit
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
/
/
ダイナミックブレーキング回路
Absorb regenerated energy of motor by
connecting to power resistor. Custom function.
Absorb regenerated energy of motor by
connecting to power resistor. Custom function.
Absorb regenerated energy of motor by
connecting to power resistor. Custom function.
/
/
冷却方法
Forced air cooling
Forced air cooling
Forced air cooling
Natural air cooling
Natural air cooling
重量（正味重量）
1.5Kg
1.5Kg
1.5Kg
0.13Kg
1.77Kg
Dimensions
201x147x66mm
201x147x66mm
201x147x66mm
76*60*35.2
200*123*86.5
侵入防止
IP20
IP20
IP20
IP20
IP20
折りたたむ
展開する
Over-voltage protection
>187VDC
>395VDC
>395VDC
/
/
アンダーボルト保護
<85VDC
<200VDC
<200VDC
/
/
折りたたむ
展開する
動作環境
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Operation humidity
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
動作温度
0℃~+40℃
0℃℃~+40℃℃
0℃℃~+40℃℃
-10℃~+45℃
-10℃~+45°C
保管温度
-20℃~+70℃
-20℃~+70℃
-20℃~+70℃
-20℃~+70℃
-20℃~+70℃
