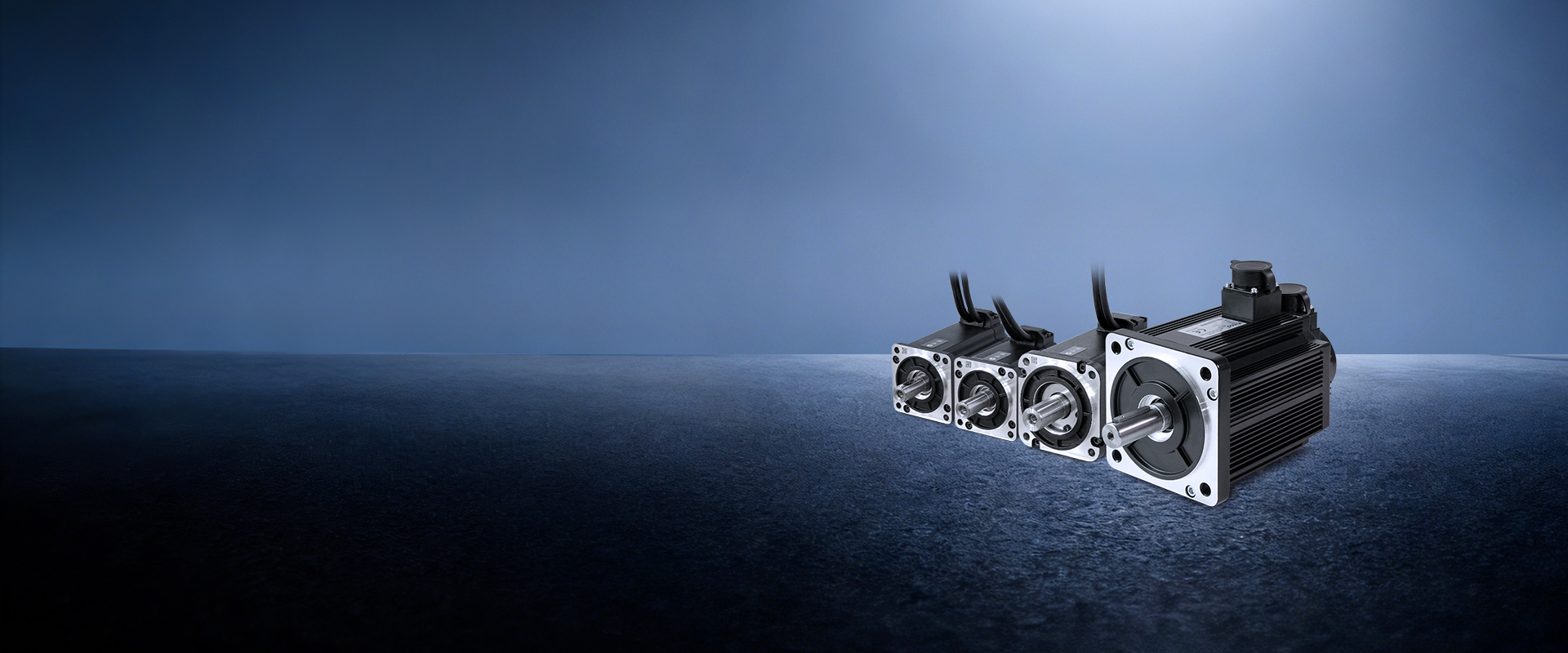

SMCシリーズ DCサーボモータ（DC48V）
革新的な磁気回路設計、高コストパフォーマンス、低コギングトルク
製品モデル
SMC40S-0005-30□■K-5DSU
比較に追加
比較を解除
SMC40S-0010-30□■K-5DSU
比較に追加
比較を解除
SMC60S-0020-30□■K-5DSU
比較に追加
比較を解除
SMC60S-0040-30□■K-5DSU
比較に追加
比較を解除
SMC60S-0060-30Q■K-5DSU
比較に追加
比較を解除
SMC80S-0075-30□■K-5DSU
比較に追加
比較を解除
SMC80S-0100-30□■K-5DSU
比較に追加
比較を解除
SMC80S-0120-30Q■K-5DSU
比較に追加
比較を解除
SMC80S-0150-30QQK-5DSU
比較に追加
比較を解除
SMC60S-0020-30W■K-5DCH
比較に追加
比較を解除
SMC60S-0040-30W■K-5DCH
比較に追加
比較を解除
SMC60S-0040-30ZBK-5DCX
比較に追加
比較を解除
SMC80S-0750-30W■K-5DCH
比較に追加
比較を解除
SMC80S-0075-30ZBK-5DCX
比較に追加
比較を解除
SMC80S-0100-30W■K-5DCH
比較に追加
比較を解除
SMC80S-0100-30ZBK-5DCX
比較に追加
比較を解除
SMC130D-0150-30W■K-4DSH-2
比較に追加
比較を解除
SMC130D-0250-30W■K-4DSH-2
比較に追加
比較を解除
SMC130D-0300-30W■K-4DSH-2
比較に追加
比較を解除
SMC130D-0300-20W■K-4DSH-2
比較に追加
比較を解除
スライドしてさらに表示
折りたたむ
展開する
定格線圧 U（V）
48
48
48
48
48
48
48
48
48
48
48
48
--
--
--
--
--
--
--
--
定格電力Pn(W)
50
100
200
400
600
750
1000
1200
1500
200
400
400
--
--
--
--
--
--
--
--
额定转矩 Tn(Nm)
0.16
0.32
0.64
1.27
1.91
2.39
3.18
3.82
4.77
0.64
1.27
1.27
--
--
--
--
--
--
--
--
定格速度 Nn (rpm)
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
3000
--
--
--
--
--
--
--
--
定格電流 In(A)
1.5
3.2
5.7
10.6
16.5
19.9
26.4
34
36
5.7
10.6
10.6
--
--
--
--
--
--
--
--
MAX torqueTm(Nm)
0.48
0.96
1.92
3.81
5.73
7.17
9.57
11.5
14.31
1.28
2.54
2.54
--
--
--
--
--
--
--
--
最大電流 Im（A）
5.5
11.5
18.2
33.9
52.8
62.7
83
107.1
112.2
11.4
21.2
21.2
--
--
--
--
--
--
--
--
電気時間定数τe(ms)
1.1
1.27
1.98
2.52
2.08
4.05
4.26
Q:4.2
A:4.35
4.36
1.66
1.71
1.71
--
--
--
--
--
--
--
--
機械時間定数 1τm(ms)
1
0.67
1.4
1.02
0.91
0.8
0.63
0.59
0.43
0.69
0.67
/
--
--
--
--
--
--
--
--
Mechanical time constant 2τm(ms)
1
(with brake)
0.67
(with brake)
1.42
(with brake)
1.03
(with brake)
0.92
(with brake)
0.8(with brake)
0.66(with brake)
Q:0.85(with brake)
A:0.6(with brake)
0.6(with brake)
0.72
(with brake)
0.68
(with brake)
0.68
(with brake)
--
--
--
--
--
--
--
--
EMF定数 Ke (V/krpm)
7
7
7.5
8
7.5
8
8
7.65
8.8
7.5
8
8
--
--
--
--
--
--
--
--
トルク定数 Kt (Nm/A)
0.11
0.11
0.124
0.132
0.124
0.13232
0.13
0.127
0.146
0.124
0.132
0.132
--
--
--
--
--
--
--
--
ローターの慣性モーメント 1 Jm(Kg•cm2)
0.018
0.033
0.2
0.38
0.65
1.027
1.36
1.36
1.64
0.11
0.26
/
--
--
--
--
--
--
--
--
ローターのモーメントオブインエルティア 2 Jm(Kg•cm2)
0.021(with brake）
0.036(with brake）
0.204(with brake）
0.384(with brake）
0.654(with brake）
1.099(with brake）
1.41(with brake）
1.41(with brake）
1.901(with brake）
0.114
(with brake）
0.264
(with brake）
0.264
(with brake）
--
--
--
--
--
--
--
--
折りたたむ
展開する
フランジ
40
40
60
60
60
80
80
80
80
60
60
60
--
--
--
--
--
--
--
--
インエルシア
Small inertia
Small inertia
Small inertia
Small inertia
Small inertia
Small inertia
Small inertia
Small inertia
Small inertia
Small inertia
Small inertia
Small inertia
--
--
--
--
--
--
--
--
極対数
5
5
5
5
5
5
5
5
5
5
5
5
--
--
--
--
--
--
--
--
Insulation class
F
F
F
F
F
F
F
F
F
F
F
F
--
--
--
--
--
--
--
--
最大径向力 Fr(N)
120
120
180
180
180
335
335
335
335
40
40
40
--
--
--
--
--
--
--
--
最大軸受力 Fa(N)
60
60
90
90
90
167.5
167.5
167.5
167.5
30
30
30
--
--
--
--
--
--
--
--
冷却方法
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
Totally enclosed, self-cooling
--
--
--
--
--
--
--
--
保護レベル
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
Body IP65, shaft end (excluding oil seal) IP54, shaft end installed with oil seal IP65
--
--
--
--
--
--
--
--
折りたたむ
展開する
温度
﹣20～40℃
﹣20～40℃
﹣20～40℃
﹣20～40℃
﹣20～40℃
﹣20～40℃
﹣20～40℃
﹣20～40℃
﹣20～40℃
﹣20～40℃
﹣20～40℃
﹣20～40℃
--
--
--
--
--
--
--
--
湿度
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
Below 90% RH (no condensation)
--
--
--
--
--
--
--
--
環境
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
Keep away from corrosion, flammable gases, oil droplets, dust
--
--
--
--
--
--
--
--
高度
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
The highest altitude is 2000m. From 1000 to 2000m, the power decreases by 1.5% per 100m increase
--
--
--
--
--
--
--
--
