RP20シリーズ リモートI/O
バス方式のリモートI/Oシステム、バス方式モーションコントローラに対応
RP20シリーズ リモートI/Oシステム
高速・高応答：LVDS＋FPGA方式にアップグレードし、通信速度は最大100Mbps、μs単位のI/O応答を実現。
同一方式で高い共通性：カプラのバックプレーンはAK8X0シリーズPLCバックプレーンと同等の方式を採用し、I/Oモジュールのインターフェースを共通化。
豊富な拡張性・高点数：1台のカプラで最大16の拡張モジュールに対応、拡張I/Oポイント数は最大256点。
多プロトコル対応・高い互換性：EtherCAT、CANopenなど複数の工業用通信プロトコルに対応し、既存のオートメーションシステムへの統合が容易です。
製品モデル

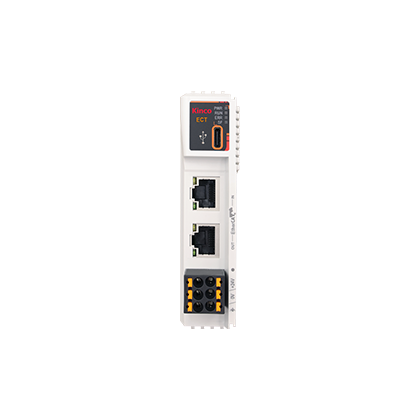

RP20C-ECT
比較に追加
比較を解除
RP20C-CAN
比較に追加
比較を解除
RP20-0016DTP
比較に追加
比較を解除
RP20-0016DTN
比較に追加
比較を解除

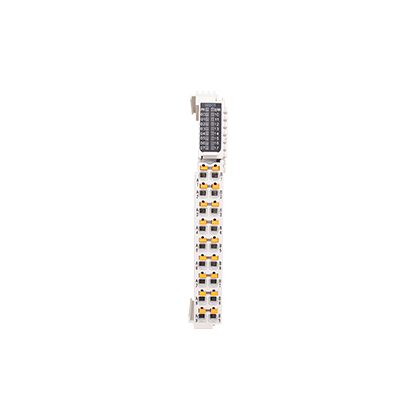

RP20-1600DT
比較に追加
比較を解除

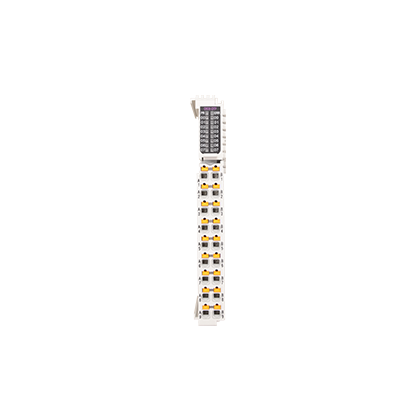

RP20-0808DTP
比較に追加
比較を解除

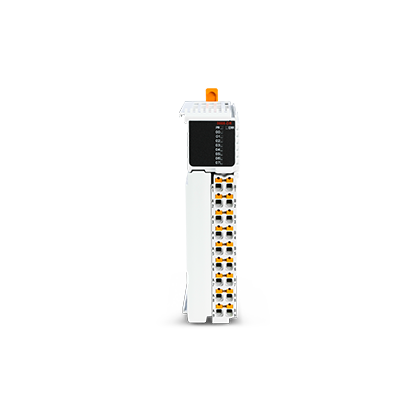

RP20-0008DR
比較に追加
比較を解除
RP20-0400TC
比較に追加
比較を解除

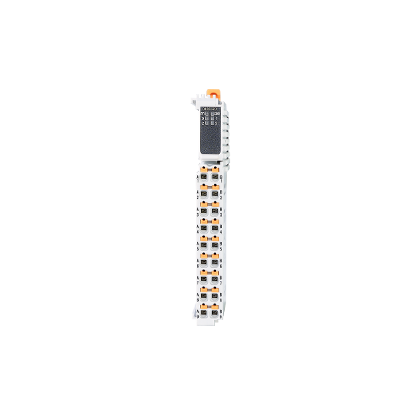

RP20-0400RD
比較に追加
比較を解除
RP20-0400IV
比較に追加
比較を解除
RP20-0004IV
比較に追加
比較を解除

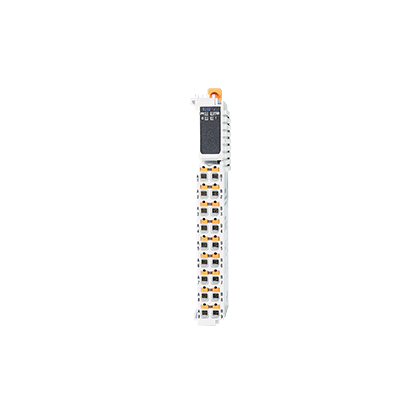

RP20-0202IV
比較に追加
比較を解除

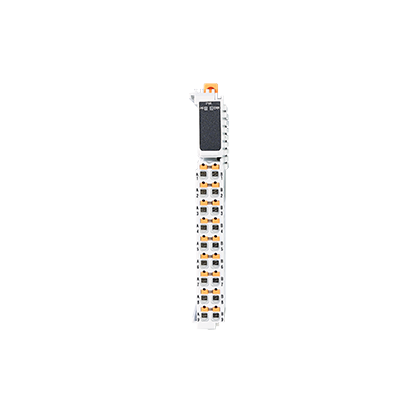

RP20-PW
比較に追加
比較を解除
スライドしてさらに表示
折りたたむ
展開する
モジュールタイプ
Coupler Type
Coupler Type
Digital Output Type
Digital Output Type
Digital Input Type
Mixed Digital I/O Type
Digital Output Type
Thermocouple Input Type
RTD Input Type
Analog Input Type
Analog Output Type
Mixed Analog I/O Type
Power Supply Module
機械寿命
/
/
/
/
/
/
2000W Times
/
/
/
/
/
/
電気生活
/
/
/
/
/
/
10W Times
/
/
/
/
/
/
カップラーバスプロトコル
EtherCAT
CANopen
/
/
/
/
/
/
/
/
/
/
/
バスインターフェース
2*RJ45
2*RJ45
/
/
/
/
/
/
/
/
/
/
/
バスレート
100Mbps
Supports 1Mbps，500kbps，250kbps，125kbps
/
/
/
/
/
/
/
/
/
/
/
Maximum Distance Between Stations
100m
Maximum 40m at 1Mbps,Maximum 1000m at 125kbps
/
/
/
/
/
/
/
/
/
/
/
K-bus Expansion Bus Communication Rate
100Mbps
100Mbps
/
/
/
/
/
/
/
/
/
/
/
更新方法
DC-Sync Mode:Minimum Support 1ms
SM-Sync Mode
I/O Update:60㎲ with 16 Modules
/
/
/
/
/
/
/
/
/
/
/
拡張仕様
Supports Up to 16 RP20 Expansion Modules
Supports Up to 16 RP20 Expansion Modules
/
/
/
/
/
/
/
/
/
/
/
Indicator Light
PRW:Indicates Power Status
RUN:Indicates Expansion Bus Operating Status
ERR:Indicates EtherCAT Bus Error
SF:Indicates Expansion Bus Error
PRW:Indicates Power Status
RUN:Indicates Expansion Bus Operating Status
CAN:Indicates CAN Bus Communication Status
ERR:Indicates EtherCAT Bus Error
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
When an Output Signal is Present,the Corresponding LED Lights Up (Green)
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
When an Output Signal is Present,the Corresponding LED Lights Up (Green)
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
When an Output Signal is Present,the Corresponding LED Lights Up (Green)
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
When an Input Signal is Present,the Corresponding LED Lights Up (Green)
When an Output Signal is Present,the Corresponding LED Lights Up (Green)
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
When an Output Signal is Present,the Corresponding LED Lights Up (Green)
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
Red LED per Channel Indicates Input Value Exceeds Limit
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
Red LED per Channel Indicates Input Value Exceeds Limit
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
Red LED per Channel Indicates Input Value Exceeds Limit
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
PR:Flashing Indicates Power-On Success,Steady On Indicates Communication Connection Successful
ERR:Indicates Operating Fault
Red LED per Channel Indicates Input Value Exceeds Limit
PR: Indicates Power Normal
ERR: Indicates Power Fault
折りたたむ
展開する
設置方法
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
寸法（W*H*D）
24.3*100*80mm
24.3*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
12*100*80mm
重量
≈120g
≈120g
≈70g
≈70g
≈70g
≈70g
≈70g
≈68g
≈68g
≈70g
≈70g
≈70g
≈70g
折りたたむ
展開する
定格入力電圧
/
/
/
/
DC 24V
DC 24V
/
/
/
/
/
/
/
额定功率
6W（Unit power）/20W（Full load power）
2.5W
/
/
/
/
/
/
/
/
/
/
12W
Maximum Input Power
/
20W(with Maximum Number of Expansion Modules)
/
/
/
/
/
/
/
/
/
/
/
インターフェースパワーサプライの定格入力電流
/
/
/
/
/
/
/
/
/
/
/
/
60mAA(Typical at 5V)
バス電源の定格出力電圧
DC 5V (DC 4.75V~DC 5.25V)
DC 5V (DC 4.75V~DC 5.25V)
/
/
/
/
/
/
/
/
/
/
DC 5V (DC 4.75V~DC 5.25V)
バスパワーサプライの定格出力電流
2.0A(Typical at 5V)
2.0A(Typical at 5V)
/
/
/
/
/
/
/
/
/
/
2.0A(Typical at 5V)
パワーアウトプットデレーティング
Derate to 80% When Operating at 55℃(Output Current ≤1.6A)
Derate to 80% When Operating at 55℃(Output Current ≤1.6A)
/
/
/
/
/
/
/
/
/
/
Derate to 80% When Operating at 55℃(Output Current ≤1.6A)
定格出力電圧
/
/
DC 24V(DC 20.4V~DC 28.8V)
DC 24V(DC 20.4V~DC 28.8V)
/
DC24V(DC 20.4V~DC 28.8V)
AC 250V/DC 30V
/
/
/
/
/
/
入力電流
/
/
/
/
3.5mA@ DC 24V
3.5mA@ DC 24V
/
/
/
/
/
/
/
Output Leakage Current
/
/
Maximun 10㎂
Maximun 10㎂
/
Maximun 10㎂
/
/
/
/
/
/
/
Rated Input Voltage of Terminal Power Supply
/
/
/
/
/
/
DC 24V(DC 20.4V~DC 28.8V)
/
/
/
DC 24V(DC 20.4V~DC 28.8V)
DC 24V(DC 20.4V~DC 28.8V)
/
ターミナル電源の定格入力電流
/
/
/
/
/
/
60mA（Typical at 24V）
/
/
/
100mA（Typical at 24V）
80mA（Typical at 24V）
/
软件滤波时间
/
/
/
/
Supports Configuration
Supports Configuration
/
/
/
/
/
/
/
入力インピーダンス
/
/
/
/
6.8k
6.8k
/
/
/
Current Mode:100Ω
Voltage Mode:50kΩ
/
Current Mode:100Ω
Voltage Mode:50kΩ
/
外部負荷
/
/
/
/
/
/
/
/
/
/
Current Mode:500Ω
Voltage Mode:1kΩ
Current Mode:500Ω
Voltage Mode:1kΩ
/
入力制限
/
/
/
/
/
/
/
/
/
Current:±30mA,Voltage:±15V
/
/
/
Output Load
/
/
Resistive Load:12A/Point,48W/Module
Inductive Load:6W/Point,24W/Module
Lamp Load:5W/Point,20W/Module
Resistive Load:12A/Point,48W/Module
Inductive Load:6W/Point,24W/Module
Lamp Load:5W/Point,20W/Module
/
Resistive Load:12A/Point,48W/Module
Inductive Load:6W/Point,24W/Module
Lamp Load:5W/Point,20W/Module
Resistive Load:2A/Point,8A/Module
Inductive Load:1A/Point,4A/Module
Lamp Load:1.25A/Point,5A/Module
/
/
/
/
/
/
信号限界
/
/
/
/
/
/
/
/
/
/
/
Current Input ≤24mA,Voltage Input ≤12V
/
最大スイッチング周波数
/
/
100 Hz,Resistive Load
100 Hz,Resistive Load
/
100 Hz,Resistive Load
20 Times/min
/
/
/
/
/
/
ホットスワップ
/
/
Not Supported
Not Supported
Not Supported
Not Supported
Not Supported
/
/
Not Supported
Not Supported
Not Supported
/
K-bus Current Consumption
/
/
135mA(DC 5V,Room Temperature)
135mA(DC 5V,Room Temperature)
135mA(DC 5V,Room Temperature)
135mA(DC 5V,Room Temperature)
135mA(DC 5V,Room Temperature)
160mA(DC 5V,Room Temperature)
160mA(DC 5V,Room Temperature)
150mA(DC 5V,Room Temperature)
140mA(DC 5V,Room Temperature)
150mA(DC 5V,Room Temperature)
/
Isolation
/
/
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
保護機能
Overcurrent Protection
Reverse Polarity Protection
Surge Protection
Overcurrent Protection
Reverse Polarity Protection
Surge Protection
Overcurrent Protection
Surge Protection
Overcurrent Protection
Surge Protection
/
Overcurrent Protection
Surge Protection
Overcurrent Protection
Surge Protection
/
/
/
/
/
Overcurrent Protection
Reverse Polarity Protection
Surge Protection
折りたたむ
展開する
プログラミングソフトウェア
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
Supports IEC61131-3 standard CoDeSys programming software
折りたたむ
展開する
デジタル入力チャネル
/
/
/
/
16 channels,supports NPN/PNP
8 channels,supports PNP
/
/
/
/
/
/
/
デジタル出力チャネル
/
/
16 Channels,Transistor-Type,supports PNP
16 Channels,Transistor-Type,supports NPN
/
8 channels,supports PNP
8 Channels,Relay Type,Dry Contact,Normally Open Contact
/
/
/
/
/
/
オン遅延
/
/
＜50㎲
＜50㎲
＜50㎲
＜50㎲
＜50㎲
/
/
/
/
/
/
オフ遅延
/
/
＜50㎲
＜50㎲
＜50㎲
＜50㎲
＜50㎲
/
/
/
/
/
/
Logic “0” Signal Level
/
/
MOSFET Off
MOSFET Off
/
MOSFET Off
Relay Off
/
/
/
/
/
/
ロジック「1」信号レベル
/
/
MOSFET On
MOSFET On
/
MOSFET On
Relay On
/
/
/
/
/
/
ロジック「0」の最大入力電圧
/
/
/
/
5V，0.8mA
5V，0.8mA
/
/
/
/
/
/
/
ロジック "1" の最小入力電圧
/
/
/
/
15V，2mA
15V，2mA
/
/
/
/
/
/
/
On-Resistance
/
/
Typical:0.15Ω,Maximum:0.3Ω
Typical:0.26Ω,Maximum:0.56Ω
/
Typical:0.15Ω,Maximum:0.3Ω
Typical:0.15Ω,Maximum:0.3Ω
/
/
/
/
/
/
アナログ入力チャネル
/
/
/
/
/
/
/
4 Channels
4 Channels
4 Channels
/
2 Channels
/
アナログ出力チャネル
/
/
/
/
/
/
/
/
/
/
4 Channels
2 Channels
/
解像度
/
/
/
/
/
/
/
24 Bits
24 Bits
16 Bits
16 Bits
12 Bits
/
センサータイプ
/
/
/
/
/
/
/
Type J,Type K,Type E,Type S,Type T,mV Signal
Pt100、Pt1000、Cu50、Cu100
/
/
/
/
信号タイプ
/
/
/
/
/
/
/
/
/
4~20mA、-20~20mA、1~5V、-10~10V
4~20mA、-20~20mA、1~5V、-10~10V
4~20mA、-20~20mA、1~5V、-10~10V
/
接続方法
/
/
/
/
/
/
/
2-Wire
2-Wire,3-Wire
2-Wire,3-Wire
/
/
/
温度分解能
/
/
/
/
/
/
/
0.1℃
0.1℃
0.1℃
/
/
/
コールドジャンクション補償
/
/
/
/
/
/
/
Internal Compensation, External Compensation
/
/
/
/
/
測定精度
/
/
/
/
/
/
/
±0.2% F.S
±0.2% F.S
±0.2% F.S
±0.2% F.S
±0.3% F.S
/
変換率（1チャネルあたり）
/
/
/
/
/
/
/
≈1 Time/s
≈1 Time/s
50 Time/s
50 Time/s
15 Time/s
/
滤波方法
/
/
/
/
/
/
/
No Filter / Averaging Filter
No Filter / Averaging Filter
No Filter / Averaging Filter
/
/
/
チャネル診断
/
/
/
/
/
/
/
Over-Limit Alarm,Wire Break Alarm
Over-Limit Alarm,Wire Break Alarm
Wire Break Alarm(Supported Only in 1-5V and 4-20mA Modes)
/
Wire Break Alarm(Supported Only in 1-5V and 4-20mA Modes)
/
HSC通道
/
/
/
/
/
/
/
/
/
/
/
/
/
高速脉冲输出通道
/
/
/
/
/
/
/
/
/
/
/
/
/
折りたたむ
展開する
気候条件
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
Ambient temperature: -40~+70℃
Relative humidity: 10%~95%,no condensation
Atmospheric pressure: equivalent to an altitude of 0~3000 meters
机械条件
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall: With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
折りたたむ
展開する
気候条件
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
Ambient temperature: open-type device with natural ventilation,-20~+55℃
Relative humidity: 10%~95%,non-condensing
Atmospheric pressure: altitude not exceeding 2000 meters
Pollution level: suitable for pollution level 2
机械条件
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
電磁互換性(EMC)
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
EMC Immunity Level: Zone B,IEC63313-2
Electrostatic Discharge: Air discharge 8kV,Contact discharge 4kV
Performance Level A
Surge: DC power 0.5kV CM,0.5kV DM;
IO and communication ports: 1kV CM
Performance Level A
Fast Transient Burst: Power coupling 2kV,5kHz;IO and communication coupling 1kV,5kHz
Performance Level A
冷却タイプ
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
折りたたむ
展開する
保護レベル
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
折りたたむ
展開する
認証
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
