CMシリーズ ステッピングドライバ
新世代16ビットDSP制御技術
CM ステッピングドライバ
製品モデル

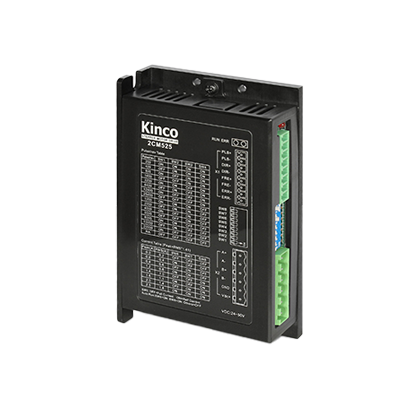

2CM525
比較に追加
比較を解除
2CM545
比較に追加
比較を解除

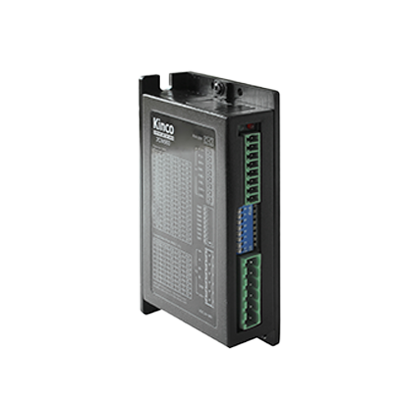

2CM560
比較に追加
比較を解除

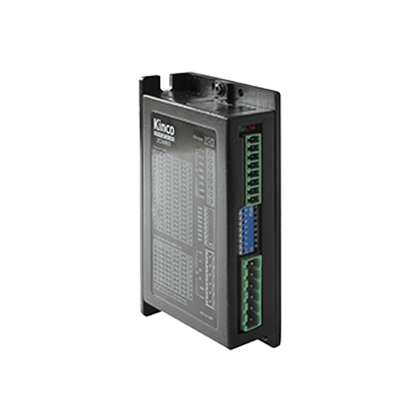

2CM860
比較に追加
比較を解除

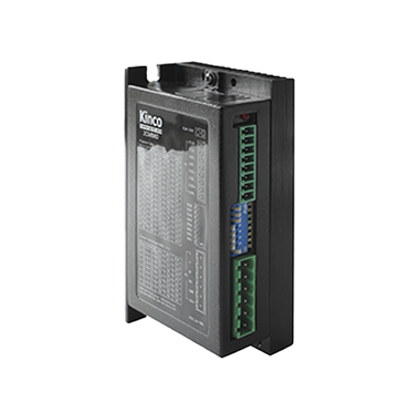

2CM880
比較に追加
比較を解除

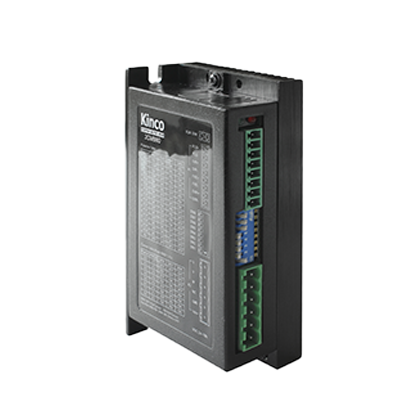

3CM880
比較に追加
比較を解除

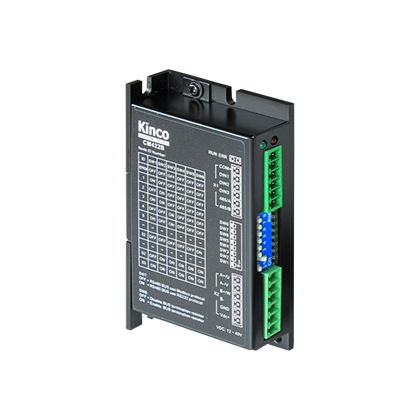

CM422B
比較に追加
比較を解除

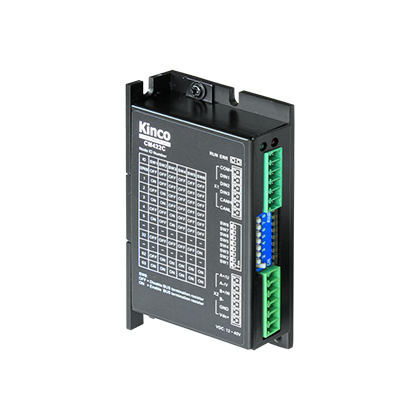

CM422C
比較に追加
比較を解除

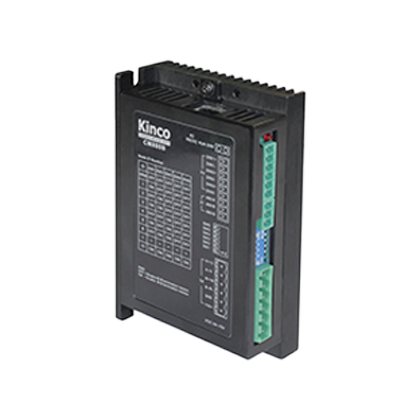

CM880A
比較に追加
比較を解除
CM880B
比較に追加
比較を解除

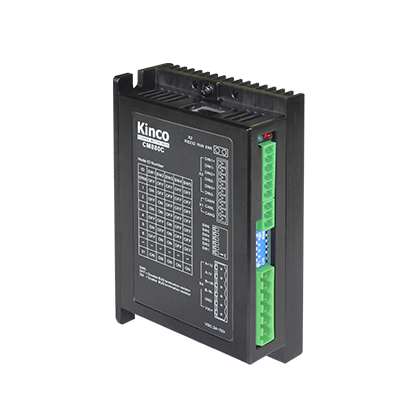

CM880C
比較に追加
比較を解除

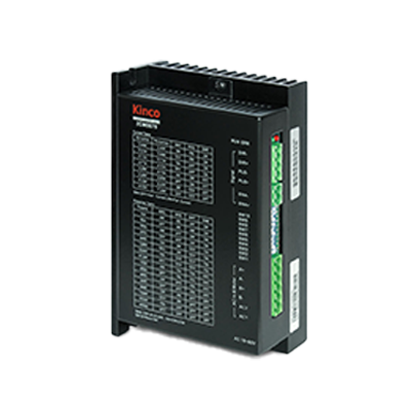

2CM0870
比較に追加
比較を解除
スライドしてさらに表示
折りたたむ
展開する
入力電圧
24～50VDC
24～50VDC
24～50VDC
24～70VDC
24～70VDC
24～70VDC
12VDC～40VDC
12VDC～40VDC
24VDC～70VDC
24VDC～70VDC
24VDC～70VDC
18-80VAC
オーバーヒート保護
80°C(Temperature ofthermistor)
85°C(Temperature ofthermistor)
80°C(Temperature ofthermistor)
80°C(Temperature ofthermistor)
80°C(Temperature ofthermistor)
80°C(Temperature ofthermistor)
80°C(Temperature ofthermistor)
80°C(Temperature ofthermistor)
80°C(Temperature ofthermistor)
80°C(Temperature ofthermistor)
80°C(Temperature ofthermistor)
80°C(Temperature ofthermistor)
Phase current(Peak)
0.3/0.6/0.8/1.2/1.4/1.6/2.0/2.5.Total of 8 setting values（unit：A）
1/1.5/2/2.5/3/3.5/4/4.5.Total of 8 setting values（unit：A）
1.8/2.4/3/3.6/4.2/4.8/5.4/6.Total of 8 setting values（unit：A）
1.8/2.4/3/3.6/4.2/4.8/5.4/6.Total of 8 setting values（unit：A）
2.4/3.2/4/4.8/5.6/6.4/7.2/8.Total of 8 setting values（unit：A）
2.4/3.2/4/4.8/5.6/6.4/7.2/8.Total of 8 setting values（unit：A）
0.1～2.5A （Peak）
0.1～2.5A （Peak）
0.15～8A （Peak）
0.15～8A （Peak）
0.15～8A （Peak）
2.4/3.08/3.77/4.45/5.14/5.83/6.52/7.2.Total of 8 setting values（unit：A）
マイクロステップ
200-25600 Pulse/rev,15 subdivision levels in total
200~25600 Pulse/rev，15 subdivision levels in total
400~51200 Pulse/rev
400~51200 Pulse/rev
400~51200 Pulse/rev
400~25600 Pulse/rev
KincoStep setting of upper computer software
KincoStep setting of upper computer software
KincoStep setting of upper computer software
KincoStep setting of upper computer software
KincoStep setting of upper computer software
KincoStep setting of upper computer software
適応可能なモーター
42/57 series 2-phase hybird stepper motor
57 series 2-phase hybird stepper motor
57 series 2-phase hybird stepper motor
57 series 2-phase hybird stepper motor
57/86 series 2-phase hybird stepper motor
3-phase hybird stepper motor
42 series and under 42 series 2&3 phase
hybrid stepper motor
42 series and under 42 series 2&3 phase
hybrid stepper motor
2-phase& 3-phase hybird stepper motor
2-phase& 3-phase hybird stepper motor
2-phase& 3-phase hybird stepper motor
57 and 86 series 2-phase hybrid stepper motor
入力信号
PLS (CW)、DIR(CCW)、FREE，
Input voltage:5~24VDC,
Input current:8mA@5vDC,12mA@24VDC
PLS (CW)、DIR(CCW)、FREE，
Input voltage:5~24VDC,
Input current:8mA@5vDC,12mA@24VDC
PLS (CW)、DIR(CCW)、FREE，
Input voltage:5~24VDC,
Input current:8mA@5vDC,12mA@24VDC
PLS (CW)、DIR(CCW)、FREE，
Input voltage:5~24VDC,
Input current:8mA@5vDC,12mA@24VDC
PLS (CW)、DIR(CCW)、FREE，
Input voltage:5~24VDC,
Input current:8mA@5vDC,12mA@24VDC
PLS (CW)、DIR(CCW)、FREE，
Input voltage:5~24VDC,
Input current:8mA@5vDC,12mA@24VDC
3-way optocoupler digital signal common-anode input,Inputvoltage:5~24VDc
Inputcurrent:8mA@5vDc,12mA@24VDC
Valid signal: COM+ to DINX is greater than 3VDC; invalid signal: COM+ to DINX is less than 1VDC
3-way optocoupler digital signal common-anode input,Inputvoltage:5~24VDc
Inputcurrent:8mA@5vDc,12mA@24VDC
Valid signal: COM+ to DINX is greater than 3VDC; invalid signal: COM+ to DINX is less than 1VDC
6-way optocoupler digital signal common-anode input,Inputvoltage:5~24VDc
Inputcurrent:8mA@5vDc,12mA@24VDC
Valid input signal:>3vDC
Invalid input signal:<1VDC
DIN4~DIN6:Input voltage:12~24vDC
Input current:4mA@12vDc,8mA@24VDC
Valid input signal:>8vDC
Invalid input signal:<5vDC
3-way optocoupler digital signal common-anode input,Inputvoltage:5~24VDc
Inputcurrent:8mA@5vDc,12mA@24VDC
Valid input signal:>3vDC
Invalid input signal:<1VDC
3-way optocoupler digital signal common-anode input,Inputvoltage:5~24VDc
Inputcurrent:8mA@5vDc,12mA@24VDC
Valid input signal:>3vDC
Invalid input signal:<1VDC
PLS(CW),DIR(CCW), ENAsignal;
Inputvoltage: 5vDc,inputcurrent5mA@5vDc
Valid input signal: bigger than 4vDc, Invalid
input signal: smaller than 1.5vDc
PLS, DlR signal max input frequency: 200KHz,
min pulse width: 2.5us
制御モード
Pulse control:PLS+DIR,CW/CCW
Pulse control:PLS+DIR,CW/CCW
Pulse control:PLS+DIR,CW/CCW
Pulse control:PLS+DIR,CW/CCW
Pulse control:PLS+DIR,CW/CCW
Pulse control:PLS+DIR,CW/CCW
l/O control; Modbus control;
Pulse control: PLS+DIR, CW/CCW
l/O control; CANopen control;
Pulse control: PLS+DIR, CW/CCW
l/O control;
Pulse control: PLS+DIR, CW/CCW、A+B
l/O control; Modbus control;
Pulse control: PLS+DIR, CW/CCW
l/O control; CANopen control;
Pulse control: PLS+DIR, CW/CCW
Pulse control: PLS+DIR, CW/CCW
出力信号
ERR, open collectoroutput, maximum current:100mA
ERR, open collectoroutput, maximum current:100mA
ERR, open collectoroutput, maximum current:100mA
ERR, open collectoroutput, maximum current:100mA
ERR, open collectoroutput, maximum current:100mA
ERR, open collectoroutput, maximum current:100mA
/
/
1-way output
Max. output current:100mA
Max. voltage drop:0.8vDc@100mA
Max. withstand voltage:30VDC
/
/
/
操作インジケーター
Combination of RUN and ERR LEDindicates
different status
Combination of RUN and ERR LEDindicates
different status
Combination of RUN and ERR LEDindicates
different status
Combination of RUN and ERR LEDindicates
different status
Combination of RUN and ERR LEDindicates
different status
Combination of RUN and ERR LEDindicates
different status
Combination of RUN and ERR LEDindicates
different status
Combination of RUN and ERR LEDindicates
different status
Combination of RUN and ERR LEDindicates
different status
Combination of RUN and ERR LEDindicates
different status
Combination of RUN and ERR LEDindicates
different status
Combination of RUN and ERR LEDindicates
different status
Protection circuit
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
Overvoltage, under voltage, over current, over heat
冷却方法
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
Natural air cooling
重量（正味重量）
0.25KG
0.25KG
0.25KG
0.25KG
0.253KG
0.253KG
110g
110g
0.29KG
0.25KG
0.25KG
0.696KG
Dimensions
118*75.5*25.4 mm（ without teeth)
118*75.5*25.4 mm（ without teeth)
118*75.5*25.4 mm（ without teeth)
118*75.5*25.4 mm（ without teeth)
118*75.5*34 mm（with teeth）
118*75.5*34 mm（with teeth）
93*56*21mm
93*56*21mm
108*75.5*34 mm（with teeth）
118*75.5*34 mm（with teeth）
118*75.5*34 mm（with teeth）
151x97.5x53
侵入防止
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
折りたたむ
展開する
Over-voltage protection
>85VDC
>85VDC
>85VDC
>85VDC
>85VDC
>85VDC
>85VDC
>85VDC
>85VDC
>85VDC
>85VDC
>85VDC
アンダーボルト保護
<15VDC
<15VDC
<15VDC
<15VDC
<15VDC
<15VDC
<15VDC
<15VDC
<15VDC
<15VDC
<15VDC
<15VDC
折りたたむ
展開する
動作環境
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Avoid the environment with a great amount of
metallic powder, oil mist, or erosive gases.
Operation humidity
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
<85%,RH(non-condensing orwater drops)
動作温度
0℃～+40℃
0℃～+40℃
0℃～+40℃
0℃～+40℃
0℃～+40℃
0℃～+40℃
0℃～+40℃
0℃～+40℃
0℃～+40℃
0℃～+40℃
0℃～+40℃
0℃～+40℃
保管温度
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
-20℃～+70℃
