iSMD 一体型サーボドライブモータ
一体型設計、現場分散設置で空間を効率的に活用
すぐにご相談

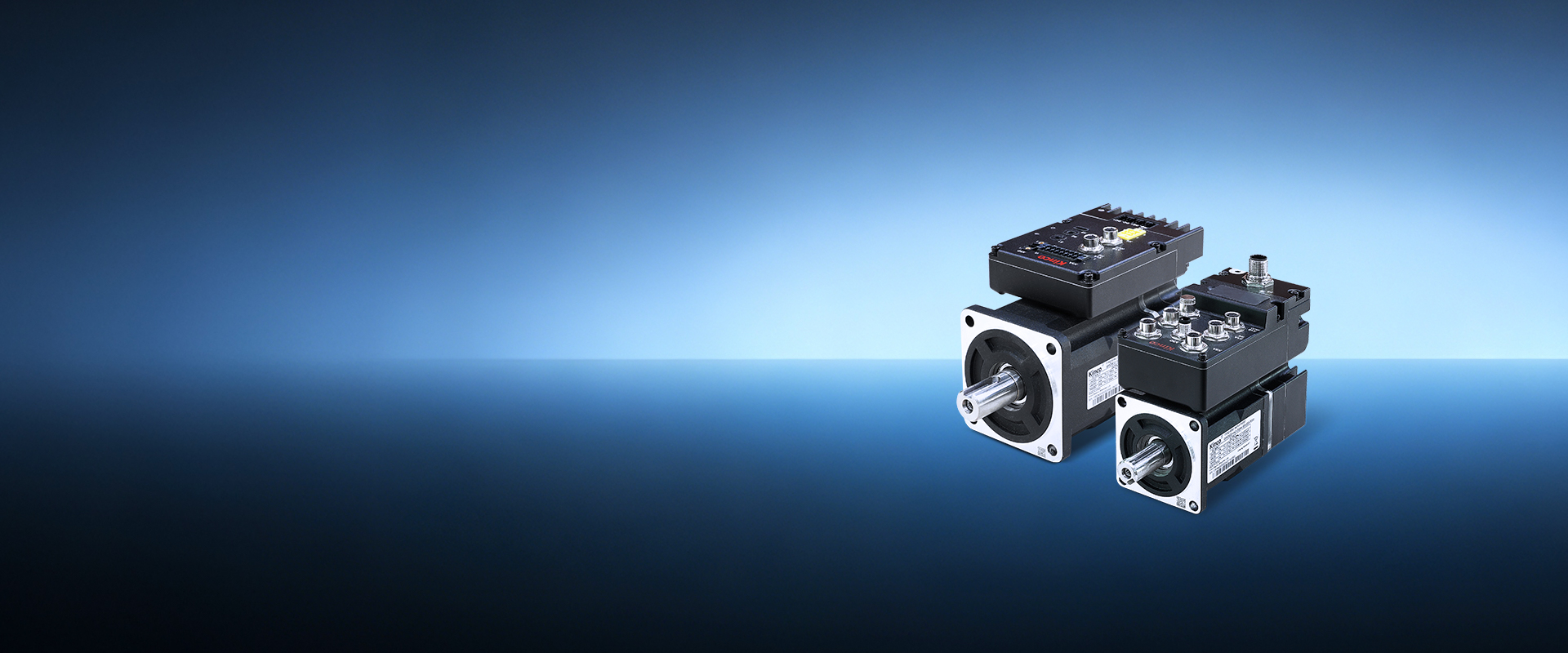

iSMDシリーズ 一体型サーボドライブモータ
iSMDシリーズは、Kincoのi-Kinco技術理念のもとに生まれた重要製品です。新開発の自動チューニングプラットフォームに、適応型ノッチフィルタとSカーブ技術を組み合わせることで振動・騒音を効果的に抑制し、モータの安定稼働を実現。脱調防止機能、モータ過熱保護、過電圧保護、短絡保護、ドライバ過熱保護を搭載し、設備と作業者の安全を確保します。
24～60VDCの広電圧入力に対応し、出力レンジは400W～1000W。コンパクトな機体設計で、モータ・ドライバ・エンコーダ・ブレーキなどを極限まで統合し、現場設置・制御盤レス化を実現。バッテリー式多回転エンコーダまたはメカニカル式多回転エンコーダに対応します。
本体はIP20またはIP65の防護等級に対応、使用温度は-20℃～40℃。
CANopen、Modbus RTU、EtherCAT、Profinetなど複数の通信方式に対応。
CE認証を満たし、ROHS2.0およびUL認証基準に準拠、STO安全機能にも対応。
| Model parameter | iSMD-IP20 | iSMD-IP65 | ||||
| iSMD60D-040-DQ■K-A▲-000 iSMD60D-040-DQ■K-EA-000 iSMD60D-040-DQ■K-PA-000 |
iSMD80D-075-DQ■K-A▲-000 iSMD80D-075-DQ■K-EA-000 iSMD80D-075-DQ■K-PA-000 |
iSMD80D-100-DQ■K-A▲-000 iSMD80D-100-DQ■K-E▲-000 iSMD80D-100-DQ■K-PA-000 |
iSMD60D-040-DQ■K-E▲-000-PXXX | iSMD80D-075-DQ■K-E▲-000-PXXX | ||
| Input | Power supply | 48VDC,10A Allowable fluctuation range 24V~60V |
48VDC,17A Allowable fluctuation range 24V~60V |
48VDC,24A Allowable fluctuation range 24V~60V |
48VDC,10A Allowable fluctuation range 24V~60V |
48VDC,17A Allowable fluctuation range 24V~60V |
| Logic power | Not support STO function mode：24VDC, with fuse 60V@0.5A Supports STO function model：24V, logic power is isolated power supply, isolation voltage 500VDC |
Not support STO function mode：24VDC, with fuse 60V@0.5A Supports STO function model：24V, logic power is isolated power supply, isolation voltage 500VDC |
||||
| complete machine | Max continuous output current（Arms） | 10 | 16.2 | 21.2 | 10 | 16.2 |
| Peak current(Peak) | 48AP | 100AP | 100AP | 48AP | 100AP | |
| Rated power Pn(W) | 400 | 750 | 1000 | 400 | 750 | |
| Rated speed nN(rpm) | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Max speed nM(rpm) | 4000 | 4000 | 3500 | 4000 | 4000 | |
| Max torque Tn(N.m) | 1.27 | 2.39 | 3.18 | 1.27 | 2.39 | |
| Max torque Tm (N.m) | 3.81 | 7.17 | 9.54 | 3.81 | 7.17 | |
| Rotary inertia Jm(Kg·cm²) | 0.48 | 1.66 | 2.27 | 0.48 | 1.66 | |
| 0.49（With brake） | 1.72（With brake） | 2.33（With brake） | 0.49（With brake） | 1.72（With brake） | ||
| Brake holding torque(N.m) | 2 | 4 | 4 | 2 | 4 | |
| Brake rated power(W) | 7.6 | 11.5 | 11.5 | 7.6 | 11.5 | |
| Brake rated voltage(VDC) | 24 | 24 | 24 | 24 | 24 | |
| Duty | S1 (Continuous duty), based on the measured value of SMK60D_400W and SMK80D_750W ； S3 (60%-10min), based on the measured value of iSMD_1000W. |
|||||
| Energy consumption brake | Need external brake resistance（iSMD60D≥5Ω/100W；iSMD80D≥5Ω/400W） | Need external brake resistance module（Model：PRC-69-40-20） | ||||
| Energy consumption brake voltage absorption point | 63V±2V(default) | |||||
| Overvoltage alarm voltage | 68V±2V(default) | |||||
| Undervoltage alarm voltage | 16V±2V(default) | |||||
| Cooling mode | Natural cooling | |||||
| Input specification | Digital input | 3-channel DI, Common COMI port, High level :12.5V~30VDC, Low level: 0~5VDC,Max frequency : 1KHz Min turn-on voltage＜11V，Max cut-off voltage＞5V，Max input voltage:30V, Complies with IEC61131-2 Type3，DI2 support probe function, Response time ≤10uS,Input impedance: 5.1KΩ |
4-channel DI, can be configured with source/sink input, High level :12.5V~30VDC, Low level: 0~5VDC, Max frequency : 1KHz Min turn-on voltage＜11V，Max cut-off voltage＞5V，Max input voltage:30V DI2 ,DI3 support probe function, Response time ≤10uS,complies with IEC61131-2 Type3,Input impedance: 2.7KΩ |
|||
| Pulse input | 2-channel pulse input,Pulse+direction, CCW+CW,phase A+phase B（12V～24V)，Max frequency:500KHz It can be multiplexed as 2-channel DI (DI4 and DI5 ) by software setting Min turn-on voltage＜11V，Max cut-off voltage＞5V，Max input voltage:30V,Complies with IEC61131-2 Type3. |
None | ||||
| Analog input | iSMD_AA/AS model：1-channel voltage type analog input, 12bit，-10V～+10V，differential connection method | None | ||||
| Output specification | 2-channel DO, open collector output, Max control voltage:30V, Max load current:100mA | 2-channel digital output, software can set active/passive output . For active output, external 24V logic power supply needs to be connected to the power socket terminal (X5). DO1 load current : 200mA, DO2 load current : 100mA, Max control voltage : 30V |
||||
| Type-C | Debug special, can use Kinco PC software connection | |||||
| STO | Applicable to models that support STO function; 2-channel STO, STO interface can be connected with the safety controller, safety switch, safety sensor, etc., to realize the safety function of the driver. Input voltage range：24VDC±15%，Input current:2.3mA(Type)，Logic level standard：IEC61131-2 Type1.Input resistance：10KΩ |
|||||
| Bus function | Modbus/RS485 | It supports a maximum 115.2K baud rate and can communicate with the controller using Modbus RTU | None | |||
| CANopen | It supports a maximum of 1MHz baud rate and can communicate with the controller using the CANopen | None | ||||
| EtherCAT | Support CoE(CiA402 protocol)and CSP/CSV/PP/PV/PT/HM mode，communication speed 100M | |||||
| PROFINET | Non periodic parameter read and write; Message 1, message 3, message 5, message 9, message 102, message 105, message 111; Support IRT synchronous mode; Support absolute value encoder; Support DSC dynamic servo control |
|||||
| Use environment | Working temperature | -20～40℃ | ||||
| Storage temperature | Short term storage (within 1 month): -20 ℃~65 ℃. Long term storage (over 1 month): -10 ℃ to 55 ℃. |
|||||
| Protection class | IP20 | IP65 | ||||
| Installation site | Dust-free, dry, lockable | |||||
| Installation method | Motor flange installation | |||||
| Altitude | Less than 3000m,power derating 1.5%/100m between 1000m and 3000m | |||||
| Atmospheric | 67kpa～106kpa | |||||

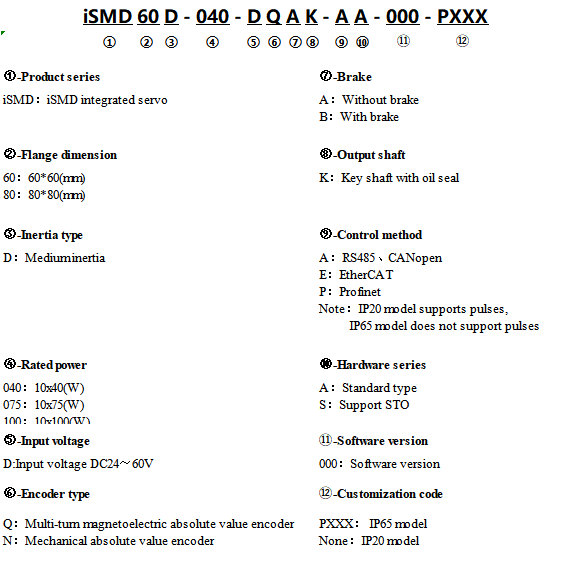

| Note： ■ = A：Without brake B：With brake ▲ = A：Without STO = S：With STO |
||||||
