MKシリーズ一体 IoT型
製品モデル

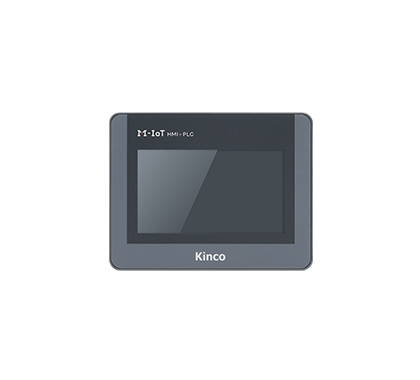

MK070E-33DT
比較に追加
比較を解除
MK070E-32DX
比較に追加
比較を解除

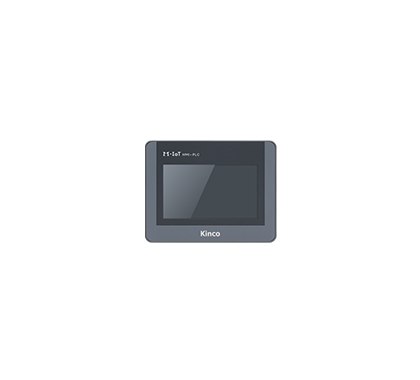

MK043E-20DT
比較に追加
比較を解除
MK070E-27DRT
比較に追加
比較を解除
MK043E-20DTC
比較に追加
比較を解除
MK043E-27DT
比較に追加
比較を解除
スライドしてさらに表示
PLC-I/OSpecifications
折りたたむ
展開する
デジタル入力チャネル
16 channels,supports NPN/PNP
16 channels,supports NPN/PNP
9 channels,supports NPN/PNP
12 channels,supports NPN/PNP
9 channels,supports NPN/PNP
10 channels,supports NPN/PNP
デジタル出力チャネル
14 Channels,Transistor-Type,supports PNP
4 Transistor-Type Channels (PNP)+12 Relay-Type Channels
9 Channels,Transistor-Type,supports PNP
12 Channels,Relay-Type
9 Channels,Transistor-Type,supports PNP
10 Channels,Transistor-Type,supports PNP
設定可能なデジタルI/Oチャネル
/
/
/
/
/
4 Transistor-Type Channels,Configurable as Input or Output via Wiring,Mixable
入力電圧
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
DC 24 V,Maximum Allowable:DC 30 V
入力電流
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
3.5mA@DC 24V
ロジック「0」の最大入力電圧
5V@0.7mA
5V@0.7mA
5V@0.7mA
5V@0.7mA
5V@0.7mA
5V@0.7mA
ロジック "1" の最小入力電圧
11V@2.5mA
11V@2.5mA
11V@2.5mA
11V@2.5mA
11V@2.5mA
11V@2.5mA
入力遅延時間
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
分離方法（入力）
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
出力電圧（トランジスタタイプ）
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
/
DC 24V,(DC 20.4V~DC 28.8V)
DC 24V,(DC 20.4V~DC 28.8V)
チャネルごとの出力电流 (トランジスタタイプ)
Rated current:200mA@24V DC
Rated current:200mA@24V DC
Rated current:200mA@24V DC
/
Rated current:200mA@24V DC
Rated current:200mA@24V DC
チャネルごとのインラッシュ電流（トランジスタアウトプット）
1A,duration≤1s
1A,duration≤1s
1A,duration≤1s
/
1A,duration≤1s
1A,duration≤1s
Output Leakage Current (Transistor Type)
Maximum 0.5㎂
Maximum 0.5㎂
Maximum 0.5㎂
/
Maximum 0.5㎂
Maximum 0.5㎂
出力インピーダンス（トランジスタタイプ）
Maximum 0.2Ω
Maximum 0.2Ω
Maximum 0.2Ω
/
Maximum 0.2Ω
Maximum 0.2Ω
出力遅延時間 (トランジスタタイプ)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
/
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
Turn-on delay:Standard channels 15㎲,high-speed channels 10㎲(50k)
Turn-off delay:Standard channels 60㎲,high-speed channels 6㎲(50k)
保護機能（トランジスタアウトプットタイプ）
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
/
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
分離方法（トランジスタアウトプットタイプ）
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
/
Optocoupler Isolation
AC 500V/1Min.
Optocoupler Isolation
AC 500V/1Min.
許容負荷電圧（リレータイプ）
/
DC 30V/AC 250V
/
DC 30V/AC 250V
/
/
許容負荷電流 (リレータイプ)
/
2A（DC 30V/AC 250V）
/
2A（DC 30V/AC 250V）
/
/
グループごとの出力電流（リレータイプ）
/
Maximum 6A
/
最大6A
/
/
Output Delay Time (Relay Type)
/
Turn-on delay≤8ms
Turn-off delay≤5ms
/
Turn-on delay≤8ms
Turn-off delay≤5ms
/
/
予想リレー接触寿命
/
Mechanical Life (No Load):20,000,000 Operations(1,200 Operations/Min.)
Electrical Life (Rated Load):100,000 Operations(6 Operations/Min.)
/
Mechanical Life (No Load):20,000,000 Operations(1,200 Operations/Min.)
Electrical Life (Rated Load):100,000 Operations(6 Operations/Min.)
/
/
Output Isolation Characteristics (Relay Type)
/
Relay Isolation
Coil-to-Contact Isolation Voltage:2000 Vrms
/
Relay Isolation
Coil-to-Contact Isolation Voltage:2000 Vrms
/
/
アナログ入力チャネル
2 Channels
/
2 Channels
3 Channels
2 Channels
2 Channels
アナログ出力チャネル
1 Channel
/
/
/
/
1 Channel
センサータイプ
/
/
/
Supports Pt100 RTD
Temperature Measurement Range:-40℃ to 240℃
Supports Type J,Type K,Type E and Type T Thermocouples
/
アナログ分解能
12 Bits
/
12 Bits
12 Bits
12 Bits
12 Bits
アナログ信号タイプ
4~mA、1~5V、0~20mA、 0~10V
/
0-10V
/
/
4~mA、1~5V、0~20mA、 0~10V
測定精度
0.3% F.S.
/
0.3% F.S.
0.3% F.S.
0.3% F.S.
0.3% F.S.
出力信号精度
0.3% F.S.
/
/
/
/
0.3% F.S.
アナログ変換レート（チャネルごと）
AI:≈200Times/s
AO:≈300Times/s
/
AI:≈200Times/s
AI:≈200Times/s
AI:≈200Times/s
AI:≈200Times/s
AO:≈300Times/s
アナログ入力インピーダンス
Current Mode:≤250Ω
Voltage Mode:>4MΩ
/
Current Mode:≤250Ω
Voltage Mode:>4MΩ
/
/
Current Mode:≤250Ω
Voltage Mode:>4MΩ
Analog Common Mode Voltage Rejection
(Signal Voltage+Common Mode Voltage)≤15V
/
(Signal Voltage+Common Mode Voltage)≤15V;
Channel Enters Protection State When Exceeded
/
/
(Signal Voltage+Common Mode Voltage)≤15V;
Channel Enters Protection State When Exceeded
Analog External Load
Current Mode:≤500Ω
Voltage Mode:>1kΩ
/
/
/
/
Current Mode:≤500Ω
Voltage Mode:>1kΩ
Expansion Module
Supports Up to 8 KS Series Expansion Modules
Supports Up to 8 KS Series Expansion Modules
Supports Up to 8 KS Series Expansion Modules
Supports Up to 8 KS Series Expansion Modules
Supports Up to 8 KS Series Expansion Modules
Supports Up to 8 KS Series Expansion Modules
HSC通道
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
4 Channels
Supports Single-Phase,Dual-Phase(UP/DOWN) and Quadrature(A/B Phase) Pulse Input,Maximum Counting Frequency:50 kHz
高速脉冲输出通道
4 Channels
Q0.0,Q0.1 and Q0.4:Maximum Output Frequency 50 kHz (Load Resistance ≤3kΩ Required for Maximum Frequency)
Q0.5:Maximum Output Frequency 10 kHz
4 Channels
Q0.0,Q0.1 and Q0.4:Maximum Output Frequency 50 kHz (Load Resistance ≤3kΩ Required for Maximum Frequency)
Q0.5:Maximum Output Frequency 10 kHz
4 Channels
Q0.0,Q0.1 and Q0.4:Maximum Output Frequency 50 kHz (Load Resistance ≤3kΩ Required for Maximum Frequency)
Q0.5:Maximum Output Frequency 10 kHz
None
4 Channels
Q0.0,Q0.1 and Q0.4:Maximum Output Frequency 50 kHz (Load Resistance ≤3kΩ Required for Maximum Frequency)
Q0.5:Maximum Output Frequency 10 kHz
4 Channels
Q0.0,Q0.1 and Q0.4:Maximum Output Frequency 50 kHz (Load Resistance ≤3kΩ Required for Maximum Frequency)
Q0.5:Maximum Output Frequency 10 kHz
エッジ割り込み
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
PLC-Program Storage and RTC
折りたたむ
展開する
プログラムメモリ
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
Maximum 4k Instructions
データメモリ
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
M Area:1k Bytes;V Area:4k Bytes
タイマー
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
カウンター
256 Units
256 Units
256 Units
256 Units
256 Units
256 Units
タイマー割り込み
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
2 Units,0.1ms Time Base
データバックアップ
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
E²PROM,448 Bytes
データ保持
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
RTC
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
Battery
Supports Battery Voltage Monitoring,Replaceable Battery
Supports Battery Voltage Monitoring,Replaceable Battery
Supports Battery Voltage Monitoring,Replaceable Battery
Supports Battery Voltage Monitoring,Replaceable Battery
Supports Battery Voltage Monitoring,Replaceable Battery
Supports Battery Voltage Monitoring,Replaceable Battery
PLC-Communication Port
折りたたむ
展開する
プログラミングインターフェース
USB SLAVE(USB-B)/RS485(PORT1)
USB SLAVE(USB-B)/RS485(PORT1)
USB SLAVE(USB-B)/RS485(PORT1)
USB SLAVE(USB-B)/RS485(PORT1)
USB SLAVE(USB-B)/RS485(PORT1)
USB SLAVE(USB-B)/RS485(PORT1)
CAN
1 Port
Supports Kinco Motion Control Functions and CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
1 Port
Supports CANopen Master Function and CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
1 Port
Supports CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
1 Port
Supports CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
1 Port
Supports CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
1 Port
Supports Kinco Motion Control Functions and CAN Free Communication
Note:Kinco Motion Control Function and CANopen Master Function Cannot Be Used Simultaneously with the Expansion Bus Function
RS485
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
2*RS485 (PORT1/PORT2)
PORT1:Supports Programming Protocol,Modbus RTU Master/Slave and Free Protocol
PORT2:Supports Modbus RTU Master/Slave and Free Protocol
Baud rate:Up to 115200 bps
折りたたむ
展開する
定格入力電圧
DC 24V
DC 24V
DC 24V
DC 24V
DC 24V
DC 24V
Supply Voltage Range
DC 20.4V~DC 28.8V
DC 20.4V~DC 28.8V
DC 20.4V~DC 28.8V
DC 20.4V~DC 28.8V
DC 20.4V~DC 28.8V
DC 20.4V~DC 28.8V
最大出力
≈10W
≈10W
≈8W
≈10W
≈10W
≈8W
HMI-Display Specifications
折りたたむ
展開する
Touch Screen
7”TFT
7”TFT
4.3”TFT
7”TFT
4.3”TFT
4.3”TFT
外形寸法
204*150*33.9mm
204*150*33.9mm
132*102*31.5
204*150*33.9mm
132*102*31.5mm
132*102*31.5mm
設置寸法
192*138mm
192*138mm
119*93
192*138mm
119*93mm
119*93mm
解像度
800*480
800*480
480*272
800*480
480*272
480*272
表示色
256k Colors
256k Colors
256k Colors
256k Colors
256k Colors
256k Colors
明るさ
250cd/m²
250cd/m²
400cd/m²
250cd/m²
400cd/m²
400cd/m²
バックライト
LED
LED
LED
LED
LED
LED
タッチパネル
4-Wire
Precision Resistor Network (Surface Hardness 4H)
4-Wire
Precision Resistor Network (Surface Hardness 4H)
4-Wire
Precision Resistor Network (Surface Hardness 4H)
4-Wire
Precision Resistor Network (Surface Hardness 4H)
4-Wire
Precision Resistor Network (Surface Hardness 4H)
4-Wire
Precision Resistor Network (Surface Hardness 4H)
バックライト寿命
50000h
50000h
50000h
50000h
50000h
50000h
CPU
700MHz RISC
700MHz RISC
700MHz RISC
700MHz RISC
700MHz RISC
700MHz RISC
シリアルポート
None
None
None
None
None
1*RS232(COM2)
イーサネット
10M/100M Adaptive
10M/100M Adaptive
10M/100M Adaptive
10M/100M Adaptive
10M/100M Adaptive
10M/100M Adaptive
保管
128MB Flash+64MB DDR2
128MB Flash+64MB DDR2
128MB Flash+64MB DDR2
128MB Flash+64MB DDR2
128MB Flash+64MB DDR2
128MB Flash+64MB DDR2
レシピストレージ
256kB+RTC
256kB+RTC
256kB+RTC
256kB+RTC
256kB+RTC
256kB+RTC
Expansion Storage
1*USB HOST(USB-A)
1*USB HOST(USB-A)
1*USB HOST(USB-A)
1*USB HOST(USB-A)
1*USB HOST(USB-A)
1*USB HOST(USB-A)
プログラムダウンロード
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
USB SLAVE(USB-B)/Ethernet/USB HOST(USB-A)
プリンタポート
USB SLAVE(USB-B)
USB SLAVE(USB-B)
USB SLAVE(USB-B)
USB SLAVE(USB-B)
USB SLAVE(USB-B)
USB SLAVE(USB-B)
折りたたむ
展開する
HMI-設定ソフトウェア
Kinco DTools+EdgeAccess+MIoT
Kinco DTools+EdgeAccess+MIoT
Kinco DTools+EdgeAccess+MIoT
Kinco DTools+EdgeAccess+MIoT
Kinco DTools+EdgeAccess+MIoT
Kinco DTools+EdgeAccess+MIoT
PLC-プログラミングソフトウェア
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
折りたたむ
展開する
気候条件
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
机械条件
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
折りたたむ
展開する
気候条件
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
机械条件
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
電磁互換性(EMC)
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
折りたたむ
展開する
保護レベル
IP20
IP20
IP20
IP20
IP20
IP20
折りたたむ
展開する
認証
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
