K6Sシリーズ モジュール式
製品モデル

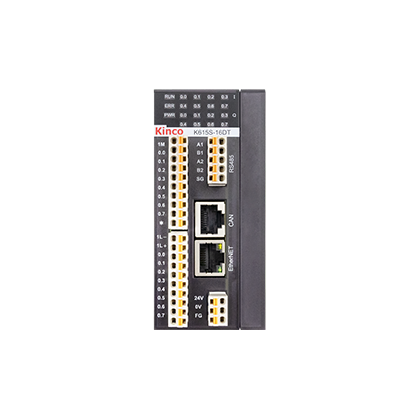

K615S-16DT
比較に追加
比較を解除
K622S-16DT
比較に追加
比較を解除
K622S-16DR
比較に追加
比較を解除

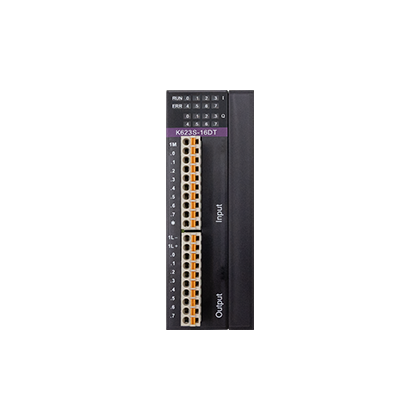

K623S-16DT
比較に追加
比較を解除
K621S-16DX
比較に追加
比較を解除

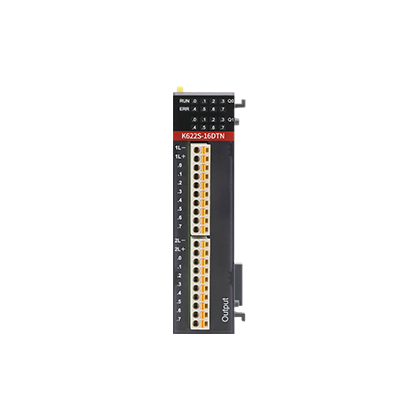

K622S-16DTN
比較に追加
比較を解除

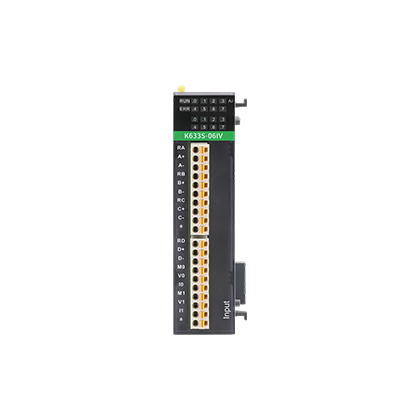

K633S-06IV
比較に追加
比較を解除

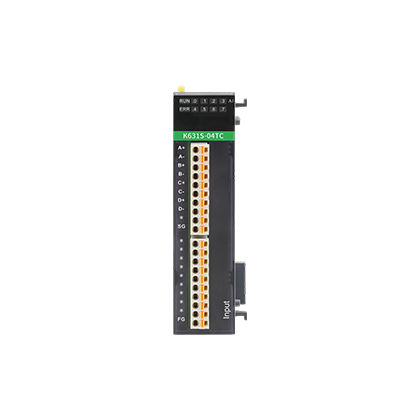

K631S-04TC
比較に追加
比較を解除
K631S-04RD
比較に追加
比較を解除
スライドしてさらに表示
折りたたむ
展開する
モジュールタイプ
CPU
Expansion Module
Expansion Module
Expansion Module
Expansion Module
Expansion Module
Expansion Module
Expansion Module
Expansion Module
プログラムメモリ
Maximum 8k Instructions
/
/
/
/
/
/
/
/
データメモリ
M Area:4k Bytes;V Area:16k Bytes
/
/
/
/
/
/
/
/
タイマー
Total 256 Timers
1ms Time Base:4
10ms Time Base:16
100ms Time Base:236
/
/
/
/
/
/
/
/
カウンター
256 Units
/
/
/
/
/
/
/
/
データバックアップ
E²PROM,1k Bytes
/
/
/
/
/
/
/
/
データ保持
V Area:VB0-VB1907,Total 1908 Bytes
C Area:C0-C63
Lithium Battery:3 Years at Room Temperature
/
/
/
/
/
/
/
/
RTC
Built-in Real-Time Clock,Accuracy:Less than 5 Minutes per Month at 25℃
/
/
/
/
/
/
/
/
Battery
Supports Battery Voltage Monitoring,Replaceable Battery
/
/
/
/
/
/
/
/
CAN
1 Port (RJ45,with Termination Resistor)
Supports CANopen and CAN Free Communication
Supports Kinco Motion Control Functions,Up to 16 Nodes via Kinco Motion Control Protocol
/
/
/
/
/
/
/
/
イーサネット
1 Port
Supports Modbus TCP Client/Server Industrial Bus Protocol,TCP Client/TCP Server Free protocol and UDP Peer Free protocol
Supports Program Upload/Download and Firmware Update
/
/
/
/
/
/
/
/
RS485
2 Ports (Isolated,with Termination Resistor)
Both Support Programming Protocol,Modbus RTU Master/Slave and Free Protocol
/
/
/
/
/
/
/
/
ローカル拡張バス
Supports Up to 16 K6S Series Expansion Modules
/
/
/
/
/
/
/
/
Indicator Light
RUN:Indicates device operating status
ERR:Indicates device error status
POW:Indicates power status
When an input signal is present,the corresponding LED lights up(green)
When an output signal is present,the corresponding LED lights up(green)
RUN:Indicates Module Operating Status
ERR:Indicates Module Error Status
When an Output Signal is Present,the Corresponding LED Lights Up(Green)
RUN:Indicates Module Operating Status
ERR:Indicates Module Error Status
When an Output Signal is Present,the Corresponding LED Lights Up(Green)
RUN:Indicates Module Operating Status
ERR:Indicates Module Error Status
When an input signal is present,the corresponding LED lights up(green)
When an Output Signal is Present,the Corresponding LED Lights Up(Green)
RUN:Indicates Module Operating Status
ERR:Indicates Module Error Status
When an input signal is present,the corresponding LED lights up(green)
RUN:Indicates Module Operating Status
ERR:Indicates Module Error Status
When an Output Signal is Present,the Corresponding LED Lights Up(Green)
RUN:Indicates Module Operating Status
ERR:Indicates Module Error Status
Red LED per Channel Indicates Input Value Exceeds Limit
RUN:Indicates Module Operating Status
ERR:Indicates Module Error Status
Red LED per Channel Indicates Input Value Out of Selected Range
RUN:Indicates Module Operating Status
ERR:Indicates Module Error Status
Red LED per Channel Indicates Input Value Out of Selected Range
折りたたむ
展開する
設置方法
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
DIN35 Rail Installation
寸法（W*H*D）
38*106*75.15mm
27*106*75.15mm
27*106*75.15mm
27*106*75.15mm
27*106*75.15mm
27*106*75.15mm
27*106*75.15mm
27*106*75.15mm
27*106*75.15mm
折りたたむ
展開する
定格入力電圧
DC 24V +/-10%（21.6V-26.4V）@5W
Supplied by the Expansion Bus
Supplied by the Expansion Bus
Supplied by the Expansion Bus
Supplied by the Expansion Bus
Supplied by the Expansion Bus
Supplied by the Expansion Bus
Supplied by the Expansion Bus
Supplied by the Expansion Bus
最大供給電流
1.2A(When 16 Expansion Modules Are Connected)
/
/
/
/
/
/
/
/
メインユニット定格電源
5W
/
/
/
/
/
/
/
/
パワー保護
Short-Circuit Protection
Reverse Polarity Protection
/
/
/
/
/
/
/
/
折りたたむ
展開する
プログラミングソフトウェア
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
KincoBuilder
折りたたむ
展開する
デジタル入力チャネル
8 channels,supports NPN/PNP
/
/
8 channels,supports NPN/PNP
16 Channels,8 Channels per Group,supports NPN/PNP
/
/
/
/
デジタル出力チャネル
8 Channels,Transistor-Type,supports PNP
16 Transistor-Type Channels,8 Channels per Group,supports PNP
16 Relay-Type Channels, 4 Channels per Group
8 Channels,Transistor-Type,supports PNP
/
16 Transistor-Type Channels,8 Channels per Group,supports PNP
/
/
/
HSC通道
4 Channels
3 Channels:Maximum Input Frequency 200 kHz
1 Channel:Maximum Input Frequency 20kHz(Single-Phase)/10kHz(Quadrature)
/
/
/
/
/
/
/
/
高速パルス入力チャネル
4 Channels
Supports Quadrature(A/B Phase) and Pulse/Direction Modes
3 Channels:Maximum Input Frequency 200kHz
1 Channel:Maximum Input Frequency 20kHz(Single-Phase)/10kHz(Quadrature)
/
/
/
/
/
/
/
/
高速脉冲输出通道
Supports 4 High-Speed Pulse Outputs with PWM Function
3 Channels:Maximum Output Frequency 200 kHz(Load Current>20mA)
1 Channel:Maximum Output Frequency 10 kHz
/
/
/
/
/
/
/
/
アナログ入力チャネル
/
/
/
/
/
/
4 Channels
4 Channels
4 Channels
アナログ出力チャネル
/
/
/
/
/
/
2 Channels
/
/
入力電圧
DC 24V
/
/
DC 24V
DC 24V
/
/
/
/
入力インピーダンス
5.4k
/
/
/
/
/
Current Mode:≤250Ω
Voltage Mode:>4MΩ
＞20kΩ
/
ロジック「0」の最大入力電圧
5V，0.8mA
/
/
5V，0.8mA
5V，0.8mA
/
/
/
/
ロジック "1" の最小入力電圧
11V，2mA
/
/
11V，2mA
11V，2mA
/
/
/
/
入力遅延時間
＜2.5㎲
/
/
Turn-on Delay:<18㎲
Turn-off Delay:<50㎲
Turn-on Delay:<18㎲
Turn-off Delay:<50㎲
/
/
/
/
分離方法（入力）
Digital Isolation,AC 500V/1Min.
/
/
Optocoupler Isolation,AC 500V/1Min.
Optocoupler Isolation,AC 500V/1Min.
/
/
/
/
出力電圧（トランジスタタイプ）
/
DC 24V(DC 20.4V~DC 28.8V)
/
/
/
DC 24V(DC 20.4V~DC 28.8V)
/
/
/
チャネルごとの出力电流 (トランジスタタイプ)
Maximun 300mA@DC 24V
Maximun 300mA@DC 24V
/
Maximun 300mA@DC 24V
/
Maximun 300mA@DC 24V
/
/
/
Output Leakage Current (Transistor Type)
Maximun 10㎂
Maximun 10㎂
/
Maximun 10㎂
/
Maximun 10㎂
/
/
/
出力インピーダンス（トランジスタタイプ）
Maximun 0.3Ω
Maximun 0.2Ω
/
Maximun 0.2Ω
/
Maximun 0.3Ω
/
/
/
出力遅延時間 (トランジスタタイプ)
＜5㎲
Turn-on Delay:<30㎲
Turn-off Delay:<50㎲
/
Turn-on Delay:<30㎲
Turn-off Delay:<50㎲
/
Turn-on Delay:<30㎲
Turn-off Delay:<50㎲
/
/
/
保護機能（トランジスタアウトプットタイプ）
Inductive Load Output Protection
Short-Circuit Protection
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
/
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
/
Inductive Load Output Protection
Short-Circuit Protection
Reverse polarity protection on outputs:Reverse polarity allowed for ≤10s
/
/
/
チャネル並列接続機能（トランジスタタイプ）
Yes (Within the Same Group)
Yes (Within the Same Group)
/
Yes (Within the Same Group)
/
Yes (Within the Same Group)
/
/
/
分離方法（トランジスタアウトプットタイプ）
Optocoupler Isolation,AC 500V/1Min.
Optocoupler Isolation,AC 500V/1Min.
/
Optocoupler Isolation,AC 500V/1Min.
/
Optocoupler Isolation,AC 500V/1Min.
/
/
/
許容負荷電圧（リレータイプ）
/
/
DC 24V/AC 250V
/
/
/
/
/
/
許容負荷電流 (リレータイプ)
/
/
Resistive Load:2A/Point,4A/Group
Inductive Load:1A/Point,4A/Group
/
/
/
/
/
/
Output Delay Time (Relay Type)
/
/
Turn-on delay≤10ms
Turn-off delay≤5ms
/
/
/
/
/
/
予想リレー接触寿命
/
/
Mechanical Life (No Load):20,000,000 Operations(1,200 Operations/Min.)
Electrical Life (Rated Load):100,000 Operations(6 Operations/Min.)
/
/
/
/
/
/
Output Isolation Characteristics (Relay Type)
/
/
Relay Isolation
Coil-to-Contact Isolation Voltage:2000 Vrms
/
/
/
/
/
/
信号タイプ
/
/
/
/
/
/
/
Type J,Type K,Type E,Type S,Type T
Pt100、Cu50、Pt1000、Resistance
接続方法
/
/
/
/
/
/
/
Type J,Type K,Type E,Type S,Type T
2-Wire,3-Wire
Compensation Method
/
/
/
/
/
/
/
Cold Junction Compensation:Internal or External,Selectable
/
解像度
/
/
/
/
/
/
12 Bits
2 Bits
24 Bits
測定精度
/
/
/
/
/
/
0.3% F.S.
0.1% F.S.
Temperature：±0.6℃
Resistance：±1Ω
Signal Limit
/
/
/
/
/
/
4~20mA、1~5V、0~20mA、0~10V
/
/
変換率（1チャネルあたり）
/
/
/
/
/
/
≈15 Times/s
≈1 Times/s
≈1 Times/s
外部負荷
/
/
/
/
/
/
Current Mode:≤500Ω
Voltage Mode:>10kΩ
/
/
DI画像エリア
/
2 Bytes
2 Bytes
1 Byte
2 Bytes
/
/
/
/
DO 画像エリア
/
2 Bytes
2 Bytes
1 Byte
/
2 Bytes
/
/
/
AI Image Area
/
/
/
/
/
/
8 Bytes (2 Bytes per Channel)
8 Bytes (2 Bytes per Channel)
8 Bytes (2 Bytes per Channel)
AO画像エリア
/
/
/
/
/
/
4 Bytes (2 Bytes per Channel)
/
/
折りたたむ
展開する
気候条件
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Ambient temperature:-40~+70℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
机械条件
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
折りたたむ
展開する
気候条件
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Ambient temperature:open-type device with natural ventilation,-10~+55℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
机械条件
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
Sine vibration: 5
電磁互換性(EMC)
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
折りたたむ
展開する
保護レベル
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
IP20
折りたたむ
展開する
認証
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
CE certified (testing standards:EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
