FMC Series Frameless Torque Motor
Pioneering frameless encapsulation technology, lightweight and thin body design, high torque density and low cogging torque
FMC Series Frameless Torque Motor
FMC lightweight design, the fuselage is upgraded to achieve thinness, which not only greatly improves the movement response speed, but also ensures the stability of the operation process, taking into account agility and reliability. The innovative multi-slot pole structure breaks through the limitations of the traditional servo motor design, and is not a simple revision and upgrade of the ordinary 8-pole/10-pole servo motor. It effectively reduces the cogging torque from the structural root, completely avoids the problem of operation lag, and enables the equipment to achieve more accurate micro-motion control.

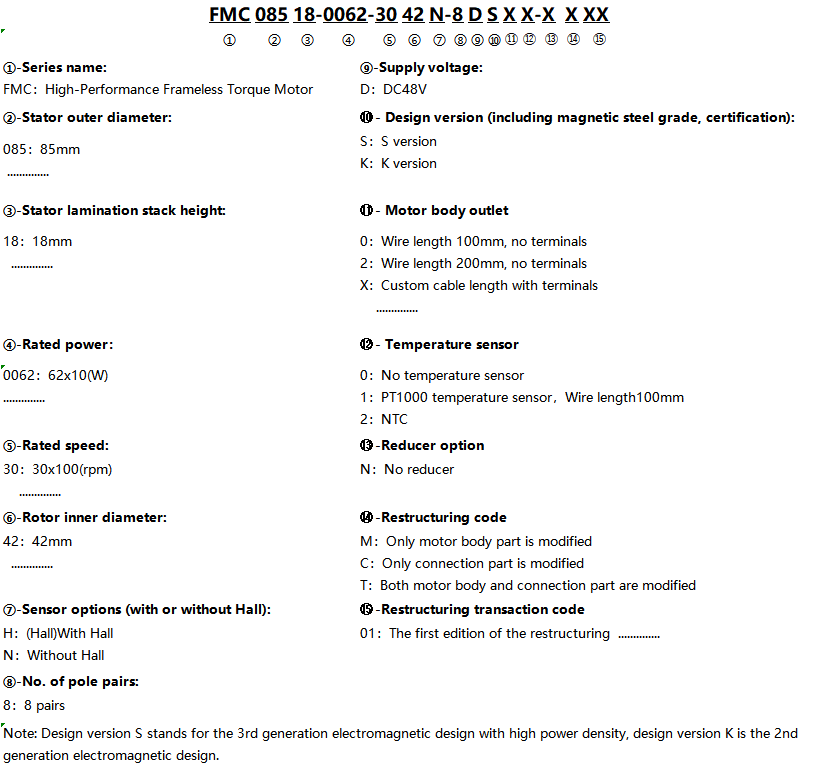

Product Model
FMC05705-0007-3028N-8DS00
Add comparison
Cancel comparison
FMC05707-0011-3528N-8DS00
Add comparison
Cancel comparison
FMC05714-0020-3027N-8DS00
Add comparison
Cancel comparison
FMC06012-0014-3128N-8DK00
Add comparison
Cancel comparison
FMC06805-0010-3034N-8DS00
Add comparison
Cancel comparison
FMC06808-0015-3034N-8DS00
Add comparison
Cancel comparison
FMC06813-0025-3034N-8DS00
Add comparison
Cancel comparison
FMC07605-0012-3038N-8DS00
Add comparison
Cancel comparison
FMC07712-0031-3033N-8DS00
Add comparison
Cancel comparison
FMC07730-0075-3035N-8DS00
Add comparison
Cancel comparison
FMC08505-0015-3042N-8DS00
Add comparison
Cancel comparison
FMC08508-0031-3042N-8DS00
Add comparison
Cancel comparison
FMC08518-0062-3042N-8DS00
Add comparison
Cancel comparison
FMC09114-0063-3046N-8DS01
Add comparison
Cancel comparison
FMC10414-0072-3055N-8DS01
Add comparison
Cancel comparison
FMC10422-0100-3047N-8DS00
Add comparison
Cancel comparison
FMC10429-0100-2543N-8DS00
Add comparison
Cancel comparison
FMC12330-0100-2060N-5DS00
Add comparison
Cancel comparison
FMC12718-0090-2465N-8DS00
Add comparison
Cancel comparison
FMC12730-0160-2457N-8DS00
Add comparison
Cancel comparison
FMC13224-0118-3243N-8DK00
Add comparison
Cancel comparison
Slide to display more
Electrical Specifications
Fold up
Expand
Rated voltage(VDC)
48
48
48
48
48
48
48
48
48
48
48
48
48
--
--
--
--
--
--
--
--
Rated power Pn(W)
75
117
200
146
101
157
251
117
314
750
157
314
628
--
--
--
--
--
--
--
--
Rated torque Tn(Nm)
0.24
0.32
0.64
0.45
0.32
0.5
0.8
0.32
1
2.39
0.5
1
2
--
--
--
--
--
--
--
--
Max torqueTm(Nm)
0.72
0.96
1.92
1.25
0.96
1.5
2.4
0.96
3
7.17
1.5
3
6
--
--
--
--
--
--
--
--
Rated current In(A)
1.91
3.2
5.1
3.4
2.8
4.5
7
3.2
7.65
18.6
5
8.8
21.3
--
--
--
--
--
--
--
--
Max currentIm(A)
5.9
10.5
15.6
10.88
8.4
13.5
21
10.5
24
61
16.3
26.4
63.9
--
--
--
--
--
--
--
--
Rated speed nN(rpm)
3000
3500
3000
3100
3000
3000
3000
3000
3000
3000
3000
3000
3000
--
--
--
--
--
--
--
--
Max speednM(rpm)
3800
4300
4000
3400
3900
3900
3900
4300
4000
3800
3900
4100
5000
--
--
--
--
--
--
--
--
Torque constant Kt(Nm/A)
0.12
0.107
0.137
0.124
0.127
0.127
0.129
0.126
0.1
0.131
0.126(ref)
0.123
0.105
--
--
--
--
--
--
--
--
Mechanical time constant τm(ms)
2.75
1.93
1.44
1.06
0.99
0.77
0.52
1.7
1.45
1.21
1.51(ref)
1.25
0.76
--
--
--
--
--
--
--
--
