Green Series 2 - Capacitive Touch Screen (G2 X)
Industrial capacitive touch: efficient, smooth and stylish
Kinco G2100HE-LX: GREEN Series II flagship HMI.10.1" screen in 7" cutout, quad-core 1.5GHz CPU, capacitive touch.Space-saving yet high-performance for industrial automation.
10.1" display fits 7" cutout, saves installation space;
Quad-core 1.5GHz CPU, 512MB RAM, 4GB Flash for complex projects;
Capacitive multi-touch with smooth gesture control;
1280×800 IPS, 16.77M colors, 85° wide view, 350cd/㎡ brightness.
Product Model

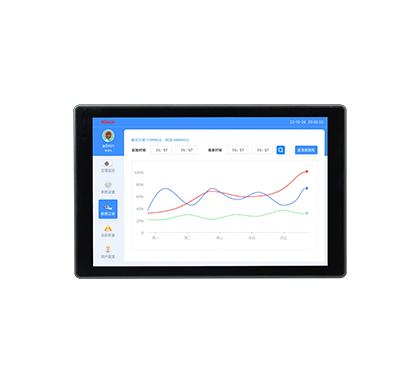

G2100HE-LX
Add comparison
Cancel comparison

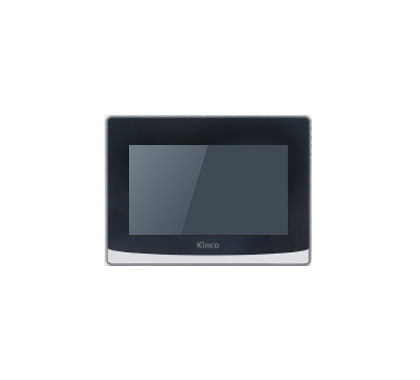

GL2070HE-LX
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
10.1
7
Display Area (mm)
135.36mm(H)x 216.58mm(V)
154.21(H)×85.92(V)
Resolution
1280*800
1024*600
Display Colors
16.7 million
16.7 million
Viewing Angle
85/85/85/85(L/R/U/D)
85/85/85/85(L/R/U/D)
Contrast Ratio
800:1
800:1
Backlight
LED
LED
Brightness (cd/m²)
350
450
Backlight Life
>30000 hours
>30000 hours
Touch Panel
Fold up
Expand
Touch Panel
Capacitive Glass Touch Screen
Capacitive Touch Screen
Processor
Fold up
Expand
CPU
Quad-core ARM 1.5GHz
Dual-core ARM 1GHz
GPU
-
-
NPU
-
-
Memory
Fold up
Expand
RAM
512M
256M
Flash Memory
4GB
4GB
Interfaces
Fold up
Expand
USB Host
1
1
USB Slave
1
1
Ethernet
1
1
Communication Port
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232;
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232
4G
-
-
Wi-Fi
-
-
Audio Interface
-
-
Other Interfaces
-
-
HDMI
-
-
RFID
-
-
Programmable Keys
-
-
Selector Switch
-
-
Emergenccy Stop
-
-
Grip Switch
-
-
LED Indicator
-
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
DC18V-28V
Power Consumption
7W@24VDC
7W@24VDC
Allowable Power Loss Time
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Voltage Endurance
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Metal
Engineering plastic
Dimensions (mm)
249x159x33(mm)
204x150x37(mm)
Panel Cut-out (mm)
192x 138(mm)
192x 138(mm)
Mounting
Panel mounting & Bracket mounting (75*75)
Panel mounting
Cable
-
-
Mounting Accessories
-
-
Environmental
Fold up
Expand
Operating Temperature
0~50°C
0~50°C
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
Vibration Resistance
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
Cooling
Natural air cooling
Natural air cooling
Protection
Fold up
Expand
Power Isolation
-
-
Serial Port Isolation
-
-
PCB Coating
-
-
Degree of Protection
Front panel: IP65
Front panel: IP65
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
UL Certificate
-
-
Software
Fold up
Expand
Configuration Software
Kinco DTools Pro
Kinco DTools Pro
Remote Maintenance Platform
EdgeAccess2.0
EdgeAccess2.0
