FUTURE Series 2 - Capacitive Touch Screen (F2 X)
New Touch Experience, Performance & Design Combined

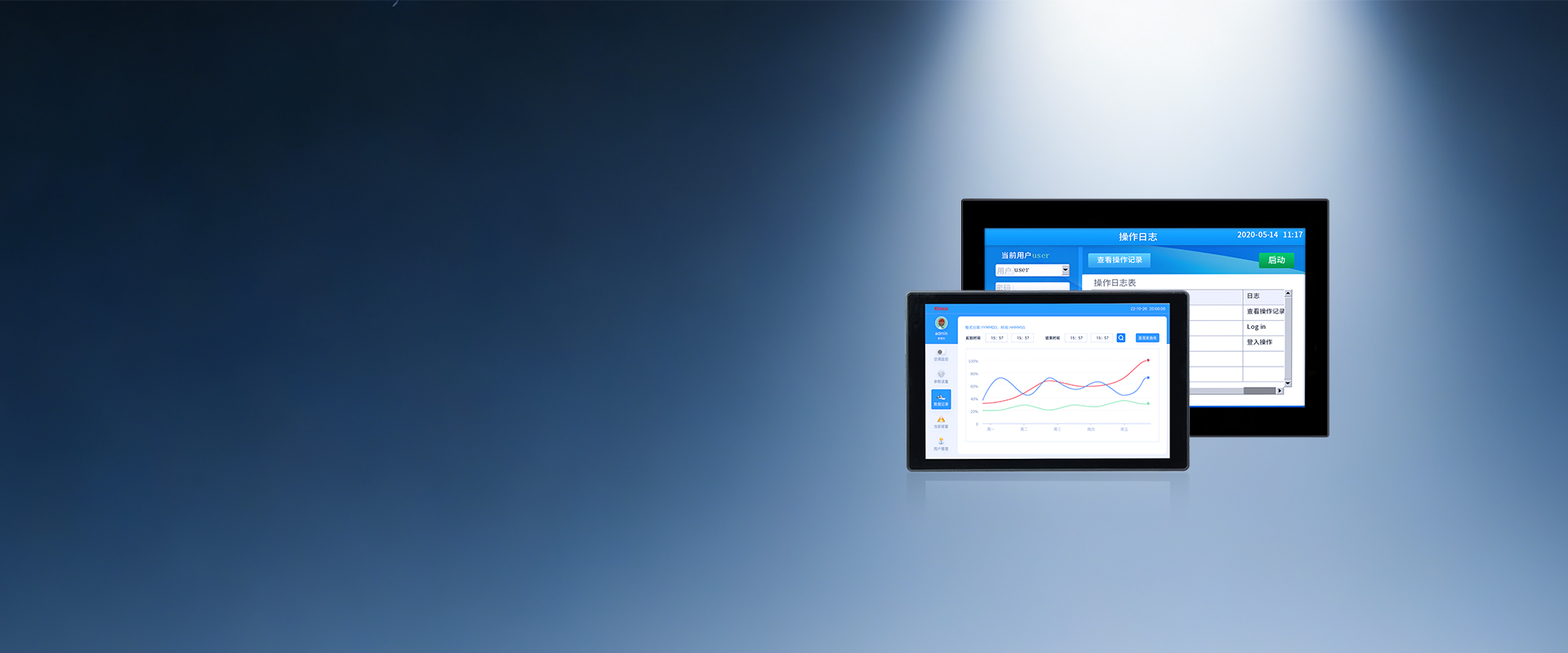

Future Series II Capacitive Touch Panel
Kinco Future Series II capacitive touch panel is an industrial-grade solution for high-end manufacturing. Powered by quad-core 1.8GHz CPU, 1GB RAM+8GB storage, it comes in 10-inch and 15.6-inch models. HD high-brightness display and capacitive touch provide millisecond response, gesture and wet-touch operation. UL certified with three-proof coating and power isolation, it resists interference, water and dust, operating stably 24/7 from -20℃ to 60℃. Dual Ethernet, dual serial ports and rich interfaces support PLC, MES and third-party devices. With end-to-end encryption and custom dashboards, it serves lithium battery, PV, 3C and semiconductor industries for efficient, secure HMI.
Product Model
F2100HE2-PX
Add comparison
Cancel comparison

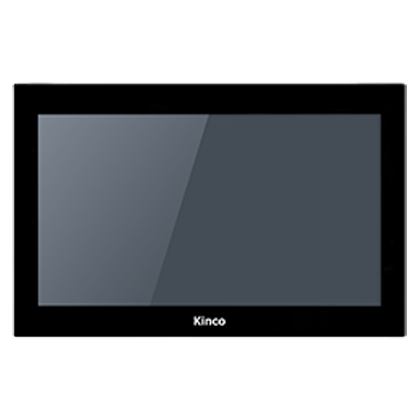

F2156E2-PX
Add comparison
Cancel comparison
F2156E2-PX(UL)
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
10.1
15.6
--
Display Area (mm)
135.36mm(H)x 216.58mm(V)
344.16(W)x193.59(H)
--
Resolution
1280*800
1920*1080
--
Display Colors
16.7 million
16.7 million
--
Viewing Angle
85/85/85/85(L/R/U/D)
89/89/89/89 (L/R/U/D)
--
Contrast Ratio
800:1
1000:1
--
Backlight
LED
LED
--
Brightness (cd/m²)
350
300
--
Backlight Life
50000 hours
50000 hours
--
Touch Panel
Fold up
Expand
Touch Panel
Capacitive Glass Touch Screen
Capacitive Glass Touch Screen
--
Processor
Fold up
Expand
CPU
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
--
GPU
-
-
--
NPU
-
-
--
Memory
Fold up
Expand
RAM
1GB
1GB
--
Flash Memory
8GB
8GB
--
Interfaces
Fold up
Expand
USB Host
1
1
--
USB Slave
1
1
--
Ethernet
2
2
--
Communication Port
COM0:RS232/RS485/RS422;
COM1:RS485;
COM2:RS232;
COM0:RS232/RS485/RS422;
COM2:RS232
--
4G
-
-
--
Wi-Fi
-
-
--
Audio Interface
1
-
--
Other Interfaces
-
-
--
HDMI
-
-
--
RFID
-
-
--
Programmable Keys
-
-
--
Selector Switch
-
-
--
Emergenccy Stop
-
-
--
Grip Switch
-
-
--
LED Indicator
-
-
--
Electrical
Fold up
Expand
Input Power
DC18V-28V
DC18V-28V
--
Power Consumption
7W@24VDC
15W@24VDC
--
Allowable Power Loss Time
<3ms
<3ms
--
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
--
Voltage Endurance
500V AC 1minute
500V AC 1minute
--
Mechanical
Fold up
Expand
Enclosure
Metal
Metal
--
Dimensions (mm)
249x159x33(mm)
395x259x25.5(mm)
--
Panel Cut-out (mm)
192x 138(mm)
382x246mm
--
Mounting
Panel mounting & Bracket mounting (75*75)
Panel mounting & Bracket mounting (100*100)
--
Cable
-
-
--
Mounting Accessories
-
-
--
Environmental
Fold up
Expand
Operating Temperature
-10~60°C
-10~60°C
--
Operating Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
--
Storage Temperature
-20~60°C
-20~60°C
--
Storage Humidity
10~90%RH (Non-condensing)
10~90%RH (Non-condensing)
--
Vibration Resistance
10~500Hz, 30m/s², X, Y, Z direction/hour
10~500Hz, 30m/s², X, Y, Z direction/hour
--
Cooling
Natural air cooling
Natural air cooling
--
Protection
Fold up
Expand
Power Isolation
Yes
Yes
--
Serial Port Isolation
-
-
--
PCB Coating
Yes
Yes
--
Degree of Protection
Front panel: IP65
Front panel: IP65
--
Certifications
Fold up
Expand
CE Certificate
EN61000-6-4:2019，EN61000-6-2:2019
EN61000-6-4:2019，EN61000-6-2:2019
--
UL Certificate
-
-
--
Software
Fold up
Expand
Configuration Software
Kinco DTools Pro
Kinco DTools Pro
--
Remote Maintenance Platform
EdgeAccess2.0
EdgeAccess2.0
--
