FUTURE Series 2
A flagship intelligent interface designed for high-end manufacturing

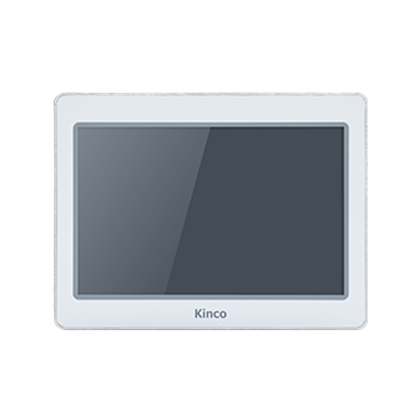

FUTURE Series II HMI
As Kinco Automation's flagship industrial HMI, the FUTURE Series II delivers powerful hardware, intelligent remote O&M and superior operation. It provides full-range interaction solutions for lithium, PV, 3C, semiconductor and automotive manufacturing, boosting productivity, reducing costs and enabling global competitiveness.
HD display & multi-core, powerful performance
Equipped with quad-core 1.8GHz CPU and 1G+8G storage.
Full size range from 7 to 15.6 inches.
Three-proof design and rich interfaces for complex working conditions.
Standard with EdgeAccess2.0 remote O&M software, improving efficiency by 3x.
Entire series UL certified for global markets.
EdgeAccess2.0 Remote O&M Software
Optimize traditional maintenance and improve efficiency
One of China’s most popular industrial configuration tools
Works with Kinco DToolsPro configuration software, boosting development efficiency by 40%
Built on the Qt framework and custom-tailored for FUTURE Series HMI, Kinco DToolsPro features high efficiency, simple operation and full compatibility, greatly reducing project costs and implementation cycles
Flexible expansion supports diverse applications
Rich interfaces including dual serial ports and USB enable plug-and-play RFID recognition, with over 10 peripheral extensions for scanners, instruments, inverters and more. Custom data dashboards with real-time dynamic charts and trend graphs support visual production management. An independent desktop allows multi-user collaboration with permission interlock, ensuring data security and improving debugging efficiency
Provides stable, high-performance HMI solutions for lithium, PV, semiconductor and other industries
Product Model
F2070E
Add comparison
Cancel comparison
F2070E2
Add comparison
Cancel comparison
F2070E2(UL)
Add comparison
Cancel comparison
F2100E
Add comparison
Cancel comparison
F2100E2
Add comparison
Cancel comparison
F2100E2(UL)
Add comparison
Cancel comparison
F2121E
Add comparison
Cancel comparison
F2121E2
Add comparison
Cancel comparison
F2121E2(UL)
Add comparison
Cancel comparison
F2150E2
Add comparison
Cancel comparison
F2156E
Add comparison
Cancel comparison
F2156E2/F2156E2(UL)
Add comparison
Cancel comparison
Slide to display more
Display
Fold up
Expand
Display Size
7"
7"
7"
10.1"
10.1"
10.1"
12.1"
12.1"
12.1"
15"
15.6"
15.6
Display Area (W x H)
154.08 x 85.92 mm
154.08 x 85.92 mm
154.08 x 85.92 mm
222.72 x 125.28 mm
222.72 x 125.28 mm
222.72 x 125.28 mm
261.12 x 163.20 mm
261.12 x 163.20 mm
261.12 x 163.20 mm
304.1 x 228.1 mm
344.16 x 193.59 mm
344.16 x 193.59 mm
Resolution
1024*600
800*480
800*480
1024*600
1024*600
1024*600
1280*800
1280*800
1280*800
1024*768
1920*1080
1920*1080
Colors
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
16.7 million
Viewing Angle (T/B/L/R)
85/85/85/85
80/80/80/80
80/80/80/80
85/85/85/85
60/60/70/70
60/60/70/70
85/85/85/85
85/85/85/85
85/85/85/85
88/88/88/88
85/85/89/89
89/89/89/89
Contrast Ratio
800:1
800:1
500:1
500:1
500:1
500:1
1200:1
1200:1
1200:1
2500:1
1000:1
1000:1
Backlight
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
LED
Brightness
450 cd/m²
400 cd/m²
400 cd/m²
300 cd/m²
350 cd/m²
350 cd/m²
400 cd/m²
400 cd/m²
400 cd/m²
350 cd/m²
250 cd/m²
300 cd/m²
Backlight Life Time
50000 hours
50000 hours
50000 hours
50000 hours
50000 hours
50000 hours
50000 hours
50000 hours
50000 hours
50000 hours
50000 hours
50000 hours
Touch Panel
Fold up
Expand
Touch Panel
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
4-wire resistive type
Processor
Fold up
Expand
CPU
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
Quad-core ARM 1.8GHz
GPU
-
-
-
-
-
-
--
--
--
--
--
--
NPU
-
-
-
-
-
-
--
--
--
--
--
--
Memory
Fold up
Expand
RAM
1GB
1GB
1GB
1GB
1GB
1GB
1GB
1GB
1GB
1GB
1GB
1GB
Flash Memory
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
8GB
Interfaces
Fold up
Expand
USB Host
1
1
1
1
1
1
1
1
1
1
1
1
USB Slave
1
1
1
1
1
1
1
1
1
1
1
1
Ethernet
1
2
2
1
2
2
1
2
2
2
1
2
Communication Port
COM0:RS232/RS485/
RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/
RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/
RS422;
COM1:RS485/RS422;
COM2:RS233
COM0:RS232/RS485/
RS422;
COM1:RS485
COM2:RS232
COM0:RS232/RS485/
RS422;
COM2:RS232
COM0:RS232/RS485/
RS422;
COM2:RS232
COM0:RS232/RS485/
RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/
RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/
RS422;
COM2:RS232
COM0:RS232/RS485/
RS422;
COM1:RS485/RS422;
COM2:RS232
COM0:RS232/RS485/
RS422;
COM2:RS232
COM0:RS232/RS485/
RS422;
COM2:RS232
4G
-
-
-
-
-
-
-
-
-
-
-
-
WIFI
-
-
-
-
-
-
-
-
-
IEE802.11 b/g/n
-
-
Audio Interface
-
-
-
-
-
-
-
-
-
-
-
-
Other Interfaces
-
-
-
-
-
-
-
-
-
-
-
-
HDMI
-
-
-
-
-
-
-
-
-
-
-
-
RFID
-
-
-
-
-
-
-
-
-
-
-
-
Programmable Keys
-
-
-
-
-
-
-
-
-
-
-
-
Selector Switch
-
-
-
-
-
-
-
-
-
-
-
-
Emergenccy Stop
-
-
-
-
-
-
-
-
-
-
-
-
Grip Switch
-
-
-
-
-
-
-
-
-
-
-
-
LED Indicator
-
-
-
-
-
-
-
-
-
-
-
-
Electrical
Fold up
Expand
Input Power
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
DC18V-28V
Power Consumption
7W@24VDC
7W@24VDC
7W@24VDC
7W@24VDC
7W@24VDC
7W@24VDC
15W@24VDC
15W@24VDC
15W@24VDC
15W@24VDC
15W@24VDC
15W@24VDC
Voltage Interruption Immunity
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
<3ms
Insulation Resistance
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
>50 MΩ @ 500V DC
Dielectric Resistance
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
500V AC 1minute
Mechanical
Fold up
Expand
Enclosure
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Engineering plastic
Metal
Metal
Metal
Metal
Metal
Metal
Dimensions (W x H x D)
204 x 150 x 37 mm
204 x 150 x 37 mm
204 x 150 x 37 mm
271 x 213 x 38 mm
271 x 213 x 38 mm
271 x 213 x 38 mm
309 x 229 x 37 mm
309 x 229 x 37 mm
313 x 235 x 49 mm
366 x 293 x 49.5 mm
395 x 259 x 25.5 mm
395 x 259 x 25.5 mm
Cut-out Dimensions
192 x 138 mm
192 x 138 mm
192 x 138 mm
260 x 202 mm
260 x 202 mm
260 x 202 mm
299 x 219 mm
299 x 219 mm
295 x 217 mm
352 x 279 mm
382 x 246 mm
382 x 246 mm
Mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting
Panel mounting / Bracket mounting (75 x 75 mm)
Panel mounting / Bracket mounting (75 x 75 mm)
Panel mounting
Panel mounting
Panel mounting / Bracket mounting (100 x 100 mm)
Panel mounting / Bracket mounting (100 x 100 mm)
Cable
-
-
-
-
-
-
-
-
-
-
-
-
Mounting Accessories
-
-
-
-
-
-
-
-
-
-
-
-
Environmental
Fold up
Expand
Operating Temperature
-10~60°C
-10~60°C
-10~60°C
-10~60°C
-10~60°C
-10~60°C
-10~60°C
-10~60°C
-10~60°C
-10~60°C
-10~60°C
-10~60°C
Operating Humidity
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
Storage Temperature
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
-20~60°C
Storage Humidity
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
0~90%RH
(Non-condensing)
Vibration Resistance
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
10-500Hz, 30m/s², 1 hour
each for X, Y, Z directions
Cooling Method
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Natural air circulation
Protection
Fold up
Expand
Power Isolation
-
Yes
Yes
-
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Serial Port Isolation
-
-
-
-
-
-
-
-
-
-
-
-
PCB Coating
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Degree of Protection
IP65
IP65
IP65
IP65
IP65
IP65
IP65
IP65
IP65
IP65
IP65
IP65
Certifications
Fold up
Expand
CE Certificate
EN IEC 61000-6-4:2019, EN IEC 61000-6-2:2019
EN IEC 61000-6-4:2019, EN IEC 61000-6-2:2019
EN IEC 61000-6-4:2019, EN IEC 61000-6-2:2019
EN61000-6-4:2019, EN61000-6-2:2019
EN61000-6-4:2019, EN61000-6-2:2019
EN61000-6-4:2019, EN61000-6-2:2019
EN61000-6-4:2019, EN61000-6-2:2019
EN61000-6-4:2019, EN61000-6-2:2019
EN61000-6-4:2019, EN61000-6-2:2019
EN61000-6-4:2019, EN61000-6-2:2019
EN61000-6-4:2019, EN61000-6-2:2019
EN61000-6-4:2019, EN61000-6-2:2019
UL Certificate
-
-
UL 61010-1
-
-
UL 61010-1
-
-
UL 61010-1
-
-
-
Software
Fold up
Expand
Configuration Software
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Kinco DTools Pro
Remote Maintenance Platform
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
EdgeAccess2.0
