CV20-1S-0007G

The Kinco CV20 1S VFD Series combines power and performance into one compact package. With 120VAC Single-Phase input, this drive offers up to 750 Watts (1 HP) of power to drive your Three-Phase AC motor. This series offers unique control methods to achieve high torque and accuracy, and variable speed range. Other features for this drive includes flexible I/O terminals, overcurrent, overvoltage, undervoltage, and overheat protection, acceleration and deceleration times, and vector control.




  • Input Voltage Range of 100-120V
  • Power up to 1 HP
  • Methods of Control: V/F control, Vector control
  • Overcurrent, overvoltage, under-voltage, overheat, overload and missing phase protection.
  • Sleep/wake up function

Item
↑ ↓
Input
voltage
Rated
Power
(HP)
Rated
Current
(A)
InstallationType IP
Rating
Cooling
Method
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
CV20-1S-0007G Single-Phase, 100-120V 1.00 7.5 Wall Mount IP20 Fan Click here for PDF Spec Sheet Click here to request a Quote. $144.00 view here
Quantity Discounts
1pc. $144.00
10pc. $134.13
25pc. $122.94
50pc. $115.69
100pc. $110.00
Contact Us for Quantities over 100
16 in Stock Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

  • Wiring Diagram

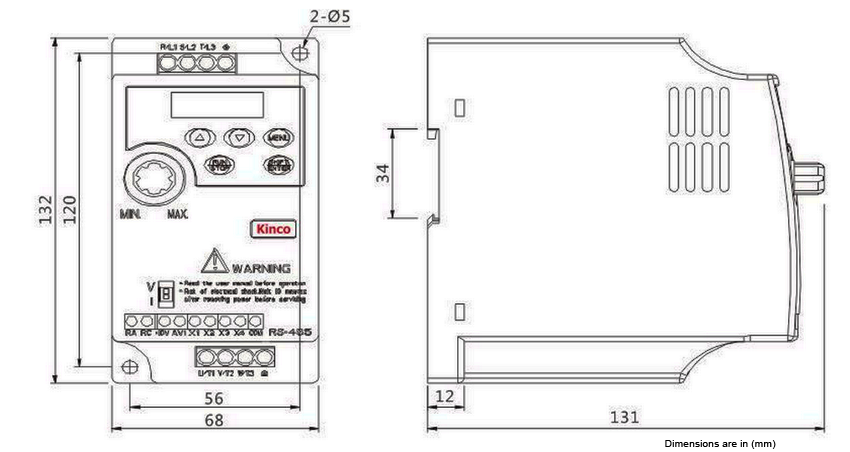

  • Dimensions
