Stepper Drivers

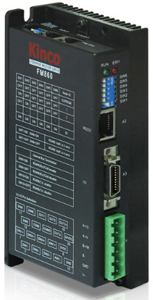

FM860-AA-000

The FM860 Series Stepper Driver provides improved dynamic drive performance. This series drive accepts 24~70VDC input, with up to 6 Amps per phase, and provides users the ability to set up the step resolution set by KincoStep Software. As an additional feature, this drive provides users with the ability to select an auto reduce current setting which helps reduce power consumption and motor heat, while improving motor lifetime. Also, the isolation inputs help minimize interference from external electrical equipment as well has improving performance.




  • Input Voltage 24 ~70VDC
  • Over-Voltage Protection 90V
  • Under-Voltage Protection 15V
  • Cooling Method (Natural Air Cooling)
  • Operating Temperature -0°C ~ 40°C
  • Operating Humidity 85% RH
    (Non-Condensing or Water Drops)
  • Weight 0.36Kg
  • Ingress Protection IP20
  • RS785 or CAN Bus Interface

Item
↑ ↓
Current
Range
(A)
↑ ↓
Voltage
Requirement
↑ ↓
Steps
Per
Revolution
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
FM860-AA-000 0-6.0 24-70VDC 200-51,200 Click here for PDF Spec Sheet Click here to request a Quote. $203.00 view here
Quantity Discounts
1pc. $203.00
10pc. $192.79
25pc. $182.97
50pc. $166.58
100pc. $153.97
Contact Us for Quantities over 100
5 in Stock Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

  • Dimensions
  • NPN Wiring Diagram
  • PNP Wiring Diagram
  • Specifications
