Stepper Drivers

3M2280N

The 3M2280N Series Stepper Driver provides improved dynamic drive performance. This series drive accepts 187~253VAC input, with up to 8 Amps per phase, and provides users with a step resolution of up to 20,000 steps per revolution. As an additional feature, this drive provides users with the ability to select an auto reduce current setting which helps reduce power consumption and motor heat, while improving motor lifetime. Also, the isolation inputs help minimize interference from external electrical equipment as well has improving performance.




  • Input Voltage 220V AC± 15% (50Hz/60Hz)
    (187~253VAC)
  • Over-Voltage Protection 395VDC
  • Under-Voltage Protection 200VDC
  • Cooling Method (Forced Air Cooling)
  • Operating Temperature -0°C - 40°C
  • Operating Humidity 85%
    (Non-Condensing or Water Drops)
  • Weight 1.5Kg
  • Ingress Protection IP20

Item
↑ ↓
Current
Range
(A)
↑ ↓
Voltage
Requirement
↑ ↓
Steps
Per
Revolution
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
3M2280N 2.8-8.0 187-253VAC 400-20,000 Click here for PDF Spec Sheet Click here to request a Quote. $236.00 view here
Quantity Discounts
1pc. $236.00
10pc. $224.72
25pc. $214.37
50pc. $195.25
100pc. $179.85
Contact Us for Quantities over 100
2 in Stock Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

  • Dimensions
  • General Wiring Diagram

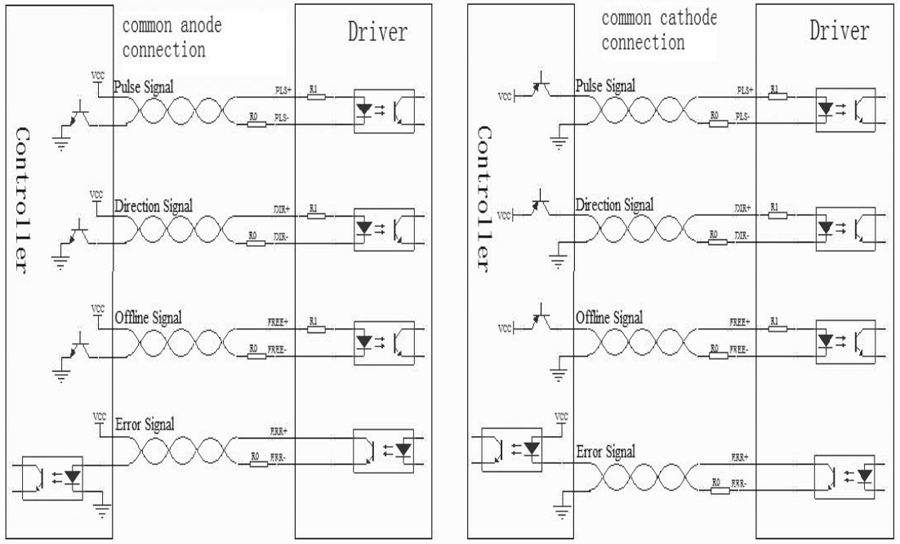

  • Twisted Wiring Diagram
  • Specifications
