Stepper Drivers

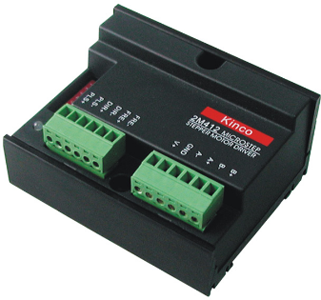

2M412

The 2M412 Stepper Driver provides improved dynamic drive performance. This series drive accepts 12-140VDC input, with up to 1.2 Amps per phase, and provides users with a step resolution of up to 51,200 steps per revolution. As an additional feature, this drive provides users with the ability to select an auto reduce current setting which helps reduce power consumption and motor heat, while improving motor lifetime. Also, the isolation inputs help minimize interference from external electrical equipment as well as improving performance.




  • Supply Voltage 12 ~ 40V DC
  • Output Phase Current 0.2 ~ 1.2A
  • Control Signal Input Current 6 ~ 16mA
  • Cooling Method (Natural Air Cooling)
  • Operating Temperature -10°C - +45°C
  • Operating Humidity 85% (No-Condensing or Water Drops)
  • Weight 0.13Kg

Item
↑ ↓
Current
Range
(A)
↑ ↓
Voltage
Requirement
↑ ↓
Steps
Per
Revolution
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
2M412 0.2-1.2 12-40VDC 200-51,200 Click here for PDF Spec Sheet Click here to request a Quote. $75.00 view here
Quantity Discounts
1pc. $75.00
10pc. $71.36
25pc. $68.12
50pc. $63.50
100pc. $57.52
Contact Us for Quantities over 100
1 in Stock Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

  • Dimensions
  • Wiring Diagram
  • Specifications
