Servo Systems

PKS-FD332S-08

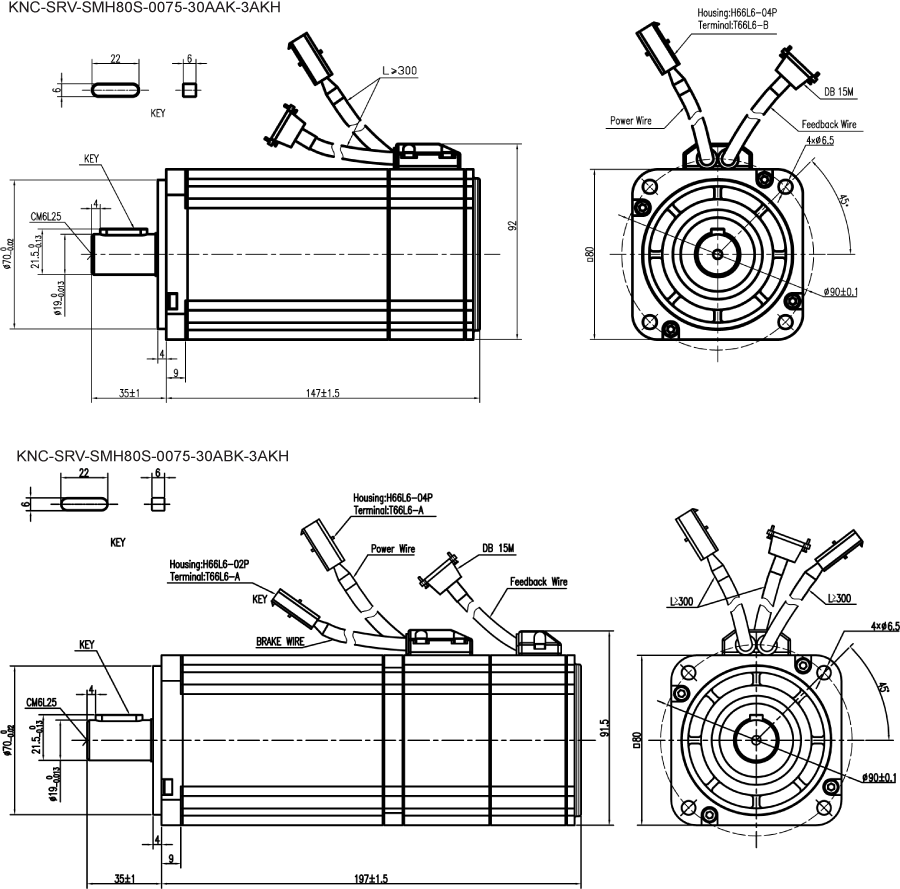

The SMH80S Series AC Motors are a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These motors boast peak torque values up to 338 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and comes equipped with a 2,500 PPR Incremental Encoder. It is available in an 80mm square flange size, with a brake option.




  • 120 VAC
  • 750 Watt Power Rating
  • Rated Torque of 338 oz-in
  • Maximum Speed of 6000 RPM
  • 2500 PPR Incremental Encoder Attached
  • IP65 for Body, IP54 Shaft Seal
  • Brake Option Available
  • CE Certified

Item
↑ ↓
Rated
Power
(Watts)
↑ ↓
Rated
Voltage
(VAC)
↑ ↓
Rated
Speed
(rpm)
↑ ↓
Rated
Torque
(Nm)
↑ ↓
Rated
Current
(Arms)
↑ ↓
Brake
↑ ↓
Drive
Control
Capabilities
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
PKS-FD332S-08-80S-AAK-AKH 750 88-126 VAC 3000 2.39 7.5 No Position,
Speed, Torque
Click here to Download Software Click here to request a Quote. $876.00 view here
Quantity Discounts
1pc. $876.00
10pc. $814.19
25pc. $767.51
50pc. $706.88
100pc. $612.65
Contact Us for Quantities over 100
12 in Stock Add to Cart
PKS-FD332S-08-80S-ABK-AKH 750 88-126 VAC 3000 2.39 7.5 Yes Position,
Speed, Torque
Click here to Download Software Click here to request a Quote. $1,117.00 view here
Quantity Discounts
1pc. $1,117.00
10pc. $1,033.11
25pc. $979.44
50pc. $846.61
100pc. $789.37
Contact Us for Quantities over 100
Contact Us Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.
