Servo Systems

PKS-FD322S-04-60S

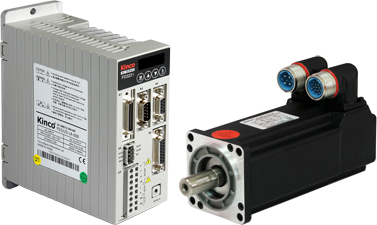

The SME60S Series AC Motors are a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These motors boast peak torque values up to 540 oz-in, provide excellent dynamic response, allow for 3 times the overload capacity, and come equipped with a 2,500 PPR incremental encoder. It is available in a 60mm square flange size, with a brake option.




  • 70VDC and 220VAC Options
  • 400W Power Rating
  • Rated Torque of 180 oz-in
  • Maximum Speed of 3000 rpm
  • 2500 PPR Incremental Encoder Included
  • IP65 for Body, IP54 Shaft Seal
  • CE Certified

Item
↑ ↓
Rated
Power
(Watts)
↑ ↓
Rated
Voltage
(VAC)
↑ ↓
Rated
Speed
(rpm)
↑ ↓
Rated
Torque
(Nm)
↑ ↓
Rated
Current
(Arms)
↑ ↓
Brake
↑ ↓
Drive
Control
Capabilities
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
PKS-FD322S-04-60S-AAK-AKH 400 88-126 VAC 3000 1.27 3.1 No Position,
Speed, Torque
Click here to Download Software Click here to request a Quote. $674.00 view here
Quantity Discounts
1pc. $674.00
10pc. $633.69
25pc. $594.04
50pc. $547.71
100pc. $507.26
Contact Us for Quantities over 100
2 in Stock Add to Cart
PKS-FD322S-04-60S-ABK-AKH 400 88-126 VAC 3000 1.27 3.1 Yes Position,
Speed, Torque
Click here to Download Software Click here to request a Quote. $900.00 view here
Quantity Discounts
1pc. $900.00
10pc. $844.34
25pc. $793.46
50pc. $730.76
100pc. $653.99
Contact Us for Quantities over 100
Contact Us Contact Us

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.
