Servo Systems

PKS-FD134S-06

The PKS-FD134S-06 Servo System includes a 600 Watt Servo Motor or Servo Motor with brake, operated by the FD134S-LB-000 Servo Drive. These packages are ideal and provide easy start-ups, convenience, and performance. The Servo Motors included in these packages provide torque up to 5.73 Nm. The FD134S-LB-000 Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. Each system includes a 5m Motor Power Cable, 5m Encoder Cable and a Communication cable. If purchasing the option with a Brake then a 5m Brake Cable will be included as well.




  • 24-70VDC
  • Rated Torque of 2.39 Nm
  • Power Ratings up to 600 Watts
  • Maximum Speed of 3500 RPM
  • Magnetoelectric Encoder (DSU) or 2500 PPR Incremental Encoder (DSH)
  • IP65 for Body, IP54 Shaft Seal
  • Brake Option Available
  • Position, Speed, and Torque Control

Item
↑ ↓
Rated
Power
(Watts)
↑ ↓
Rated
Voltage
(VAC)
↑ ↓
Rated
Speed
(rpm)
↑ ↓
Rated
Torque
(Nm)
↑ ↓
Rated
Current
(Arms)
↑ ↓
Brake
↑ ↓
Drive
Control
Capabilities
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
PKS-FD134S-06-60S-AAK-DSH 600 24-70 VDC 3000 1.91 16.5 No Position,
Speed, Torque
Click here to Download Software Click here to request a Quote. $755.00 view here
Quantity Discounts
1pc. $755.00
10pc. $707.20
25pc. $660.49
50pc. $620.40
100pc. $602.00
Contact Us for Quantities over 100
Contact Us Add to Cart
PKS-FD134S-06-60S-ABK-DSH 600 24-70 VDC 3000 1.91 16.5 Yes Position,
Speed, Torque
Click here to Download Software Click here to request a Quote. $910.00 view here
Quantity Discounts
1pc. $910.00
10pc. $853.01
25pc. $796.84
50pc. $746.28
100pc. $682.62
Contact Us for Quantities over 100
Contact Us Add to Cart
PKS-FD134S-06-60S-MAK-DSU 600 24-70 VDC 3000 1.91 16.5 No Position,
Speed, Torque
Click here to Download Software Click here to request a Quote. $675.00 view here
Quantity Discounts
1pc. $675.00
10pc. $631.80
25pc. $588.52
50pc. $554.22
100pc. $537.72
Contact Us for Quantities over 100
Contact Us Add to Cart
PKS-FD134S-06-60S-MBK-DSU 600 24-70 VDC 3000 1.91 16.5 Yes Position,
Speed, Torque
Click here to Download Software Click here to request a Quote. $816.00 view here
Quantity Discounts
1pc. $816.00
10pc. $763.72
25pc. $711.61
50pc. $667.88
100pc. $606.46
Contact Us for Quantities over 100
Contact Us Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

  • Driver Dimensions

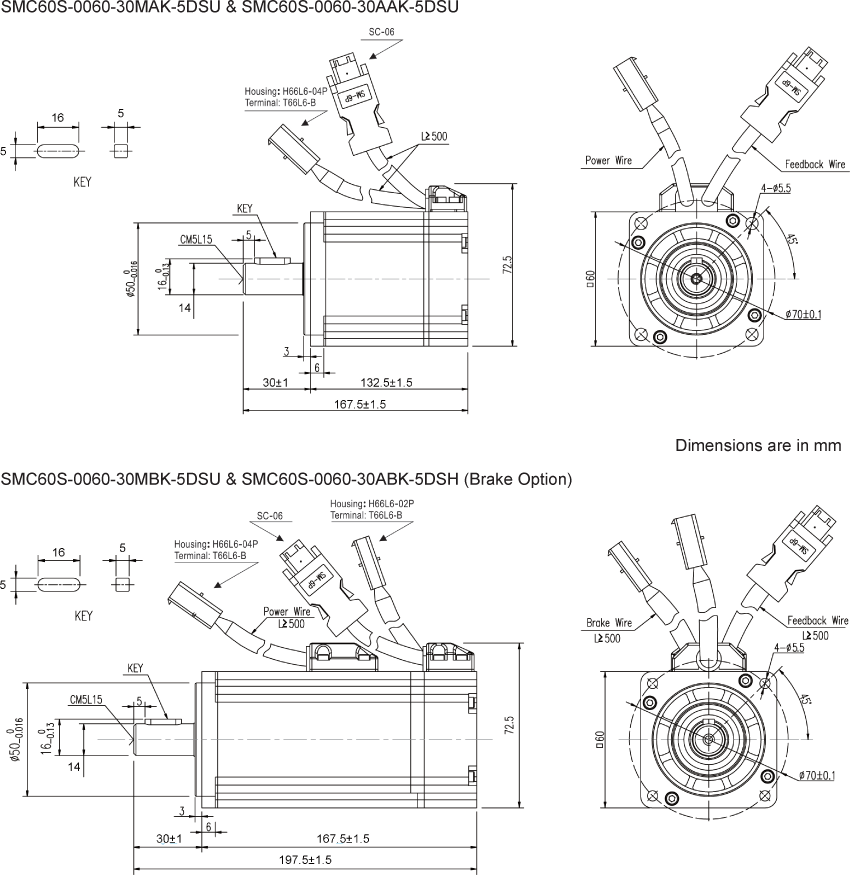

  • Motor Dimensions

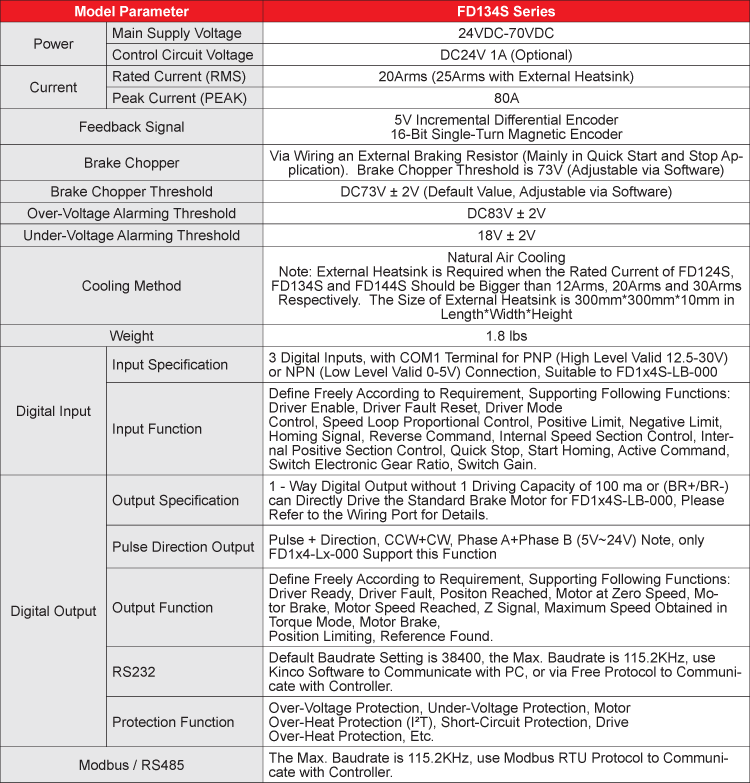

  • Driver Specifications
  • Motor Specifications
  • Driver Pinout
  • Torque Curve
