Servo Drivers

FD124S-LB-000

The FD124S-LA-000 Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this servo drive package is the flexibility of using a single Servo Drive that can accommodate motors with power ratings ranging from 200-400W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The FD124S-LA-000 Servo Drive can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. The FD124S-LA-000 Servo Drive operates with 24-70VDC input. These drives come standard with an RS232 which can be operated using MODBUS Protocol, a RS485 port, or can be operated using our Free, Easy-to-Use Software. Please consult our Application Engineers for more information.

Note: To communicate to the drives, the RS-232-RJ45 Cable is required.




  • 24-70VDC
  • Rated Current is 12A (RMS), Peak Current is 36A
  • 200-400 Watt Power Range
  • Position, Speed, and Torque Control
  • RS232 and RS485 Port
  • MODBUS RTU or Pulse and Direction
  • Supports Incremental or 16-Bit Absolute Encoders
  • Communication Software
    • Configure Parameters
    • I/O Signal Monitoring
    • Speed and Position Curves
    • Gain Adjustments
  • Programmable Inputs and Outputs
    • 4 Inputs (LA) or 3 Inputs (LB)
    • 2 Outputs (LA has 2, LB has 1 + 1 for Brake)
  • CE Certified

Item
↑ ↓
Rated
Power
(Watts)
↑ ↓
Rated
Voltage
↑ ↓
Drive
Control
Capabilities
↑ ↓
COMM
↑ ↓
I/O
Signals
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
FD124S-LA-000 200-400 24-70 VDC Position,
Speed, Torque
MODBUS
CANopen
4 Inputs
2 Outputs
Click here for PDF Spec Sheet Click here to Download Software Click here to request a Quote. $174.00 view here
Quantity Discounts
1pc. $174.00
10pc. $167.04
25pc. $163.91
50pc. $160.51
100pc. $157.66
Contact Us for Quantities over 100
7 in Stock Add to Cart
FD124S-LB-000 200-400 24-70 VDC Position,
Speed, Torque
MODBUS
CANopen
3 Inputs
1 Output
Click here for PDF Spec Sheet Click here to Download Software Click here to request a Quote. $188.00 view here
Quantity Discounts
1pc. $188.00
10pc. $180.10
25pc. $176.78
50pc. $173.19
100pc. $170.16
Contact Us for Quantities over 100
4 in Stock Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

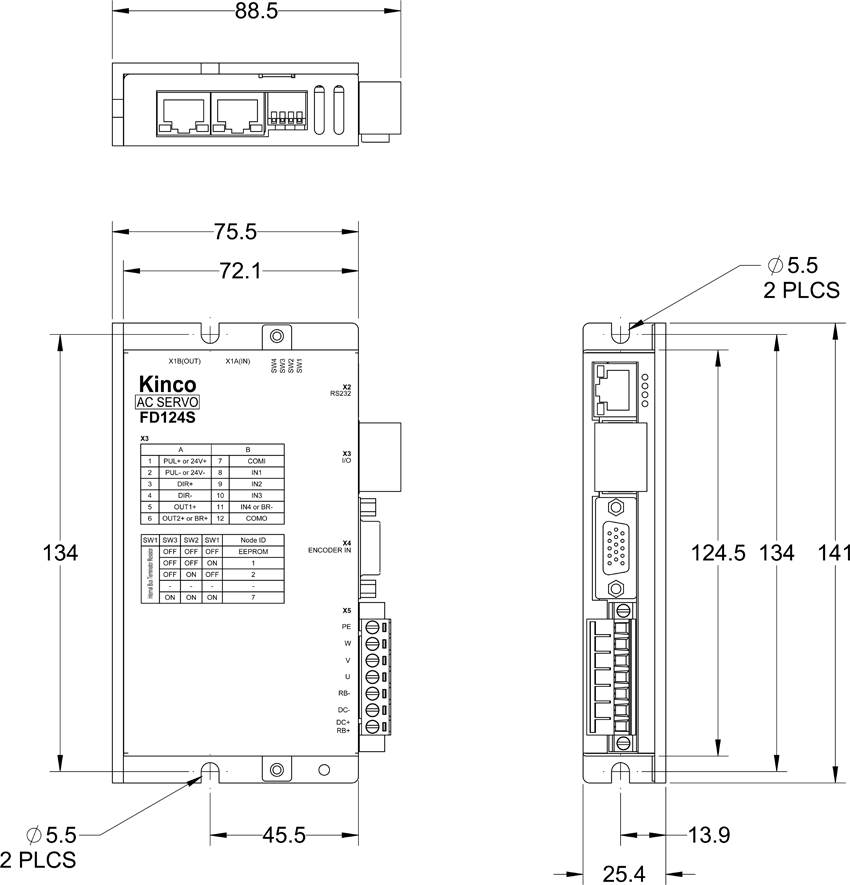

  • Dimensions
  • Wiring Diagram
