K633 Analog IO Expansion

The PLC-K633-04IV Analog Input/Output Module was designed to do the job of both the PLC-K631 and PLC-K632 series all on one module. The PLC-K633-04IV is equipped with 2 analog inputs and 2 analog outputs. The PLC-K633-04IV performs a 12-bit conversion on the inputs for high-resolution measurement and can be configured to read voltages or currents of different ranges. The current ranges of the analog inputs are 0-20 mA or 4-20 mA, and the voltage ranges of the analog outputs are 1-5 VDC or 0-10 VDC. The analog outputs have a 12-bit output resolution allowing the user to increment in 976uV or 3.9uA steps. The current ranges of the analog outputs are; 0-20 mA or 4-20 mA. The voltage ranges of the analog outputs are 1-5 VDC or 0-10 VDC. The K633 series has an accuracy of +/- 0.5% to ensure a precise reading.




  • Current and Voltage Inputs
  • Current and Voltage Outputs
  • Provides Wide Input/Output Range
  • Up to 14 Analog Input/Output Modules in One PLC-K6 System
  • 12-bit Conversion for High-Resolution Measurement
  • Very Reliable +/-0.3% Error

Item
↑ ↓
Module
Type
↑ ↓
Input
Points
↑ ↓
Output
Points
↑ ↓
Input
Type
↑ ↓
Output
Type
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Add To
Cart
K633-04IV Expansion Module,
Analog I/O
2 2 0-20mA
4-20mA
1-5VDC
0-10VDC
0-20mA
4-20mA
1-5VDC
0-10VDC
Click here for PDF Spec Sheet Click here to request a Quote. $132.00 view here
Quantity Discounts
1pc. $132.00
10pc. $124.86
25pc. $119.18
50pc. $115.68
100pc. $112.37
Contact Us for Quantities over 100
Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

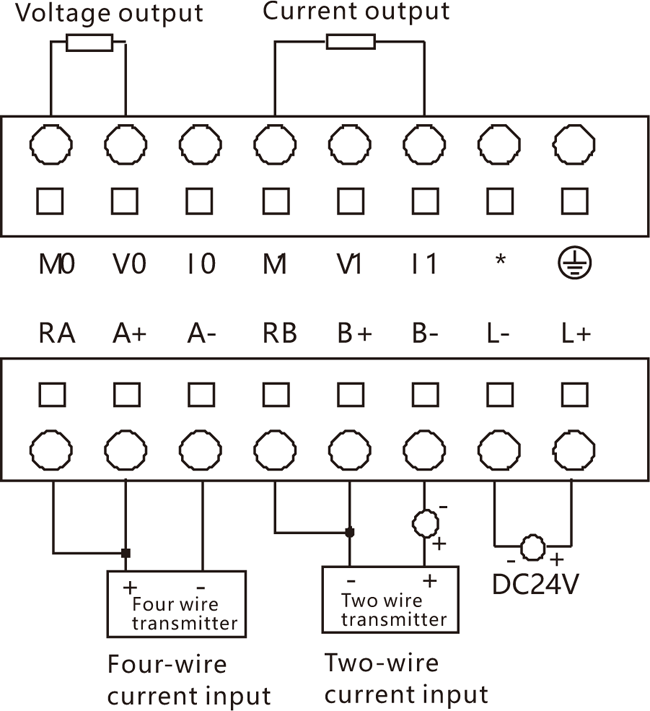

  • K633-04IV Wiring

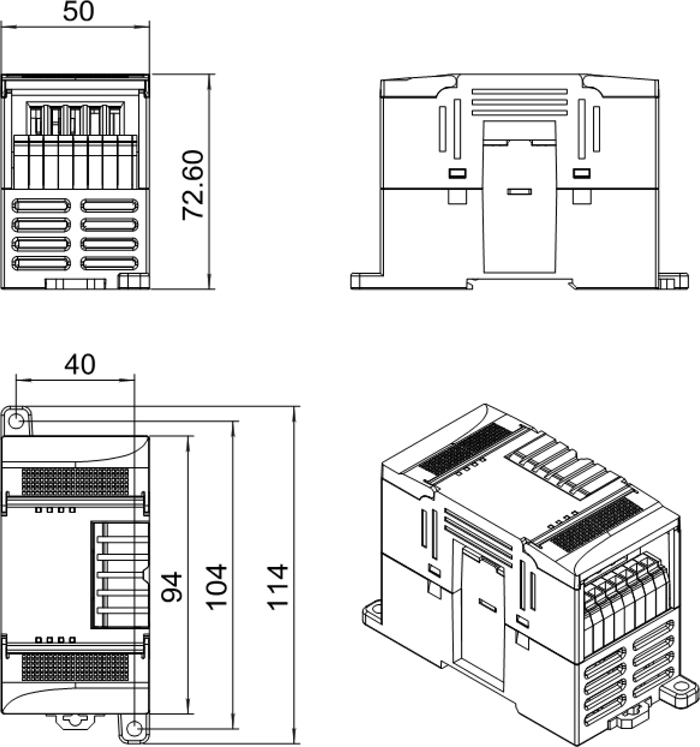

  • Dimensions
