K632 Analog IO Expansion

The PLC-K632-02IV is an Analog Output Expansion Module that reads in a digital value from the PLC and outputs either a voltage or current that reflects that digital value. This unit has a 12-bit digital output resolution allowing the user to increment in 976 μV or 3.9 μA steps. The PLC-K632-02IV can output a current range of 0-20 mA or 4-20 mA, and a voltage range of 1-5 VDC or 0-10 VDC. The K631 series has an accuracy of +/- 0.5% to ensure a precise reading. These modules are attached to the PLC-K6 CPU series to provide analog output capabilities. Up to 6 of the analog output modules can be attached to the K6 series CPUs, allowing for a maximum of 12 analog outputs or 14 analog outputs if using the PLC-K606EA-30AT.




  • Current and Voltage Outputs
  • Provides Wide Output Range
  • Up to 14 Analog Output Modules in One PLC-K6 System
  • 12-bit Conversion for High-Resolution Measurement
  • Very Reliable +/-0.3% Error

Item
↑ ↓
Module
Type
↑ ↓
Input
Points
↑ ↓
Output
Points
↑ ↓
Input
Type
↑ ↓
Output
Type
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Add To
Cart
K632-02IV Expansion Module,
Analog Ouputs
N/A 2 N/A 0-20mA
4-20mA
1-5VDC
0-10VDC
Click here for PDF Spec Sheet Click here to request a Quote. $110.00 view here
Quantity Discounts
1pc. $110.00
10pc. $104.25
25pc. $99.51
50pc. $96.59
100pc. $93.83
Contact Us for Quantities over 100
Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

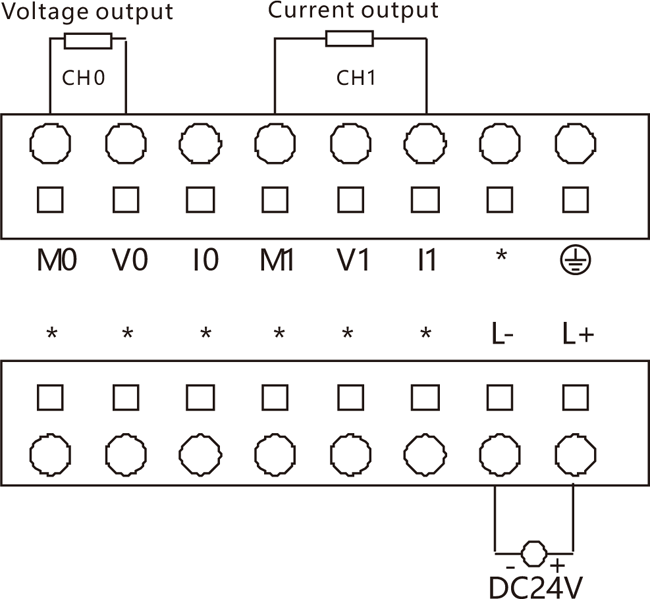

  • K632-02IV Wiring
  • Dimensions
