K622 Discrete IO Expansion

The PLC-K622 Discrete Output Expansion Modules are offered in Transistor or Relay and 8 or 16 outputs. These modules are attached to the PLC-K6 CPUs to expand beyond the onboard outputs. The PLC-K6 CPUs can handle up to 264 I/O points with a maximum of 14 expansion modules. If a user were to select the PLC-K608-40AT along with 6 PLC-K622-16DT units, the user would achieve the maximum 264 I/O points within the constraint of 6 expansion modules. The PLC-K622-__DT modules come with transistor outputs with a sourcing configuration. A sourcing output is internally pulled down to ground; the current wants to flow into the output. The PLC-K622-__XR modules come with relay outputs that can handle loads up to 30 VDC and 250 VAC. Relay outputs are great to drive AC or DC motors or turn any AC or DC device on. The transistor output modules are opto-isolated for unit protection.




  • 8 or 16 Outputs
  • Transistor or Relay Options
  • Transistor Outputs are Rated for 500 mA @ 24 VDC
  • Relay Outputs are Rated for 2 A @ 30 Vdc or 250 VAC
  • Transistor Outputs are Opto-isolated
  • LED Display to Monitor Running Conditions
  • Easy Maintenance and Installation

Item
↑ ↓
Module
Type
↑ ↓
Input
Points
↑ ↓
Output
Points
↑ ↓
Input
Type
↑ ↓
Output
Type
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Add To
Cart
K622-08DT Expansion Module,
Discrete Outputs
N/A 8 N/A Sourcing Click here for PDF Spec Sheet Click here to request a Quote. $59.00 view here
Quantity Discounts
1pc. $59.00
10pc. $55.68
25pc. $53.15
50pc. $51.59
100pc. $49.98
Contact Us for Quantities over 100
Add to Cart
K622-08XR Expansion Module,
Discrete Outputs
N/A 8 N/A Relay Click here for PDF Spec Sheet Click here to request a Quote. $66.00 view here
Quantity Discounts
1pc. $66.00
10pc. $62.54
25pc. $59.70
50pc. $57.94
100pc. $56.01
Contact Us for Quantities over 100
Add to Cart
K622-16DT Expansion Module,
Discrete Outputs
N/A 16 N/A Sourcing Click here for PDF Spec Sheet Click here to request a Quote. $79.00 view here
Quantity Discounts
1pc. $79.00
10pc. $75.05
25pc. $71.64
50pc. $69.53
100pc. $67.18
Contact Us for Quantities over 100
Add to Cart
K622-16XR Expansion Module,
Discrete Outputs
N/A 16 N/A Relay Click here for PDF Spec Sheet Click here to request a Quote. $89.00 view here
Quantity Discounts
1pc. $89.00
10pc. $85.11
25pc. $81.24
50pc. $78.68
100pc. $75.62
Contact Us for Quantities over 100
Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

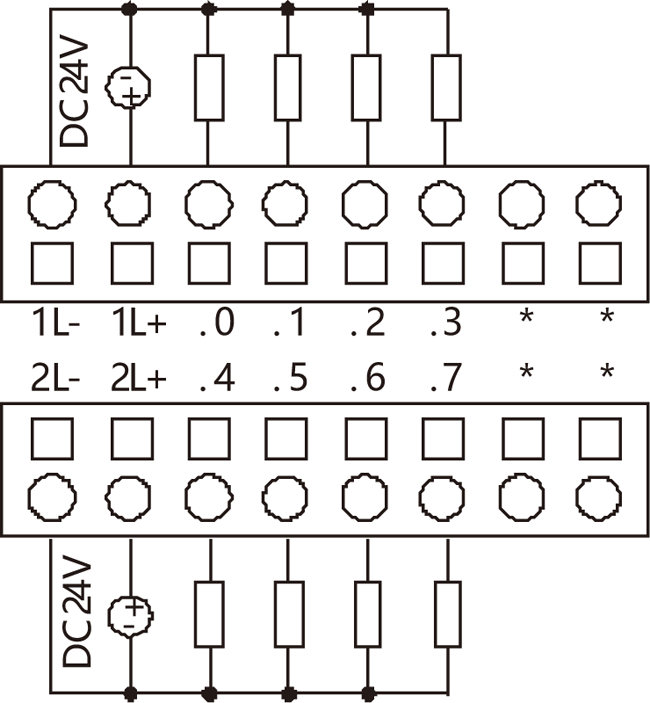

  • K622-08DT Wiring

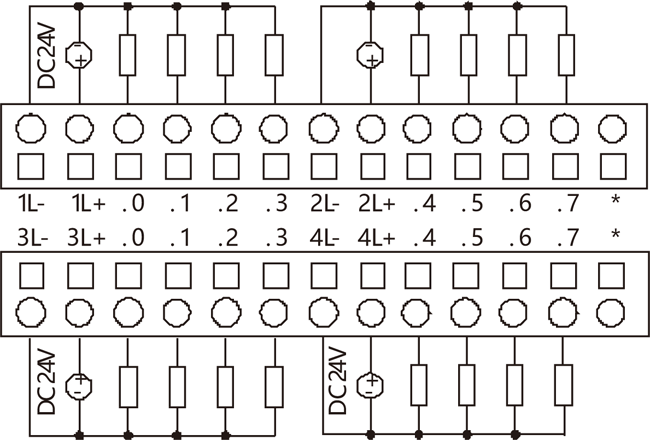

  • K622-16DT Wiring

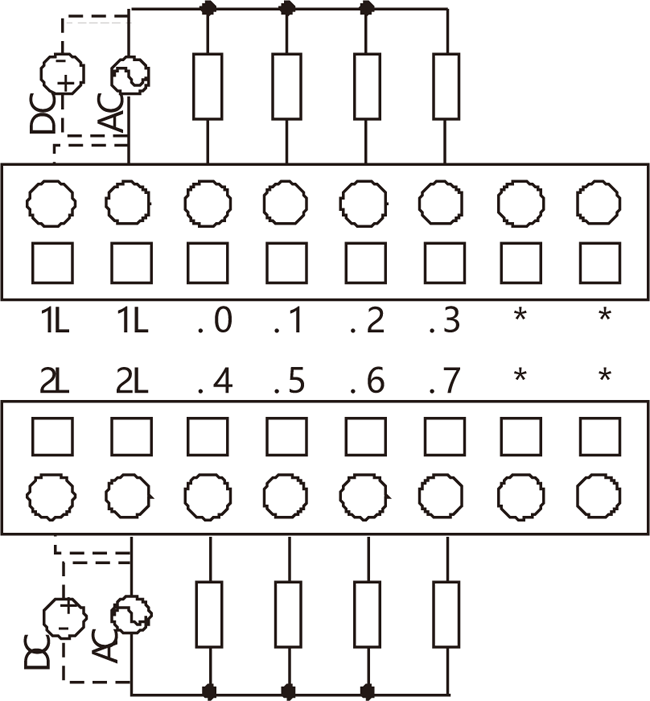

  • K622-08XR Wiring

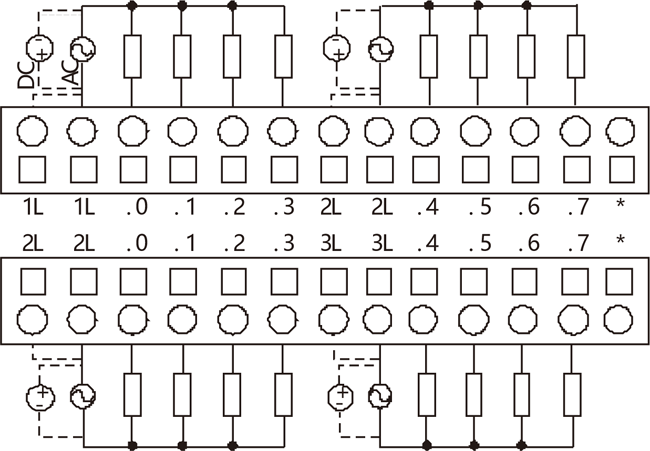

  • K622-16XR Wiring
  • K622-08DT & K622-08XR Dimensions
  • K622-16DT & K622-16XR Dimensions
