K606 CPUs

The Kinco K6 series provides many diverse functions and is a cost-effective micro integrated PLC. The K6 CPU provides special I/O functions, CANopen master, multiple RS485 ports, high speed counter inputs and PTO/PWM outputs and so on. Equipped with diverse extension modules, the K6 PLCs are equipped to meet requirements of most process control applications. Kinco-K6 seamlessly integrates with the Green series HMIs, CD/FD/JD servo drives and CV/FV VFD’s to provide users with easy automation solutions. CPU modules are integrated with a certain number of I/O points onboard. If the onboard I/O points are not enough, users can connect up to 14 expansion modules offering up to 136 I/O points, which will meet most automation demands.




  • Four High Speed Counters
  • Four Pulse Train/PWM Outputs
  • 14 or 24 Sinking or Sourcing Outputs
  • 10 or 16 Outputs
  • 2 RS485 Ports + 1 Ethernet Port
  • Supports Modbus TCP Protocol
  • Communicate with up to 32 Devices
  • Up to 14 Expansion Modules

Item
↑ ↓
Module
Type
↑ ↓
Input
Points
↑ ↓
Output
Points
↑ ↓
Input
Type
↑ ↓
Output
Type
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
K606-24AR CPU 14 10 Sinking or Sourcing Relay Click here for PDF Spec Sheet Click here to request a Quote. $169.00 view here
Quantity Discounts
1pc. $169.00
10pc. $160.12
25pc. $151.26
50pc. $138.45
100pc. $127.94
Contact Us for Quantities over 100
10 in Stock Add to Cart
K606-24AT CPU 14 10 Sinking or Sourcing Transistor Click here for PDF Spec Sheet Click here to request a Quote. $169.00 view here
Quantity Discounts
1pc. $169.00
10pc. $160.12
25pc. $151.26
50pc. $138.45
100pc. $127.94
Contact Us for Quantities over 100
47 in Stock Add to Cart
K606-24DR CPU 14 10 Sinking or Sourcing Relay Click here for PDF Spec Sheet Click here to request a Quote. $160.00 view here
Quantity Discounts
1pc. $160.00
10pc. $152.18
25pc. $143.68
50pc. $132.93
100pc. $122.58
Contact Us for Quantities over 100
30 in Stock Add to Cart
K606-24DT CPU 14 10 Sinking or Sourcing Transistor Click here for PDF Spec Sheet Click here to request a Quote. $160.00 view here
Quantity Discounts
1pc. $160.00
10pc. $152.18
25pc. $143.68
50pc. $132.93
100pc. $122.58
Contact Us for Quantities over 100
49 in Stock Add to Cart
K606EA-30AT CPU 14 10 Sinking or Sourcing Transistor Click here for PDF Spec Sheet Click here to request a Quote. $253.00 view here
Quantity Discounts
1pc. $253.00
10pc. $240.61
25pc. $226.27
50pc. $208.56
100pc. $191.89
Contact Us for Quantities over 100
4 in Stock Add to Cart
K606EA-30DT CPU 14 10 Sinking or Sourcing Transistor Click here for PDF Spec Sheet Click here to request a Quote. $253.00 view here
Quantity Discounts
1pc. $253.00
10pc. $240.61
25pc. $226.27
50pc. $208.56
100pc. $191.89
Contact Us for Quantities over 100
Typ. 10 Days Contact Us

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

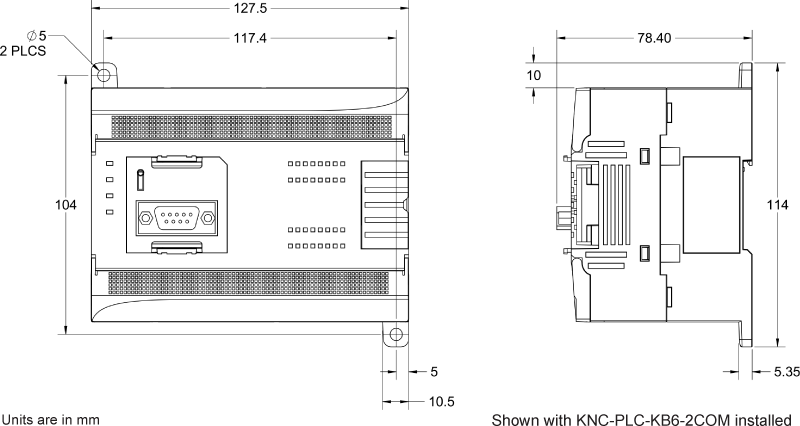

  • K606 Dimensions

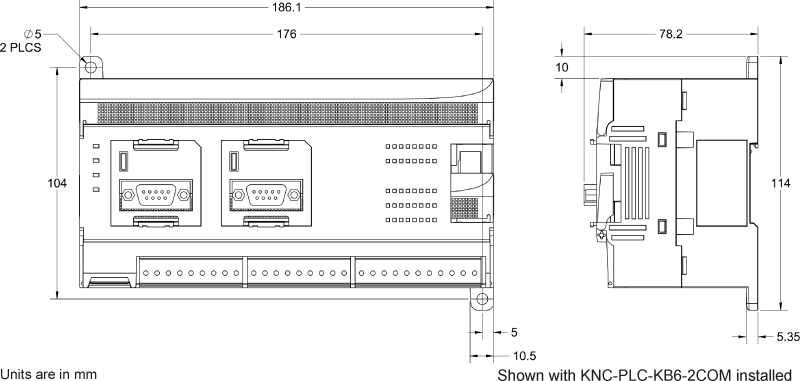

  • K606EA Dimensions

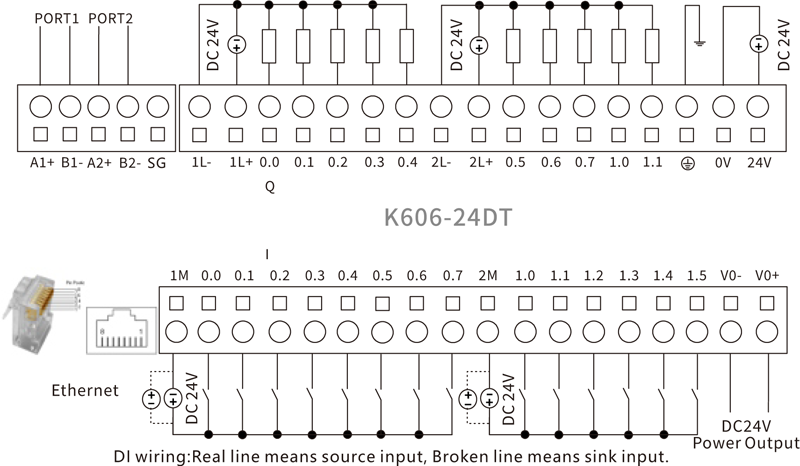

  • K606-24DT Wiring

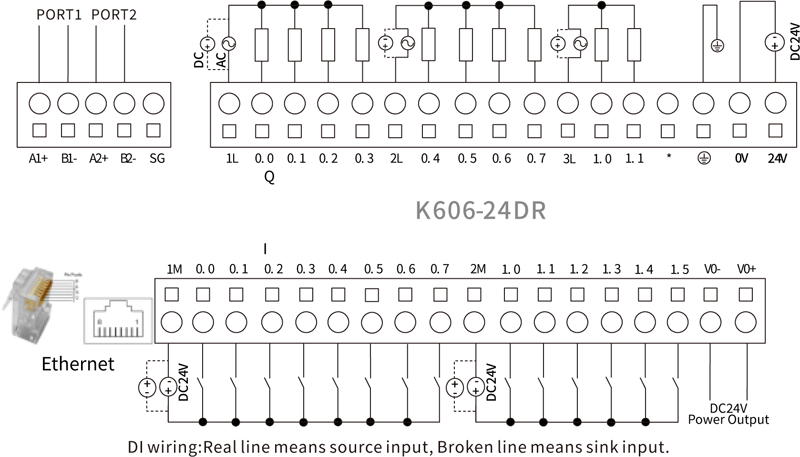

  • K606-24DR Wiring

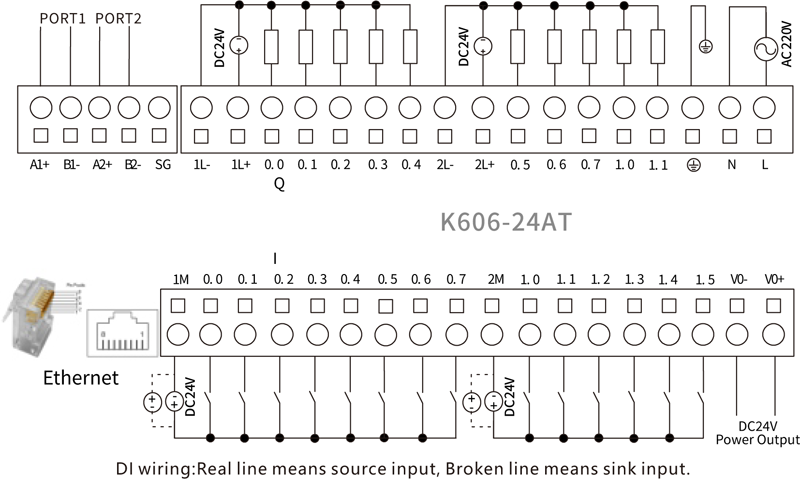

  • K606-24AT Wiring

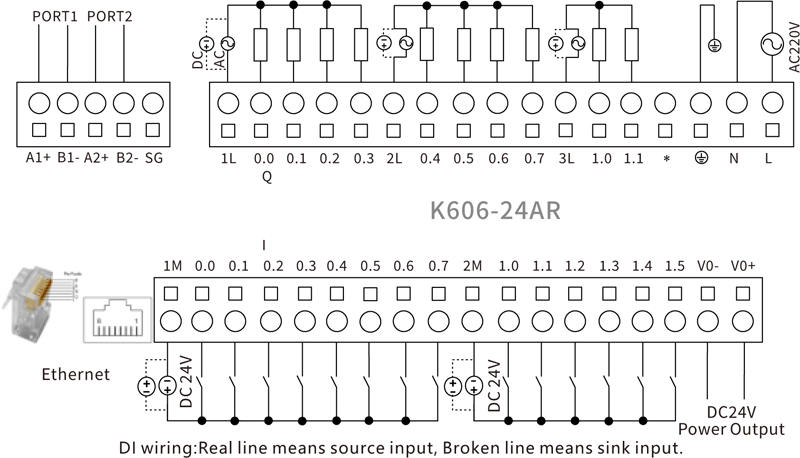

  • K606-24AR Wiring

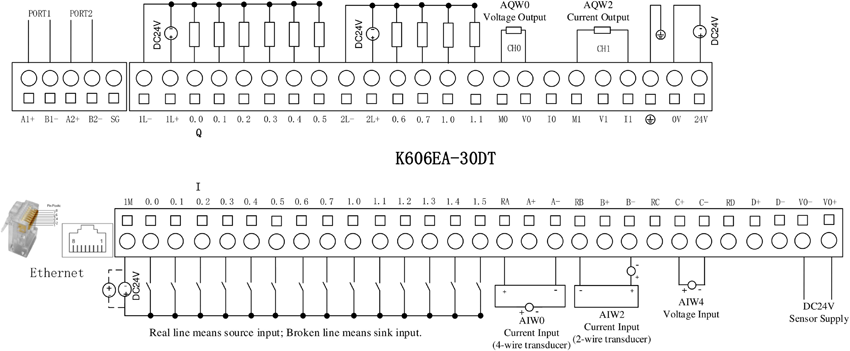

  • K606EA-30DT Wiring

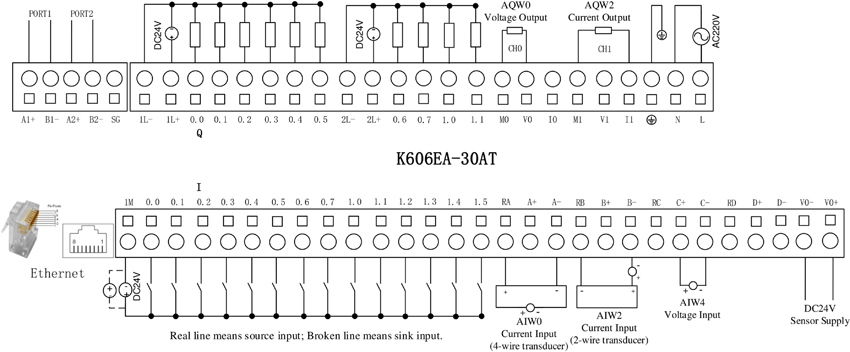

  • K606EA-30AT Wiring
