K205 CPUs

The K2 series provides special I/O functions, a Micro USB (USB 2.0) programming port, 4 high-speed counters, 3 high-speed pulse outputs, two RS485 communication ports, integrated digital input and output channels, and more. The high speed counters come in 10 different operation modes, support a single-phase frequency up to 50 KHz, and a dual-phase (A/B phase) frequency up to 50 KHz. In the 10 different modes, each counter has its own inputs for clock, direction control, start and reset, and has a 32-bit present value. The built-in high-speed pulse outputs can reach a maximum frequency of 50 KHz, and support PWM. The free KincoBuilder software provides absolute and relative positioning, homing, jogging, and quick stop instructions. The K2 PLC series is an ideal hub for data processing with field devices, such as temperature modules, servo drives, field busses and more.




  • Four High-Speed Counters
  • Multiple Pulse Train Outputs
  • Relay and/or Transistor Outputs
  • 26 Modes and Inputs of High-Speed Counters
  • Transistor and/or Relay Outputs
  • Multiple Communication Ports
  • Rated Input voltage DC 24V
  • 6 Direct Input, 6 Direct Output, and 4 Direct Input/Output

Item
↑ ↓
Module
Type
↑ ↓
Input
Points
↑ ↓
Output
Points
↑ ↓
Input
Type
↑ ↓
Output
Type
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
K205-16DR CPU 6 - 10 6 - 10 Sinking or Sourcing Relay Click here for PDF Spec Sheet Click here to request a Quote. $72.00 view here
Quantity Discounts
1pc. $72.00
10pc. $69.95
25pc. $69.49
50pc. $68.95
100pc. $68.59
Contact Us for Quantities over 100
20 in Stock Add to Cart

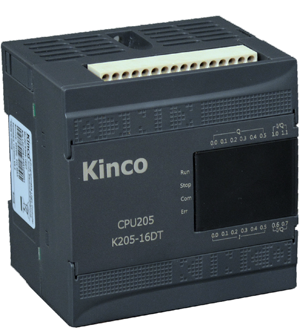

K205-16DT CPU 6 - 10 6 - 10 Sinking or Sourcing Transistor Click here for PDF Spec Sheet Click here to request a Quote. $72.00 view here
Quantity Discounts
1pc. $72.00
10pc. $69.95
25pc. $69.49
50pc. $68.95
100pc. $68.59
Contact Us for Quantities over 100
14 in Stock Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

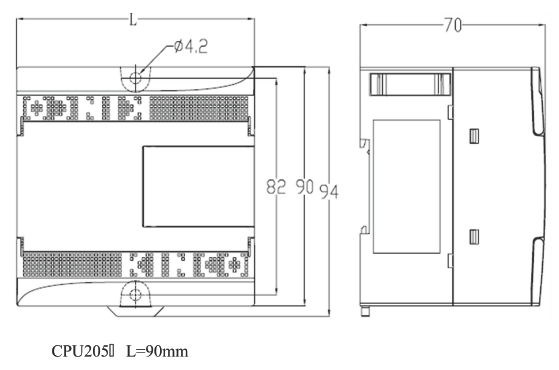

  • Dimensions

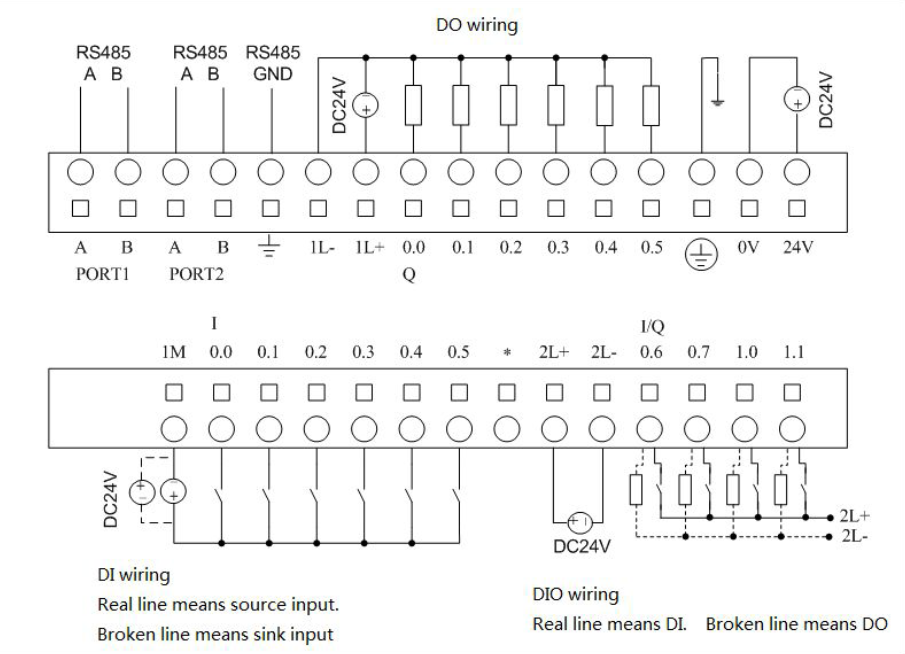

  • 16DT Wiring Diagram

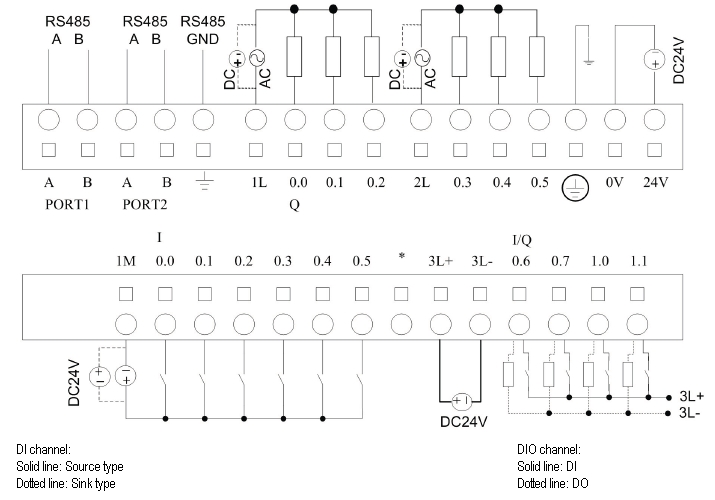

  • 16DR Wiring Diagram
