K205E CPUs

The PLC-K205E series provides special I/O functions, a Micro USB (USB 2.0) programming port, 4 high-speed counters, 3 high-speed pulse outputs, two RS485 communication ports, integrated digital input and output channels, and more. The high speed counters come in 10 different operation modes, support a single-phase frequency up to 50 KHz, and a dual-phase (A/B phase) frequency up to 50 KHz. In the 10 different modes, each counter has its own inputs for clock, direction control, start and reset, and has a 32-bit present value. The built-in high-speed pulse outputs can reach a maximum frequency of 50 KHz, and support PWM. The free KincoBuilder software provides absolute and relative positioning, homing, jogging, and quick stop instructions. The PLC-K205E series is an ideal hub for data processing with field devices, such as temperature modules, servo drives, field busses and more.

Note: To connect the K205E PLC with the HMI an AAUSB-ABMICRO-6 Cable is required.




  • Four High Speed Counters
  • Modbus RTU Networking (Master/Slave)
  • Real Time Clock
  • 3 Pulse Train Outputs / Pulse Width Modulation
  • Transistor Output
  • Multiple Communication Ports: 1 Micro USB, 2 RS485
  • Rated Input Voltage DC 24V
  • 8 Direct Input, 8 Direct Output, and 6 Direct Input/Output
  • 20 Modes and Inputs of High-Speed Counters

Item
↑ ↓
Module
Type
↑ ↓
Input
Points
↑ ↓
Output
Points
↑ ↓
Input
Type
↑ ↓
Output
Type
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
K205EA-18DT CPU 8 8 Sinking or Sourcing Transistor Click here for PDF Spec Sheet Click here to request a Quote. $104.00 view here
Quantity Discounts
1pc. $104.00
10pc. $100.41
25pc. $97.50
50pc. $94.71
100pc. $91.54
Contact Us for Quantities over 100
10 in Stock Add to Cart
K205EX-22DT CPU 8-14 8-14 Sinking or Sourcing Transistor Click here for PDF Spec Sheet Click here to request a Quote. $102.00 view here
Quantity Discounts
1pc. $102.00
10pc. $98.54
25pc. $95.68
50pc. $92.95
100pc. $89.83
Contact Us for Quantities over 100
5 in Stock Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

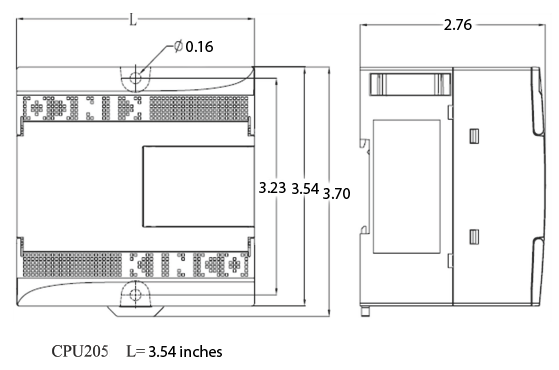

  • Dimensions

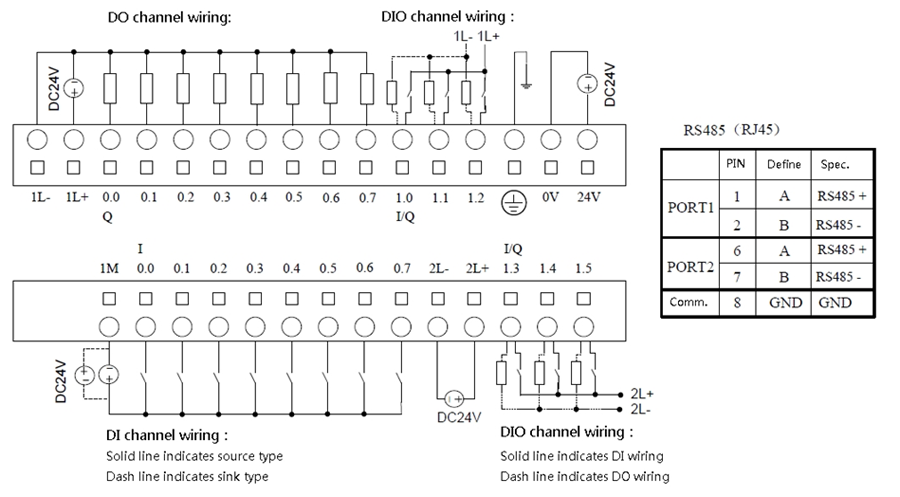

  • 22DT Wiring Diagram

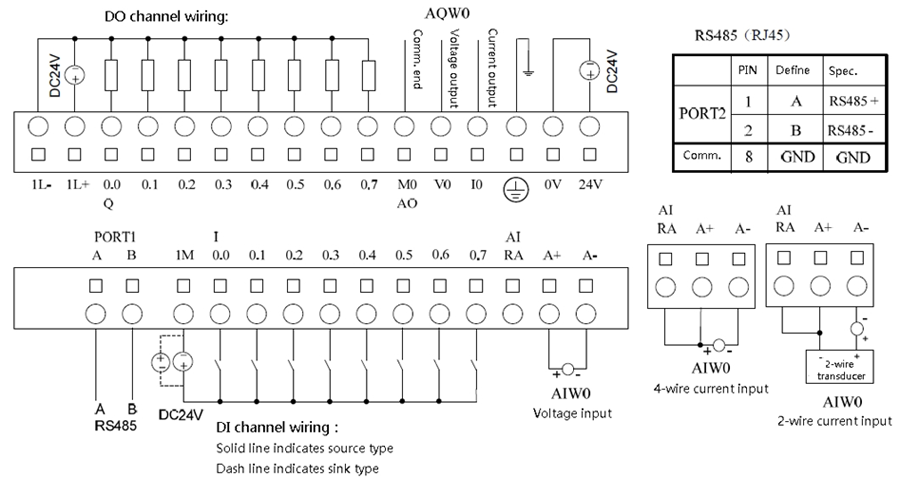

  • 18DT Wiring Diagram
