GL150E

The Green Series GL150 is the most modern and powerful HMI product that will make your application work seamlessly, without missing a step. The GL150 Series has a new structure and elegant body, compared to previous HMI ’s. This HMI line comes with a 65536 Color Display mode that gives your touch screen rich color and incomparable resolution. The Green Series products use the most advantageous ARM Cortex-A7 architecture industrial-grade processors, which ensure that the HMI ’s work efficiently. Furthermore, it has a much higher hardness and intensity with a higher temperature resistance. Each HMI supports simultaneous communications via its multiple serial ports, so that you can connect to different controllers at the same time. With the simple, convenient and powerful DTools configuration software, the user can master its design method and create first-class programs efficiently.

Note: Anaheim Automation wants to provide our customers with a solution, not just a product, so we have great economical PLC ’s which are a perfect pair for the Kinco HMI ’s. If you purchase a PLC (only for PLC’s K506 and K508) with a Green Series HMI, the CBL-MT54-KC cable is needed.




  • 15" Display
  • 65536 True Color
  • 32-Bit 792 MHz ARM RISC CPU
  • 128MB NAND FLASH + 128MB DDR3 Memory
  • Real-Time Clock, Reserve Time for More than 2 Years at Power Off State
  • 2 COM Ports, Supports Simultaneous Communications, Supports RS232/RS485/RS422
  • 24 VDC Input Voltage
  • CE Certified

Item
↑ ↓
Display
Size
↑ ↓
CPU
↑ ↓
Flash
↑ ↓
SDRAM
↑ ↓
Serial
Ports
↑ ↓
Expansion
Port
↑ ↓
Ethernet
↑ ↓
Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
GL150E 15" 792MHz 128MB 128MB 2 N/A 10/100 Base-T $846.00 view here
Quantity Discounts
1pc. $846.00
10pc. $831.95
25pc. $827.05
50pc. $824.70
100pc. $797.93
Contact Us for Quantities over 100
Typ. 20 Days Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

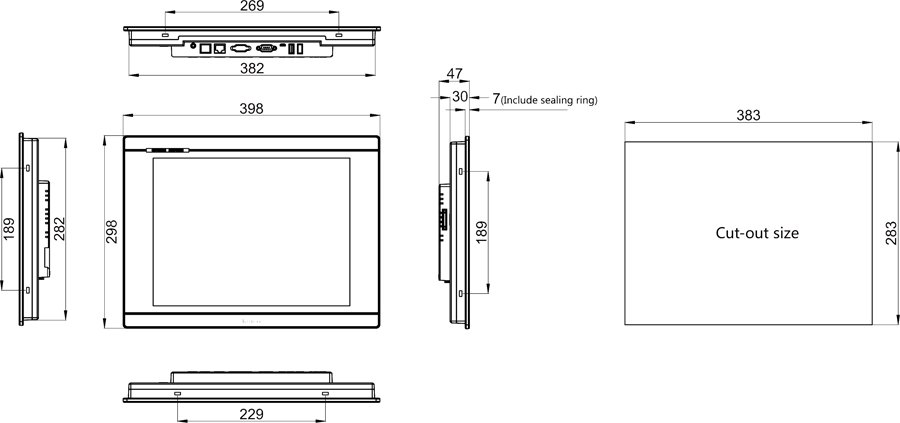

  • Dimensions
