KS123 Expansion Modules

The KS123-14DR Expansion Module can be attached to KS series CPUs, or the MK series HMI/PLC combo units, to expand the I/O beyond the onboard inputs and outputs. KS CPUs can handle a maximum of 14 expansion modules while the MK can handle 8 modules. Available modules include Digital Inputs with Sinking or Sourcing Input Types and Digital Outputs with Relay Output Type. Each expansion module allows for a distributed installation using a standard Ethernet cable from unit to unit.




  • Sinking or Sourcing Configuration
  • Relay Output Type
  • 8 Input Points
  • 6 Output Points
  • 24VDC
  • I/O is Isolated

Item
↑ ↓
Module
Type
↑ ↓
Input
Points
↑ ↓
Output
Points
↑ ↓
Input
Type
↑ ↓
Output
Type
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Add To
Cart
KS123-14DR Expansion Module,
Discrete I/O
8 6 Sinking or Sourcing Relay Click here for PDF Spec Sheet Click here to request a Quote. $70.00 view here
Quantity Discounts
1pc. $70.00
10pc. $67.10
25pc. $64.05
50pc. $62.00
100pc. $59.48
Contact Us for Quantities over 100
Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

  • Dimensions

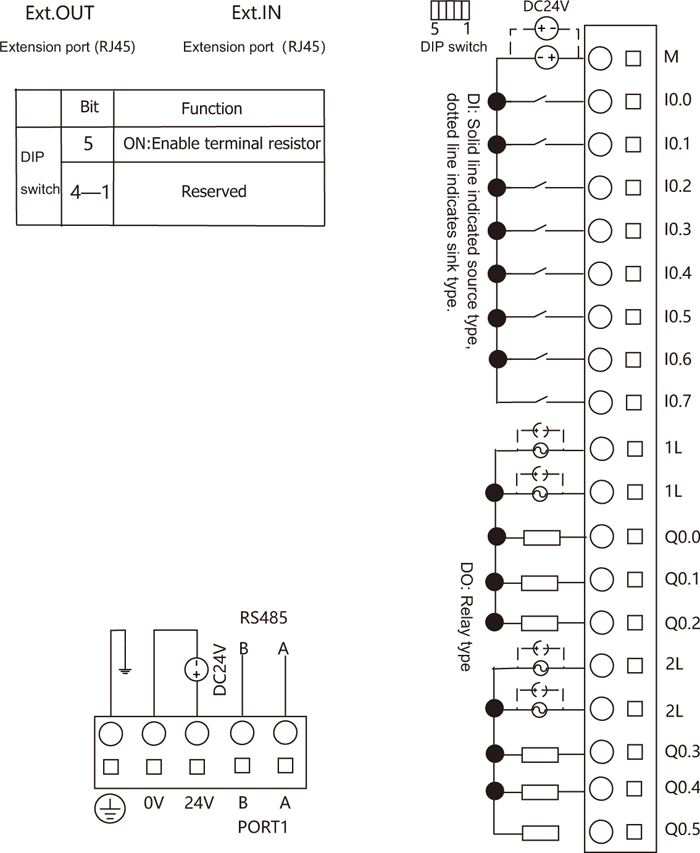

  • Wiring

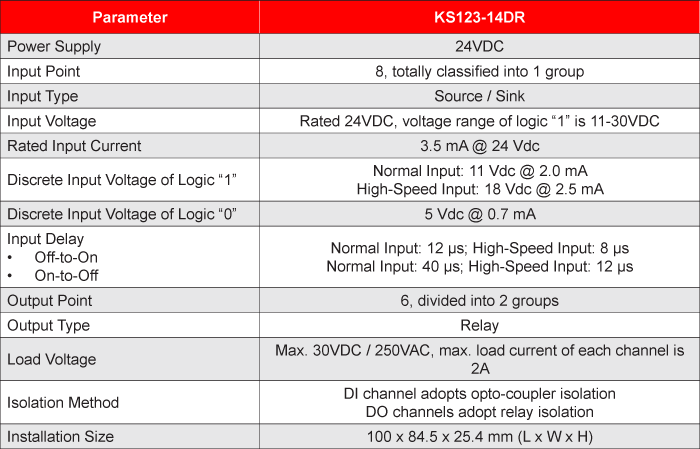

  • Specifications
