K631 Analog IO Expansion

The KNC-PLC-K631 Analog Input Expansion Modules are offered for current and voltage inputs or Resistance Temperature Detector (RTD) sensor inputs. The KNC-PLC-K631-04RD is an RTD module that accepts the following sensor types: Pt100, Pt1000, Cu50, and Cu100. The KNC-PLC-K631-04IV performs a 12-bit conversion on the inputs for high-resolution measurement and can be configured to read voltages or currents of different ranges. The KNC-PLC-K631-04IV can accept a current range 0-20 mA or 4-20 mA, and a voltage range of 1-5 VDC or 0-10 VDC. The KNC-PLC-K631 series has an accuracy of +/- 0.3% ensuring a precise reading. These modules are attached to the KNC-PLC-K6 CPU series to provide analog input capabilities. Up to 6 of the analog input modules can be attached to the KNC-PLC-K6 CPUs, allowing for a maximum of 24 analog inputs or 28 analog inputs if using the KNC-PLC-K606EA-30AT.




  • Resistance Temperature Detector Module Offered
  • Current and Voltage Input Module Offered
  • Provides Wide Input Range
  • Up to 14 Analog Input Modules in One PLC-K6 System
  • 12-bit Conversion for High-Resolution Measurement
  • Very Reliable ±0.3% Error

Item
↑ ↓
Module
Type
↑ ↓
Input
Points
↑ ↓
Output
Points
↑ ↓
Input
Type
↑ ↓
Output
Type
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Add To
Cart
K631-04IV Expansion Module,
Analog Inputs
4 N/A 0-20mA
4-20mA
1-5VDC
0-10VDC
N/A Click here for PDF Spec Sheet Click here to request a Quote. $214.00 view here
Quantity Discounts
1pc. $214.00
10pc. $210.71
25pc. $204.60
50pc. $189.98
100pc. $179.61
Contact Us for Quantities over 100
Add to Cart
K631-04RD Expansion Module,
Analog Inputs
4 N/A Pt100, Cu50,
Pt1000, Cu100
N/A Click here for PDF Spec Sheet Click here to request a Quote. $252.00 view here
Quantity Discounts
1pc. $252.00
10pc. $247.29
25pc. $240.13
50pc. $224.99
100pc. $210.29
Contact Us for Quantities over 100
Add to Cart
K631-04TC Expansion Module,
Analog Inputs
4 N/A J-type, K-type, E-type, S-type N/A Click here for PDF Spec Sheet Click here to request a Quote. $260.00 view here
Quantity Discounts
1pc. $260.00
10pc. $255.45
25pc. $248.04
50pc. $232.80
100pc. $217.98
Contact Us for Quantities over 100
Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

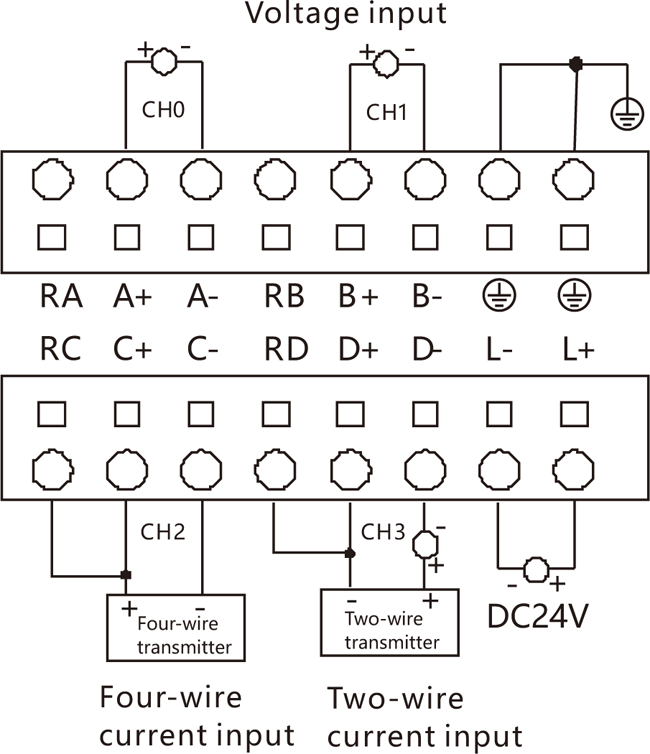

  • K631-04IV Wiring

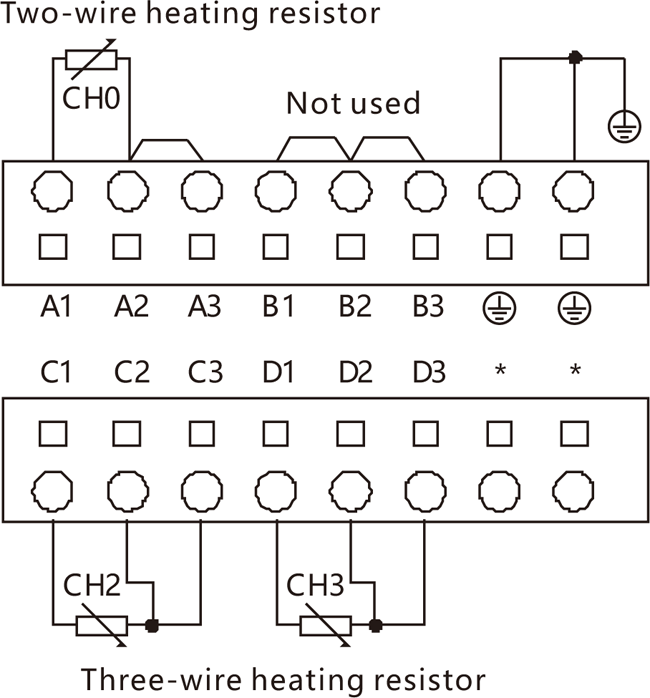

  • K631-04RD Wiring

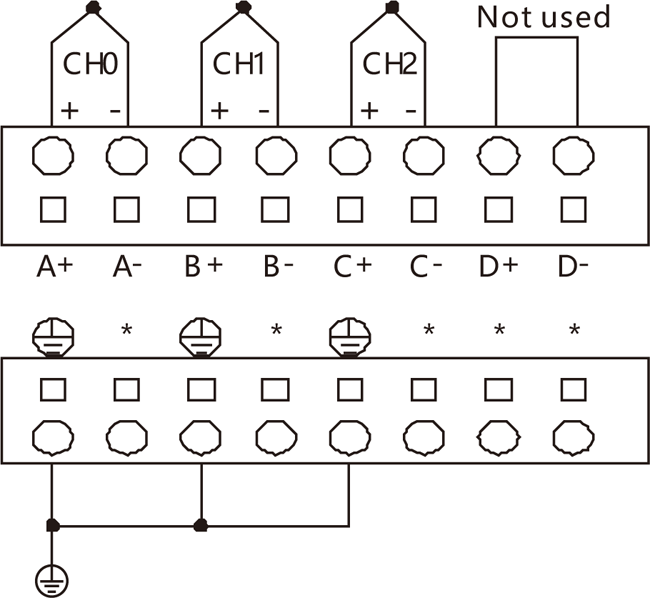

  • K631-04TC Wiring
  • Dimensions
