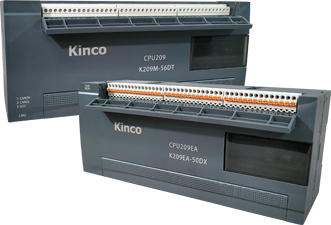

K209 CPUs

The Programmable Logic Controller (PLC) is an industrial computer control system that will monitor the current state of input devices and make important decisions based upon a custom-tailored program to fully control the state of output devices. Practically every production line, machine function, or process can be improved vastly by using this control system. But, the largest benefit of using a PLC is the ability to change and replicate the operation or process while continuing to collect and communicate vitally important information. The K209 series provides special I/O functions, a Micro USB (USB 2.0) programming port, 4 high-speed counters, 4 high-speed pulse outputs, two RS485 communication ports, one RS232 communication port, 2 CAN ports, integrated digital input and output channels, and more. The high speed counters come in 10 different operation modes, support a single-phase frequency up to 200 KHz, and a dual-phase (A/B phase) frequency up to 200 KHz. In the 10 different modes, each counter has its own inputs for clock, direction control, start and reset, and has a 32-bit preset value. The built-in high-speed pulse outputs can reach a maximum frequency of 200 KHz, and support PWM. The free KincoBuilder software provides absolute and relative positioning, homing, jogging, and quick stop instructions. The K209 series is an ideal solution for monitoring inputs and triggering outputs based on the pre-programmed parameters for industrial automation systems.

Note: To connect the K209 with the HMI an AAUSB-ABMICRO-6 Cable is required.




  • Four High-Speed Counters
  • Multiple Pulse Train Outputs
  • 26 Modes and Inputs of High-Speed Counters
  • Transistor and/or Relay Outputs
  • Multiple Communication Ports
  • Rated Input voltage DC 24V
  • Multiple Inputs and Outputs
    • 32 Discrete Inputs and 24 Discrete Outputs (K209M-56DT)
    • 22 Discrete Inputs, 6 Analog Inputs, 2 Analog Outputs and 8 Transistor + 12 Relay Outputs (K209EA-50DX)

Item
↑ ↓
Module
Type
↑ ↓
Input
Points
↑ ↓
Output
Points
↑ ↓
Input
Type
↑ ↓
Output
Type
↑ ↓
Downloads Price
(USD)
↑ ↓
Quantity
Discounts
Stock
Status
↑ ↓
Add To
Cart
K209EA-50DX CPU 22 8 transistor, 12 Relay Sinking or Sourcing Relay and
Transistor
Click here for PDF Spec Sheet Click here to request a Quote. $244.00 view here
Quantity Discounts
1pc. $244.00
10pc. $236.59
25pc. $229.74
50pc. $223.22
100pc. $216.53
Contact Us for Quantities over 100
10 in Stock Add to Cart
K209M-56DT CPU 22 24 Transistor Sinking or Sourcing Transistor Click here for PDF Spec Sheet Click here to request a Quote. $289.00 view here
Quantity Discounts
1pc. $289.00
10pc. $279.50
25pc. $271.40
50pc. $263.72
100pc. $255.92
Contact Us for Quantities over 100
10 in Stock Add to Cart

IMPORTANT NOTE: When stock status reads "contact us," the lead time could range from 6 to 16 weeks, model dependent. Please contact the factory for more details.

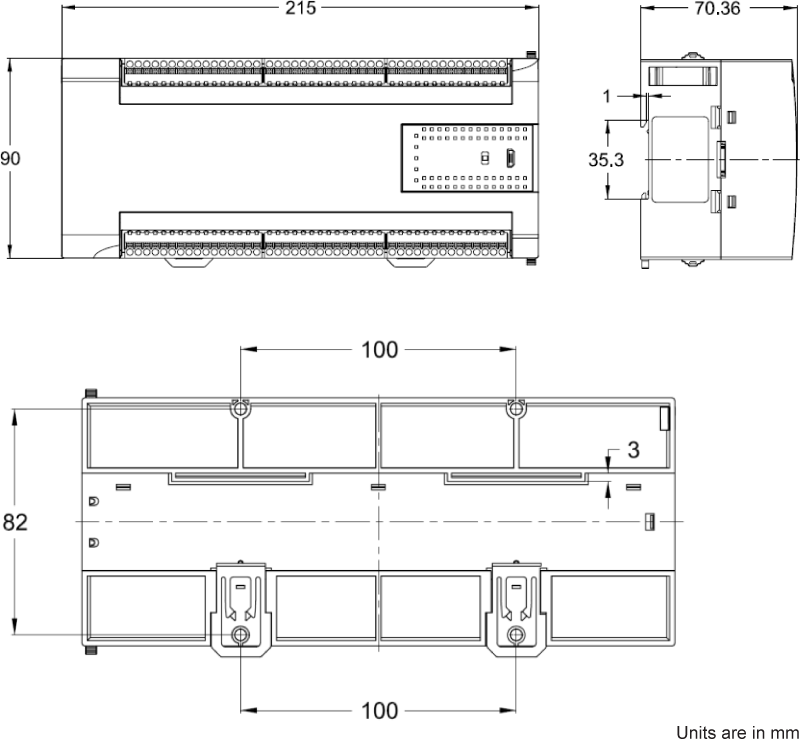

  • Dimensions
  • EA-50DX Wiring Diagram

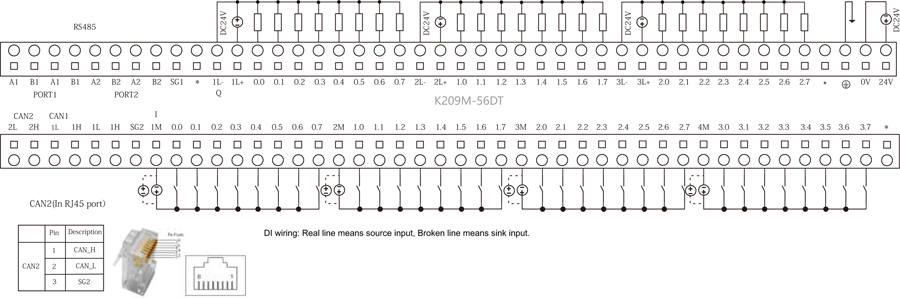

  • M-56DT Wiring Diagram
