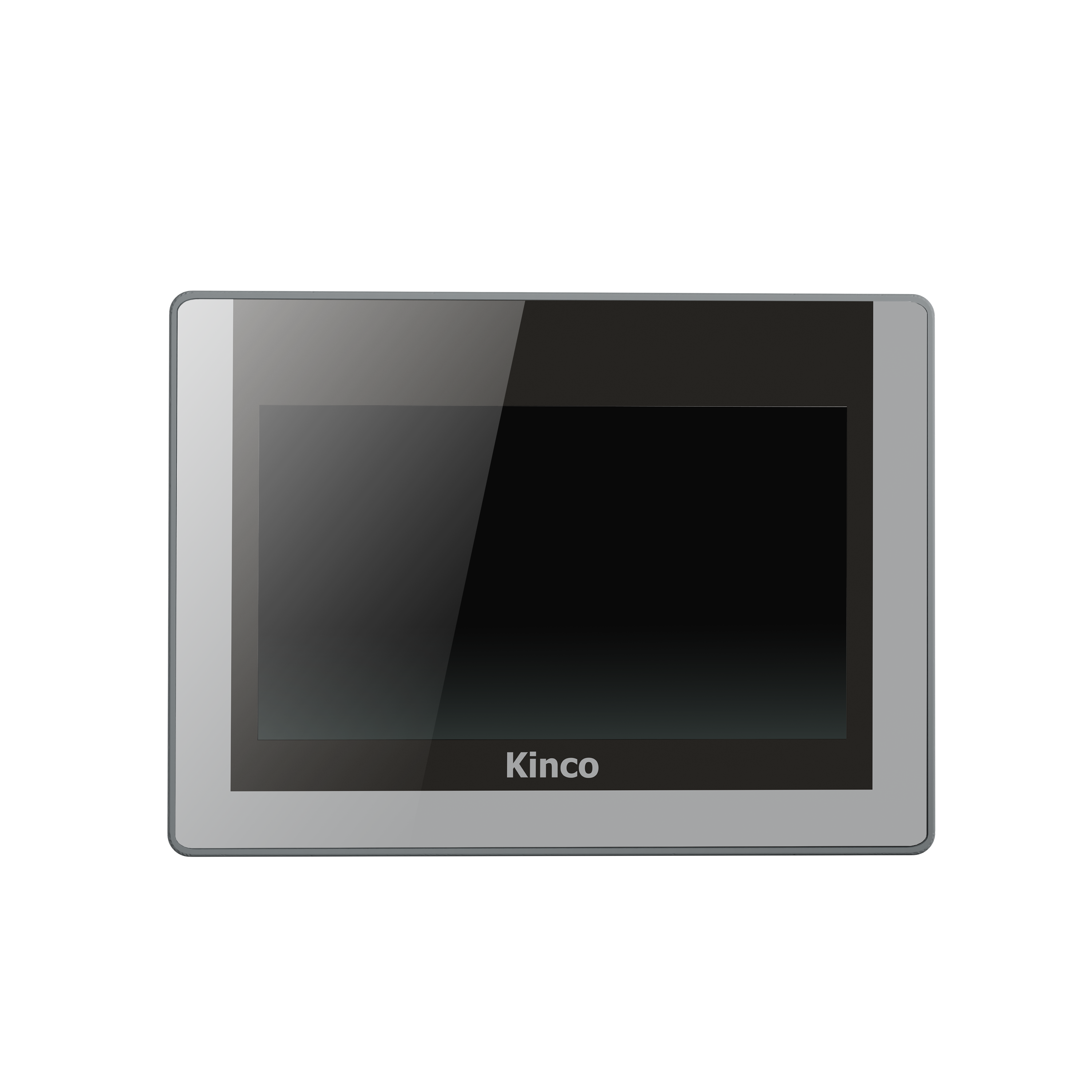

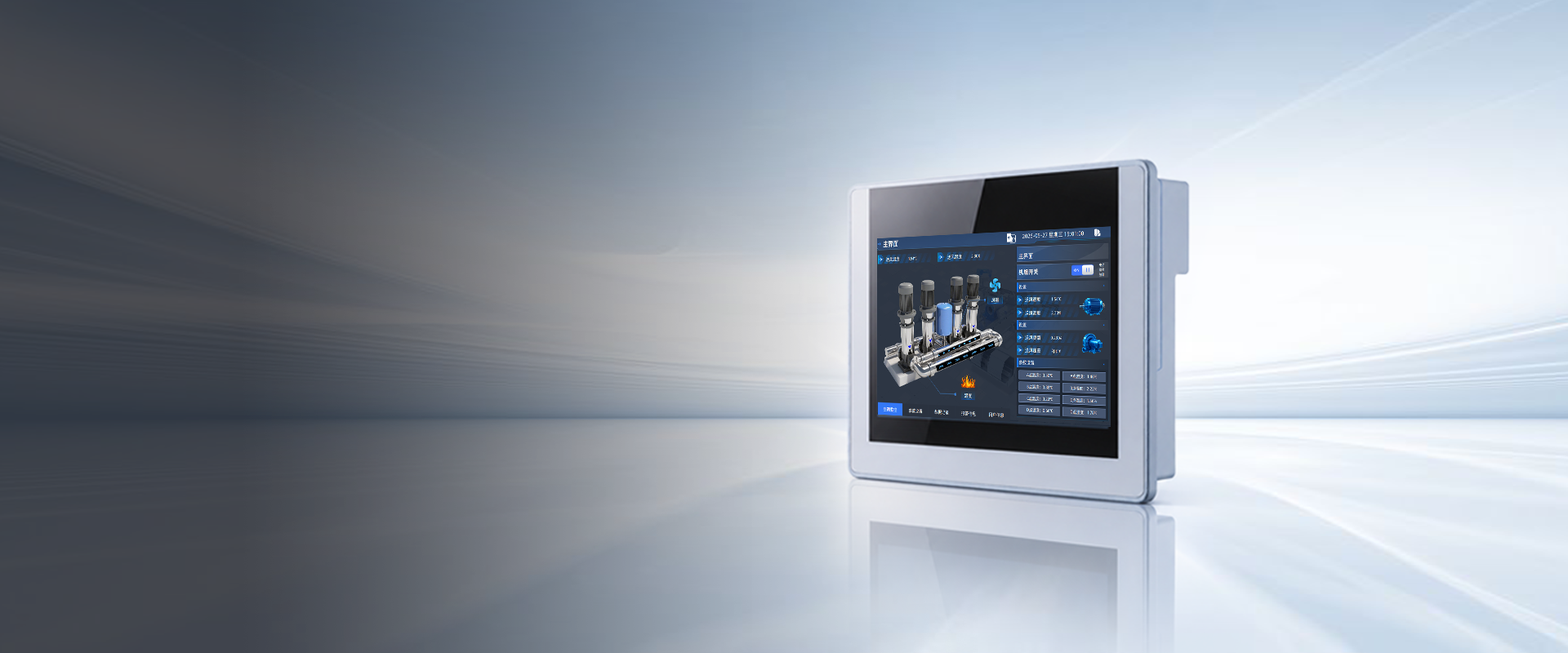

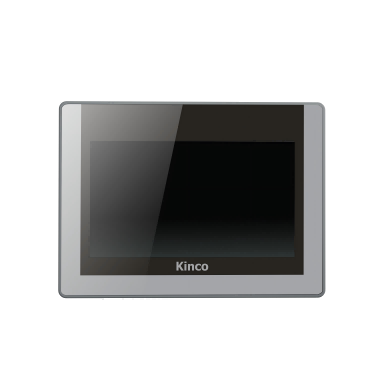

GK Series Integrated Controller
Redefine the intelligent control experience of all-in-one machines
GK Series Integrated Controller

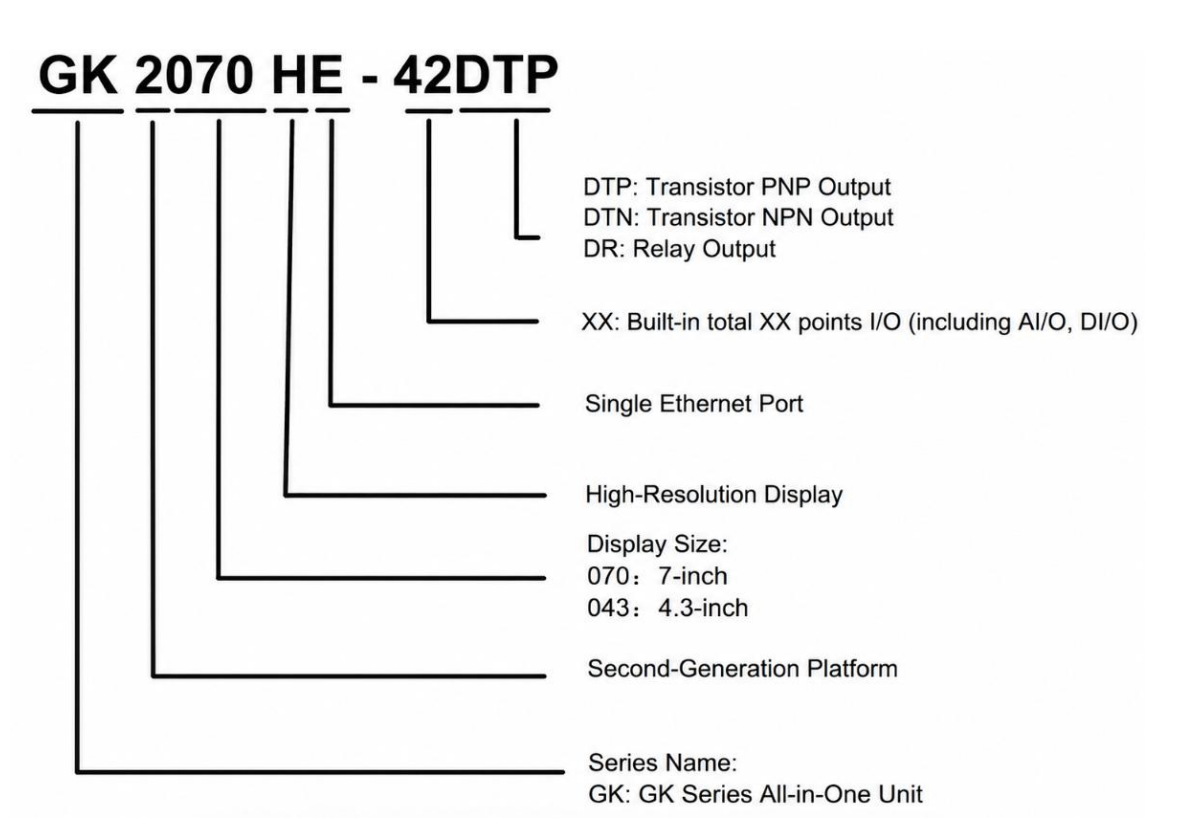

Product Model
GK2070HE-42DTP
Add comparison
Cancel comparison
Slide to display more
PLC-I/O Specifications
Fold up
Expand
Digital Input Channels
24 channels,supports NPN/PNP
Digital Output Channels
16 Channels,Transistor-Type,supports PNP
Input Voltage
DC 24 V,Maximum Allowable:DC 30 V
Input Impedance
5.6k
Maximum Input Voltage for Logic "0"
5V，0.8mA
Minimum Input Voltage for Logic "1"
15V，2mA
Input Delay Time
Turn-on delay:Standard channels <50㎲,high-speed channels <2.5㎲
Turn-off delay:Standard channels <50㎲,high-speed channels <2.5㎲
Isolation Method
Digital Isolation,AC 500V/1Min.
Output Current per Channel (Transistor Type)
Maximum 500mA（24V DC±10%）
Output Leakage Current (Transistor Type)
Maximum 100μA
Output Impedance (Transistor Type)
Maximum 0.3Ω
Output Delay Time (Transistor Type)
<100uS
Output Load
Resistive load:12W per point,120W per module
Inductive load:6W per point,60W per module
Lamp load:5W per point,50W per module
Protection Functions (Transistor Output Type)
Inductive Load Output Protection
Short-Circuit Protection
Overheat Protection
Reverse Power Connection Protection
Isolation Method (Transistor Output Type)
Digital Isolation,AC 500V/1Min.
Analog Input Channels
2 Channels
Analog Resolution
16 Bits
Analog Signal Type
4-20mA/1-5V/0-20mA/0-10V
Measurement Accuracy
0.2% F.S.
Analog Conversion Rate (per Channel)
30 Times/s
Analog Input Impedance
Current Mode:100Ω
Voltage Mode:50KΩ
Expansion Board
2Expansion slots
EXP0：DI/DT/AI/AO/XR/TC/RD/COM
EXP1：DI/DT/AI/AO/XR/TC/RD/CAN
HSC Channels
4 Channels
Supports Quadrature(A/B Phase) Pulse Input
Maximum Counting Frequency:200 kHz
PWM Channels
4 Channels
Edge Interrupt
4 Channels,I0.0–I0.3 Individually Configurable as Rising Edge or Falling Edge Interrupt
PLC-Program Storage
Fold up
Expand
Program Memory
60kb
Data Memory
20 KB (including 4 KB for power-off retention)
PLC-Communication Port
Fold up
Expand
Programming Interface
RS485/HMI Pass-through/Ethernet
Ethernet
10M/100M adaptive(shared display and control,independent IP)
RS485
1*RS485(PORT1)，Max. communication rate up to 115.2kbps,isolated
Supports Modbus RTU master/slave and free protocol communication
Electrical Specifications
Fold up
Expand
Rated Input Voltage
DC 24V ±20%（19.2V~28.8V）
Rated Power
10W
Power Protection
Short-Circuit Protection
Reverse Polarity Protection
Surge Protection
HMI-Display Specifications
Fold up
Expand
Touch Screen
7" TFT
Resolution
1024*600
Display Color
16.77M
Brightness
450cd/m²
Backlight
LED
Touch Panel
4-Wire
Precision Resistor Network
Backlight life
＞30000h
CPU
Dual-core A7 1GHz
Ethernet
10M/100M adaptive(shared display and control,independent IP)
Storage
Dual-core A7 1GHz CPU+256MB RAM
Recipe Storage
Built-in real-time clock
RTC
Built-in Real-Time Clock,Accuracy:Less than 3 Minutes per Month at 25℃
Expansion Storage
1*USB HOST(USB-A)
Program Download
Ethernet/USB SLAVE(USB-C)/USB HOST(USB-A)
Printer Port
USB HOST(USB-A)
Structural Specifications
Fold up
Expand
Outer Dimensions
204*150*52.4mm
Installation Dimensions
192*138mm
Weight
≈614g
Compatible Software
Fold up
Expand
HMI-Configuration Software
Kinco DToolsPro
PLC-Programming Software
KincoBuilderPro
Transportation and Storage
Fold up
Expand
Climatic Conditions
Ambient temperature:-20~+60℃
Relative humidity:10%~95%,no condensation
Atmospheric pressure:equivalent to an altitude of 0~3000 meters
Mechanical Conditions
Free fall:With transport packaging,
allowed to fall 5 times from a height of 1 meter onto a cement floor
Operating Conditions
Fold up
Expand
Climatic Conditions
Ambient temperature:open-type device with natural ventilation,0~+50℃
Relative humidity:10%~95%,non-condensing
Atmospheric pressure:altitude not exceeding 2000 meters
Pollution level:suitable for pollution level 2
Mechanical Conditions
Sine vibration: 5
Electromagnetic Compatibility(EMC)
Electrostatic Discharge: Air Discharge 8 kV,Contact Discharge 4 kV,Performance Criterion B
Surge: AC Power Supply: 2kV CM,1kV DM;
DC Power Supply: 0.5kV CM,0.5kV DM;
I/O and Communication Ports: 1kV CM,Performance Criterion B
Fast Transient Burst: Power Supply Coupling: 2kV,5kHz; I/O and Communication Coupling: 1kV,5kHz,Performance Criterion B
Voltage Dips: AC System,50Hz: 0% for 1 cycle,40% for 10 cycles, 75% for 20 cycles,Performance Criterion A
Product Protection
Fold up
Expand
Protection Level
IP20
Product Certification
Fold up
Expand
Certification
CE certified (testing standards: EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019)
